Tractor · 2005Unverified

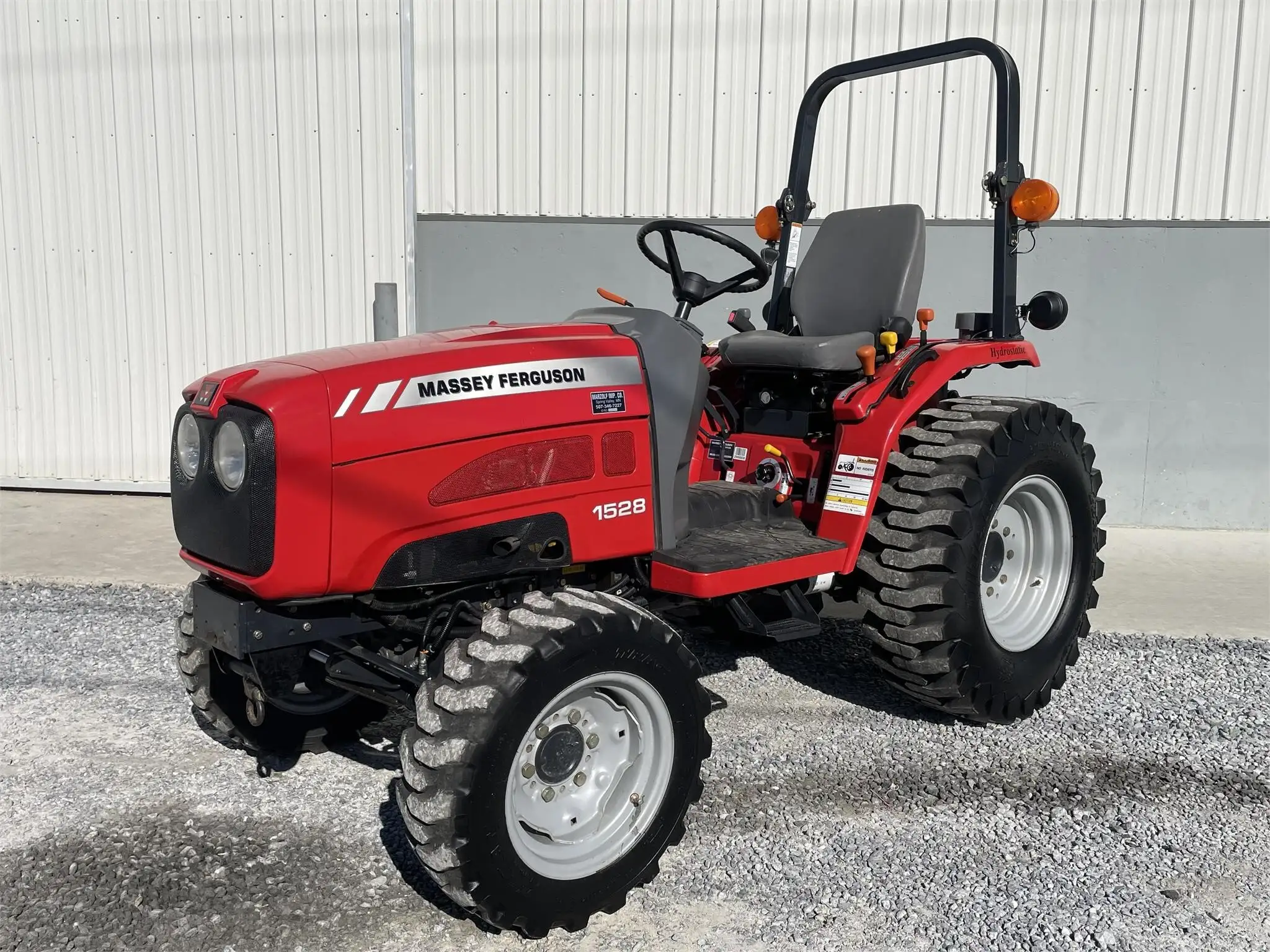

Massey Ferguson 1528

Name: Massey Ferguson 1528
Brand: Massey Ferguson

Massey Ferguson 1528 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.

The Massey Ferguson 1528 is a compact tractor with a rated output of 28 hp. It was manufactured from 2005 to 2010 and features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a hydrostatic transmission, and has a listed weight of 1099 kg. It is suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Max power

28.4 hp

Weight

1099 kg

Catalogue coverage

Variants represented

Richest spec table

121 rows

Recorded power

28 hp

Recorded weight

1099 kg

Transmissions

9-speed gear

Production years

2005-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Compact Utility tractorReference

Built in Matsuyama, JapanReference

Original price$12,783 (2009 gear )Reference

Original price$14,404 (2009 hydrostatic )Reference

Four-wheel driveReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)21.2 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke86 x 84 mmReference

Power (gross)21.2 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity3.6 LReference

Coolant capacity5.5 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,500 RPMReference

Bore and stroke3.39x3.31 inchesReference

Cooling systemliquid-cooledReference

Transmission

9-speed gearReference

hydrostaticReference

TypegearReference

Gears9 forward and 3 reverseReference

Oil capacity29.0 LReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)18.3 kWReference

Hydro PTO (claimed)16.6 kWReference

Typeopen centerReference

Valves2Reference

Pump flow28.0 lpmReference

Total flow37.9 lpmReference

Steering flow9.8 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1099 kgReference

Gear Rear PTOliveReference

Hydro Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase166 cmReference

Weight1099 kgReference

Front tire7x14Reference

Rear tire9.5x24Reference

Standard tires (ag)Front: 7x14. Rear: 9.5x24Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear36x13.5-15Reference

Industrial front25x8.50-14Reference

Industrial rear12.50/80-18Reference

Length285 cmReference

Width135 cmReference

Height204 cmReference

Ground clearance25 cmReference

Front tread100 cmReference

Rear tread95 cmReference

Shipping1099 kgReference

Max front axle874 kgReference

Max rear axle1005 kgReference

Massey Ferguson 1528 attachments

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery CCA582Reference

Battery volts12Reference

Total cold cranking amps582 CCAReference

Attachment overview

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

Massey Ferguson 1570 Backhoe

Backhoe typeMassey Ferguson 1570 BackhoeReference

Digging depth198 cmReference

Reach from pivot259 cmReference

Swing Arc180°Reference

Bucket force1088 kgReference

Dipperstick force657 kgReference

Capacities

Max capacity1880 kgReference

Capacity89.3 ciReference

Crankcase oil volume3.8 qtsReference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rear tread spacing95.5 cmReference

Rollover protective structureTwo-post folding ROPS.Reference

Country of manufacturerJapanReference

Power

Max Power28.4 hpReference

PTO

PTO Power24.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Hydraulics

Pump Rated Output (total)10 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 ValvesReference

Steering & Implements flow2.6 gpm (7.4 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,100 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Height205 cmReference

Overall Length285.5 cmReference

Overall Width135.9 cmReference

Overall weight1,099.1 kgReference

Wheels & tyres

Rear Wheel Type9.5x24Reference

Front Wheel Type7x15Reference

Front Wheel tread range100.6 cmReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
