Tractor · 1973Unverified

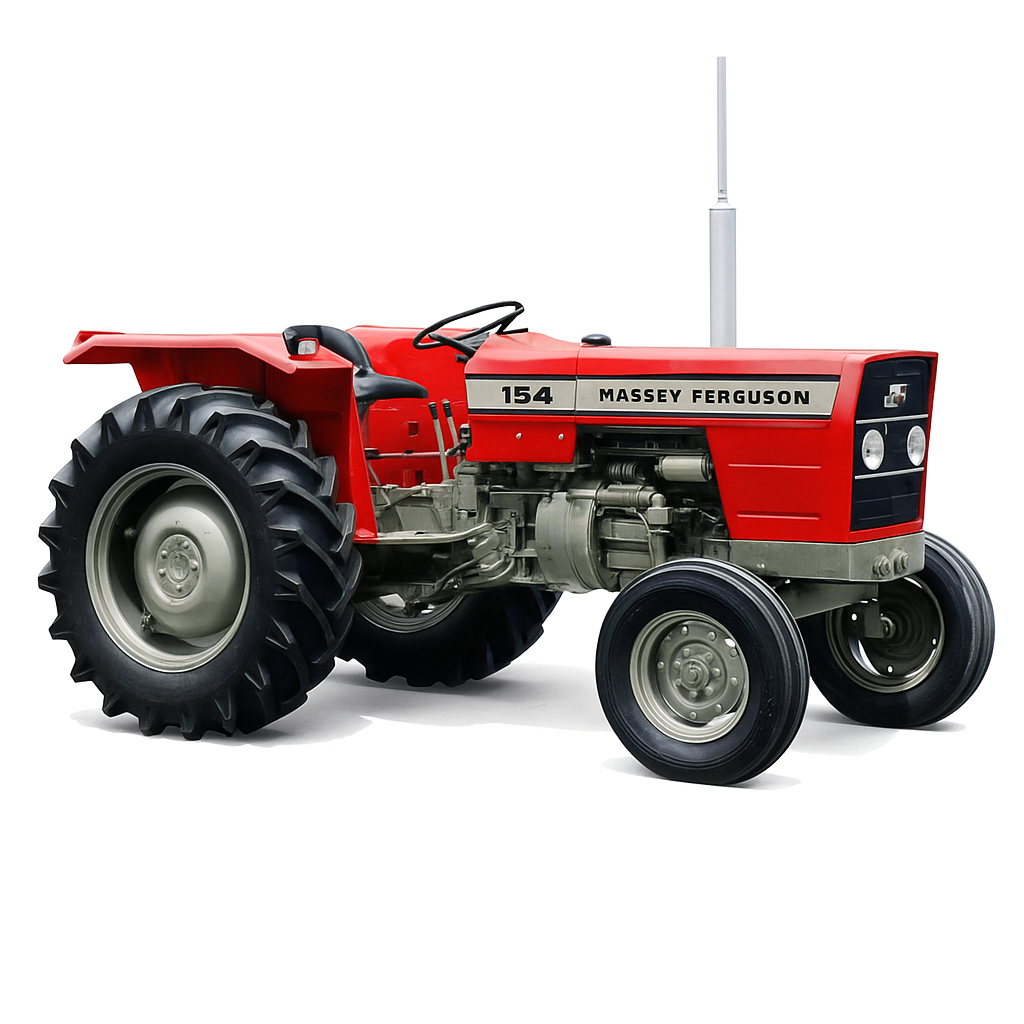

Massey Ferguson 154
Massey Ferguson 154 — 104 Series · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2059 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Utility tractorReference
Built in ItalyReference
Two-wheel driveReference
Differential lockmechanical rearReference
SteeringmechanicalReference
Steeringhydrostatic powerReference
Dry disc brakesReference
Open operator station. Cab optional.Reference
Variants
1542WDReference
154-44WDReference
5500similar Landini modelReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank60.6 LReference
Engine37.3 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power37.3 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17.4:1Reference
Rated RPM2200Reference
Idle RPM650-2390Reference
Torque171.7 NmReference
Torque RPM1350Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity10.4 LReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Typeopen centerReference
Pump flow28.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2649 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1916Reference
Dimensions
Wheelbase208 cmReference
Weight2059 kgReference
Front tire6.00-16Reference
Rear tire13.6/12-28Reference
Standard tires (ag)Front: 6.00-16. Rear: 13.6/12-28Reference
Optional tires (ag)Front: 6.50-16. Rear: 14.9/13-28Reference
Optional tires (ag)Front: 6.50-16. Rear: 12.4/11-32Reference
Length352 cmReference
Width153 cmReference
Clearance (front axle)45 cmReference
Front tread130 to 180 cmReference
Rear tread119 to 189 cmReference
Steering wheel155 cmReference
154 Serial Number Location
Serial number stamped into the rear of the tractor, above and to the left of the PTO shaft.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Battery volts12Reference
Battery AH100Reference
Massey Ferguson 154 Height
Hood136 cmReference
ROPS223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
