Tractor · 1980Unverified

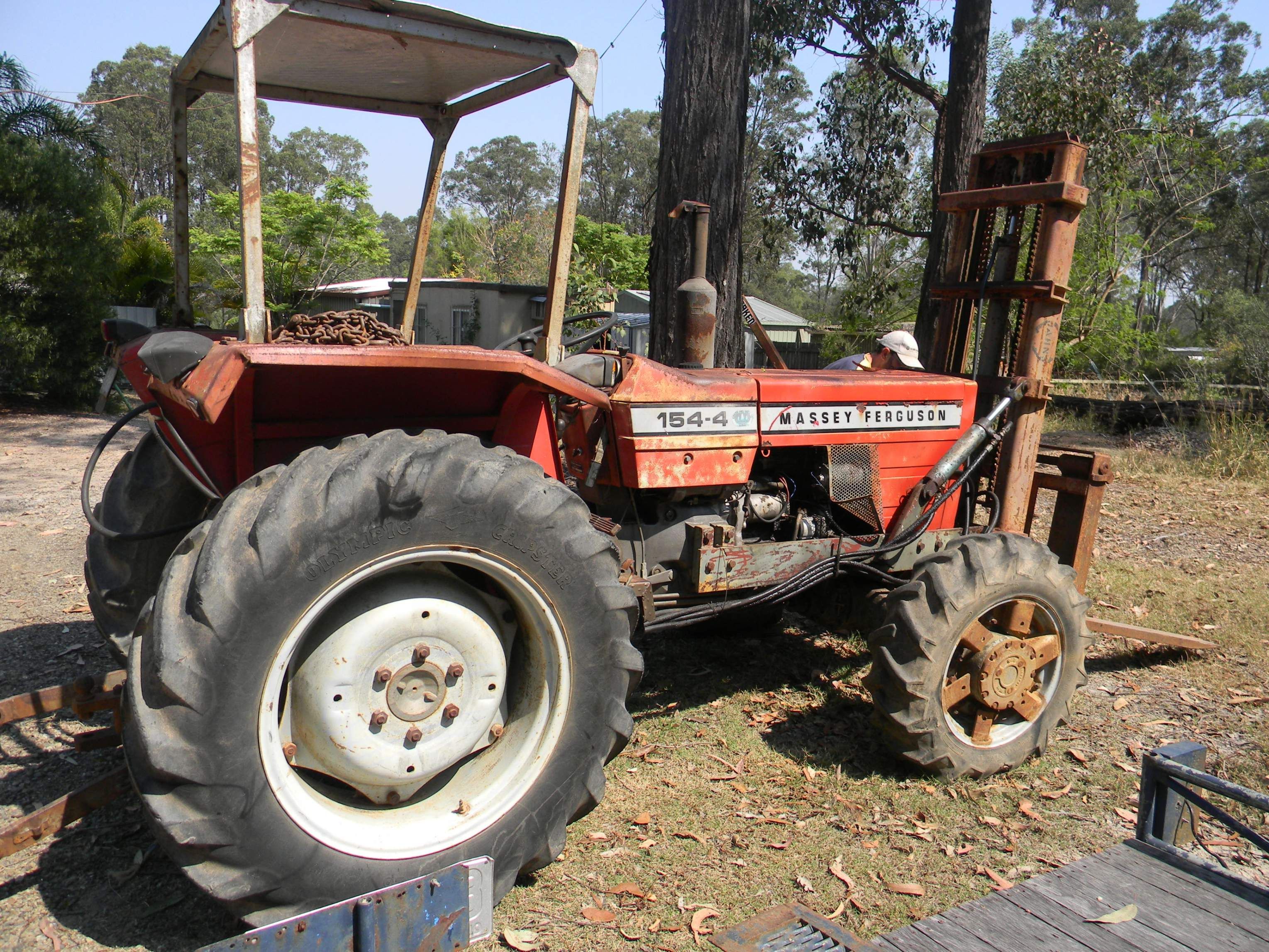

Massey Ferguson 154-4
Massey Ferguson 154-4 — 104 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Max power
26.5 kW
Weight
2347 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Utility tractorReference
Built in ItalyReference
Original price was $18,700 in 1981Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry disc brakesReference
Open operator station. Cab optional.Reference
Variants
1542WDReference
154-44WDReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank60.6 LReference
Engine37.3 kWReference
Drawbar (tested)26.5 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power37.3 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17.4:1Reference
Rated RPM2200Reference
Idle RPM650-2390Reference
Torque171.7 NmReference
Torque RPM1350Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity10.4 LReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
Power at rated engine speed31.7 kWReference
Max power26.5 kWReference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
PTO (tested)31.7 kWReference
Typeopen centerReference
Pump flow28.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2649 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1916Reference
Power at rated PTO speed30.1 kWReference
Dimensions
Wheelbase205 cmReference
Weight2347 kgReference
Front tire9.5/9-20Reference
Rear tire13.6/12-28Reference
Standard tires (ag)Front: 9.5/9-20. Rear: 13.6/12-28Reference
Optional tires (ag)Front: 8.3/8-24. Rear: 14.9/13-28Reference
Optional tires (ag)Front: 8.3/8-24. Rear: 12.4/11-32Reference
Length355 cmReference
Width153 cmReference
Operating weight2347 kgReference
Ballasted weight3138 kgReference
Clearance (front axle)30 cmReference
Front tread150 cmReference
Rear tread119 to 189 cmReference
Steering wheel155 cmReference
154-4 Serial Number Location
Serial number stamped into the rear of the tractor, above and to the left of the PTO shaft.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Massey Ferguson 154-4 Height
Hood136 cmReference
ROPS223 cmReference
Test results
Diesel 12-speed 4WDOctober 12 - 19, 1981Link: Nebraska Tractor Test 1411 fileReference
PTO performanceReference
Fuel use9.8 l/hourReference
Fuel use8.7 l/hourReference
Drawbar performanceReference
Fuel use9.5 l/hourReference
Gear 8 used for power test.Reference
Max pull2330 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
