Tractor · 2005Unverified
Massey Ferguson 1547

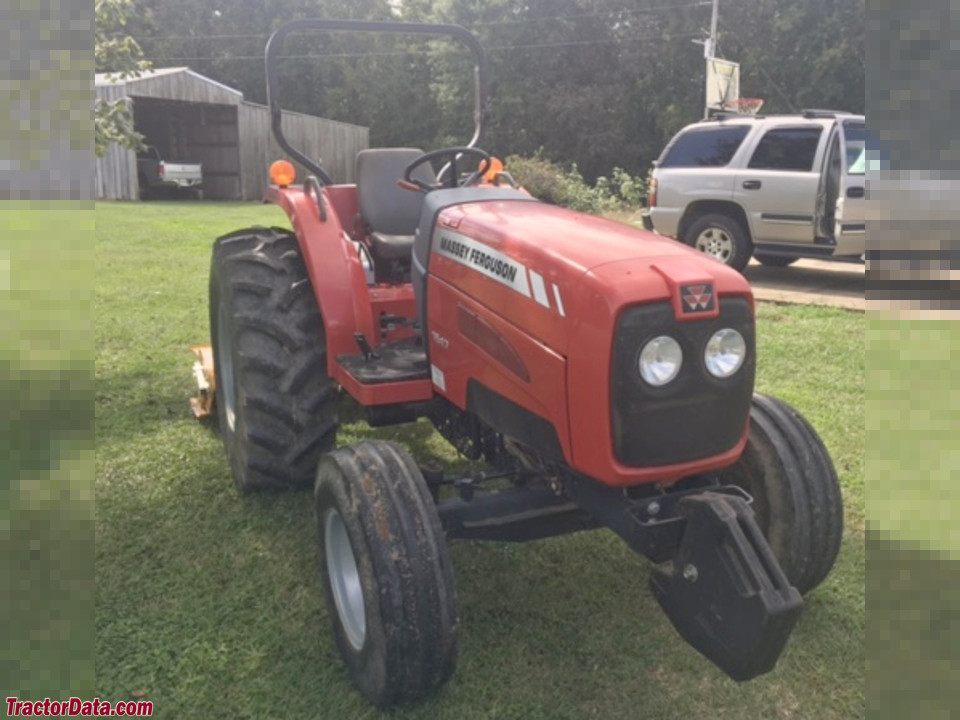

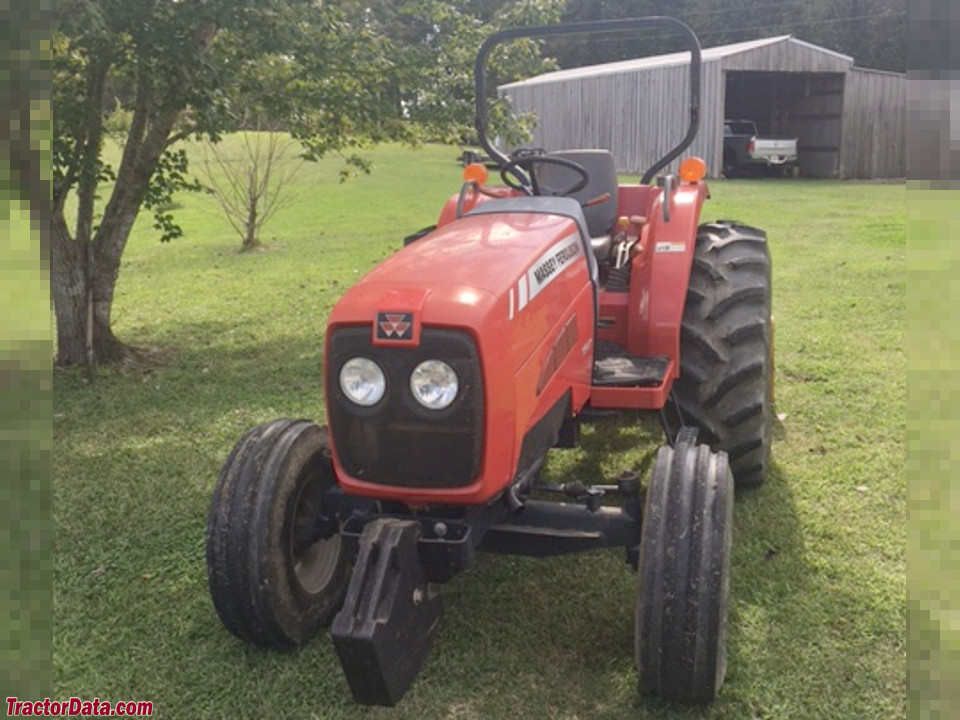

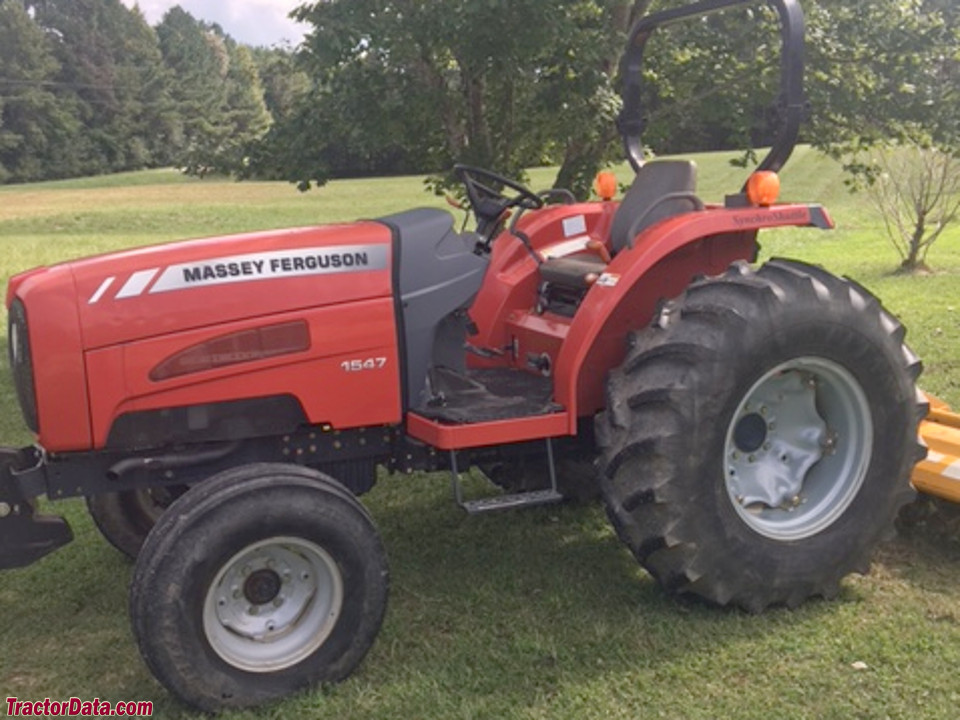

Massey Ferguson 1547 — Compact Utility tractor · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
3597 to 3957 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Two- or four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 2.2L 4-cyl dieselReference
Engine (gross)35.0 kWReference
IsekiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)35.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.0 LReference
Coolant capacity7.6 LReference
Transmission
8-speed synchro shuttleReference
hydrostaticReference
12-speed power shuttleReference
12-speed four-speed power shiftReference
Typesynchro shuttleReference
Gears8 forward and reverseReference
Oil capacity38.0 LReference
Available with platform onlyReference
TypehydrostaticReference
Gearsinfinite 3-range forward and reverseReference
Typepower shuttleReference
Gears12 forward and reverseReference
TransmissionDynaQPSReference
Typefour-speed power shiftReference
Four push-button power shift gears in three ranges, with power shuttle. Available with cab onlyReference
PTO & Hydraulics
Gear PTO (claimed)28.3 kWReference
Hydro PTO (claimed)27.2 kWReference
Typeopen centerReference
Valves2Reference
Pump flow43.9 lpmReference
Total flow62.5 lpmReference
Total flow66.6 lpmReference
Steering flow18.5 lpmReference
Steering flow22.7 lpmReference
Rear TypeIReference
Rear lift (at ends)1579 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Capacities
Fuel50.0 LReference
Front axle8.5 LReference
Max capacity3800 kgReference
Dimensions
Wheelbase190 cmReference
Weight3597 to 3957 poundsReference
Length337 cmReference
Width167 cmReference
Height230 cmReference
Ground clearance37 cmReference
Front tread134 cmReference
Rear tread130 cmReference
ROPS1631 kgReference
Cab1794 kgReference
Max front axle2100 kgReference
Max rear axle2100 kgReference
Massey Ferguson 1547 attachments
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Massey Ferguson 1575 Backhoe
Backhoe typeMassey Ferguson 1575 BackhoeReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Swing Arc180°Reference
Bucket force1474 kgReference
Dipperstick force861 kgReference
Massey Ferguson 1580 Backhoe
Backhoe typeMassey Ferguson 1580 BackhoeReference
Digging depth254 cmReference
Reach from pivot322 cmReference
Swing Arc180°Reference
Bucket force1886 kgReference
Dipperstick force1179 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
