Tractor · 1986Unverified

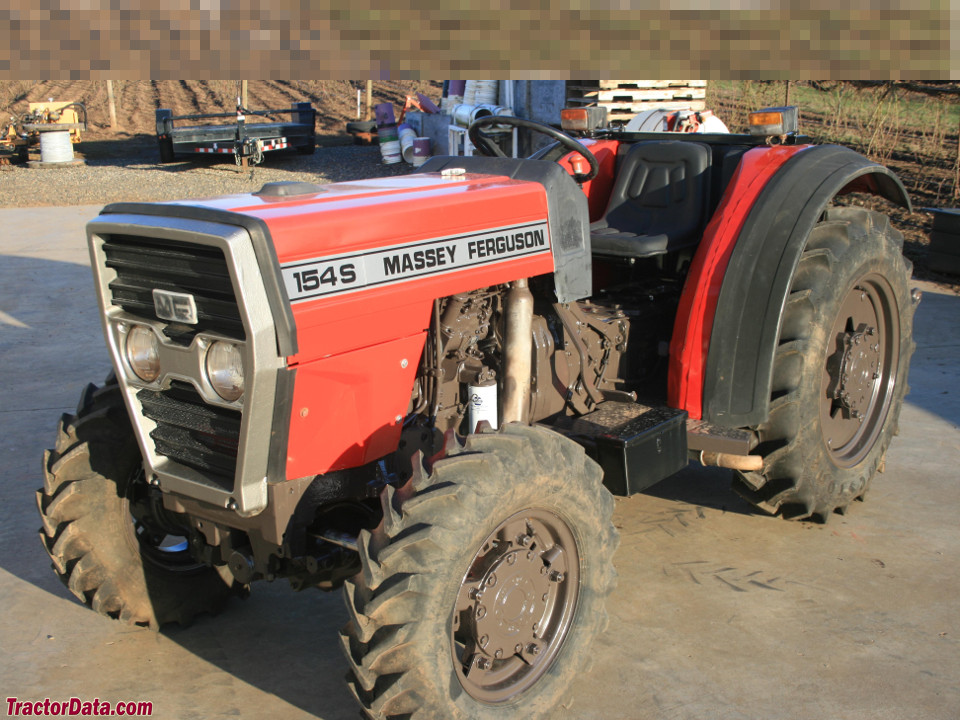

Massey Ferguson 154S
Massey Ferguson 154S — Orchard/Vineyard tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
4520 to 4830 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic disc brakesReference
Open operator's station.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Air cleanerdryReference
Pre-heatingthermostartReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Transmission
12-speed partially synchronizedReference
20-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Oil capacity37.9 LReference
Four synchronized gears in three ranges, plus reverse range.Reference
TypecreeperReference
Gears20 forward and 8 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity37.9 LReference
Rear valves1Reference
Pump flow34.8 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel53.0 LReference
Dimensions
2WD Wheelbase195 cmReference
4WD Wheelbase189 cmReference
Weight4520 to 4830 poundsReference
Front tire7.5L-15Reference
2WD Rear tire14.9-24Reference
2WD Standard tires (ag)Front: 7.5L-15. Rear: 14.9-24Reference
4WD Standard tires (ag)Front: 7.50-18. Rear: 14.9-24Reference
Length332 cmReference
Width133 cmReference
Height (steering wheel)137 cmReference
2WD Weight2050 kgReference
4WD Weight2190 kgReference
2WD Ground clearance37 cmReference
4WD Ground clearance29 cmReference
2WD Front tread108 to 148 cmReference
4WD Front tread108 to 138 cmReference
Rear tread98 to 152 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
