Tractor · 1970Unverified

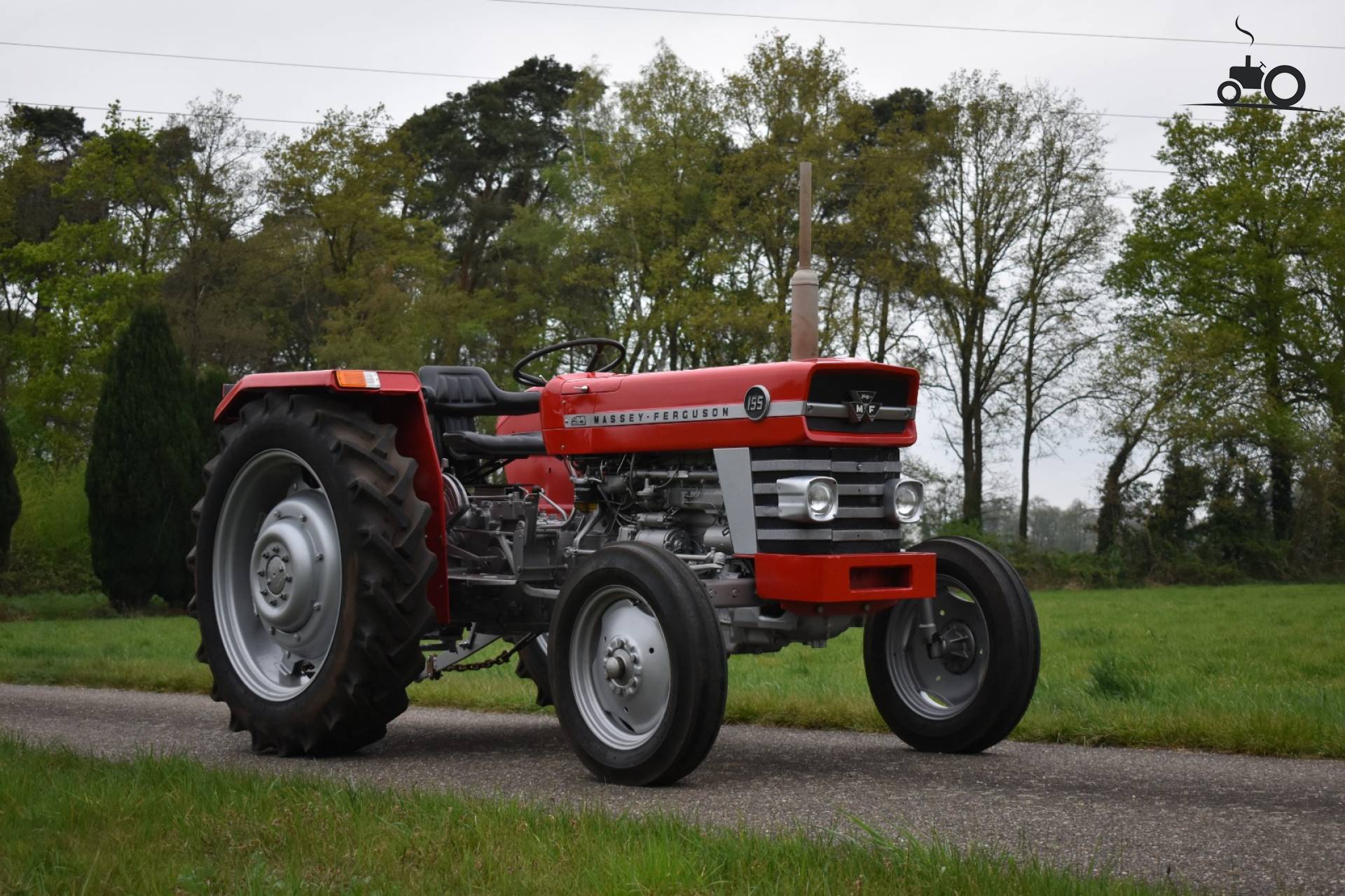

Massey Ferguson 155
Massey Ferguson 155 · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
5305 to 7270 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
The Massey Ferguson 155 was also available in narrow and high-clearance models.Reference
Two-wheel driveReference
Differential lockrear standardReference
SteeringmanualReference
Wet disc brakesReference
Open operator station.Reference
Engine
Perkins 3.3L 4-cyl dieselReference
Perkins 2.5L 3-cyl dieselReference
Engine40.3 kWReference
Perkins AD4.203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke91 x 127 mmReference
Power40.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Compression17.4:1Reference
Rated RPM2000Reference
Torque191.2 NmReference
Torque RPM1200Reference
Starter volts12Reference
Oil capacity8.0 LReference
Coolant capacity11.4 LReference
Perkins A3.152Reference
3-cylinderReference
Displacement2.5 LReference
Power33.6 kWReference
Fuel systemindirect injectionReference
Oil capacity6.4 LReference
Coolant capacity8.5 LReference
Transmission
8-speedReference
12-speedReference
Gears8 forward and 2 reverseReference
Oil capacity30.3 LReference
TransmissionMulti-PowerReference
Gears12 forward and 4 reverseReference
Capacities
Fuel68.1 LReference
PTO & Hydraulics
Hydraulic system30.3 LReference
Capacity30.3 LReference
Rear TypeII/IReference
Controldraft and position controlReference
Rear lift1433 kgReference
Rear PTOliveReference
Rear PTOindependent (optional)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1700Reference
Dimensions
Wheelbase199 cmReference
Weight5305 to 7270 poundsReference
Front tire6x16Reference
Rear tire12x28Reference
Ag front6x16Reference
Ag rear12x28Reference
Length324 cmReference
Width183 cmReference
Height (steering wheel)140 cmReference
Early Weight2406 kgReference
Late Weight3297 kgReference
Ground clearance40 cmReference
Front tread121 to 182 cmReference
Rear tread132 to 223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
