Tractor · 2005Unverified
Massey Ferguson 1560
Massey Ferguson 1560 — Compact Utility tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
4078 to 4464 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 3.0L 4-cyl dieselReference
Engine (gross)44.1 kWReference
Iseki E4DEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power (gross)44.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.0 LReference
Coolant capacity7.6 LReference
Transmission
12-speed power shuttleReference
12-speed four-speed power shiftReference
Typepower shuttleReference
Gears12 forward and reverseReference
Oil capacity43.0 LReference
TransmissionDynaQPSReference
Typefour-speed power shiftReference
Four push-button power shift gears in three ranges, with power shuttle. Available with cab onlyReference
PTO & Hydraulics
PTO (claimed)34.6 kWReference
Typeopen centerReference
Valves2Reference
Pump flow48.4 lpmReference
Total flow74.2 lpmReference
Steering flow25.7 lpmReference
Rear TypeI/IIReference
Rear lift (at ends)1700 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel50.0 LReference
Front axle8.5 LReference
Max capacity3800 kgReference
Dimensions
Wheelbase200 cmReference
Weight4078 to 4464 poundsReference
Length341 cmReference
Width177 cmReference
Height232 cmReference
Ground clearance39 cmReference
Front tread134 cmReference
Rear tread132 cmReference
ROPS1849 kgReference
Cab2024 kgReference
Max front axle2100 kgReference
Max rear axle2100 kgReference
Massey Ferguson 1560 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference

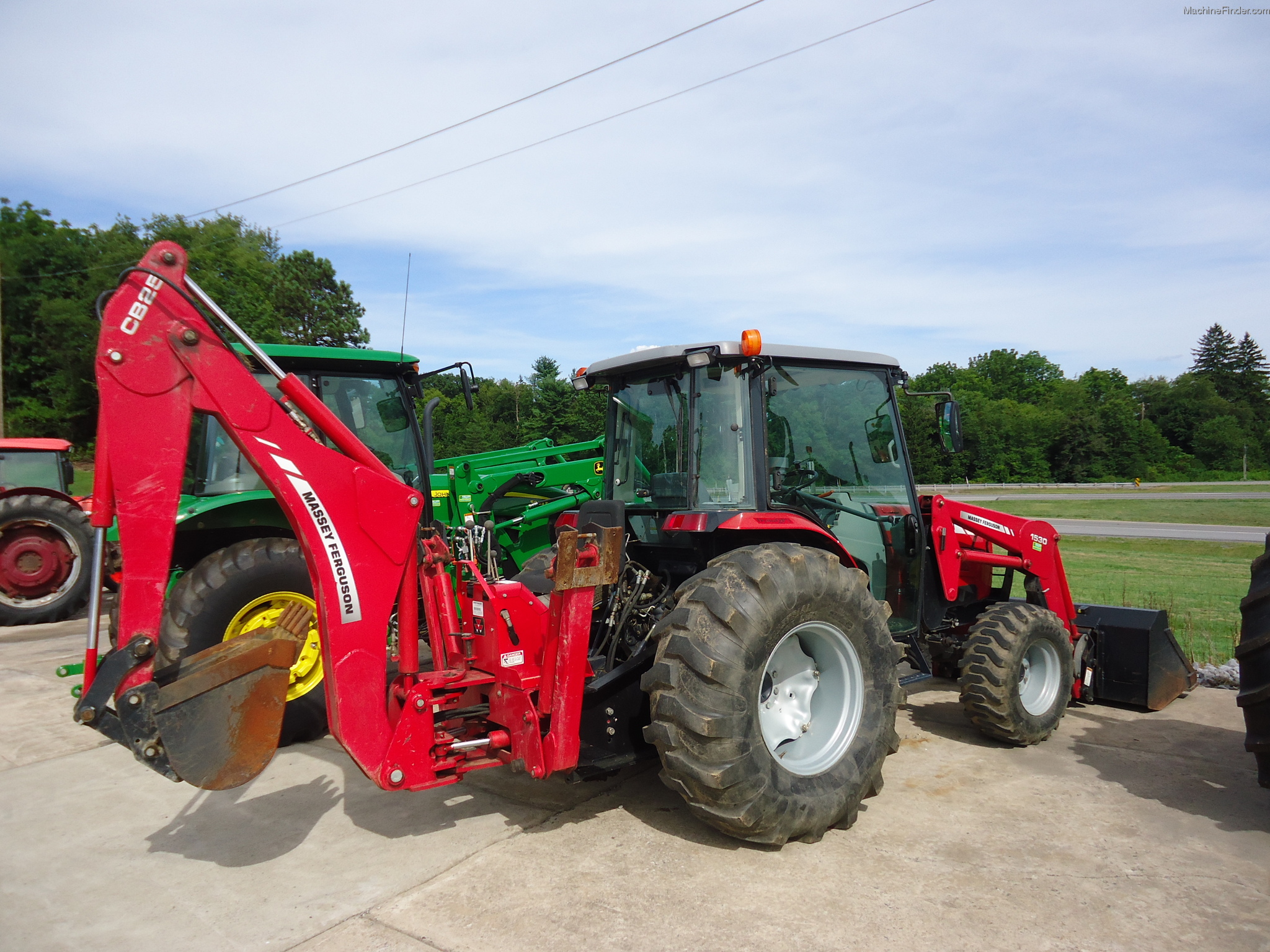

Massey Ferguson CB25 Backhoe
Backhoe typeMassey Ferguson CB25 BackhoeReference
Digging depth313 cmReference
Reach from pivot411 cmReference
Swing Arc180°Reference
Bucket force1433 kgReference
Dipperstick force1132 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
