Tractor · 2009Unverified

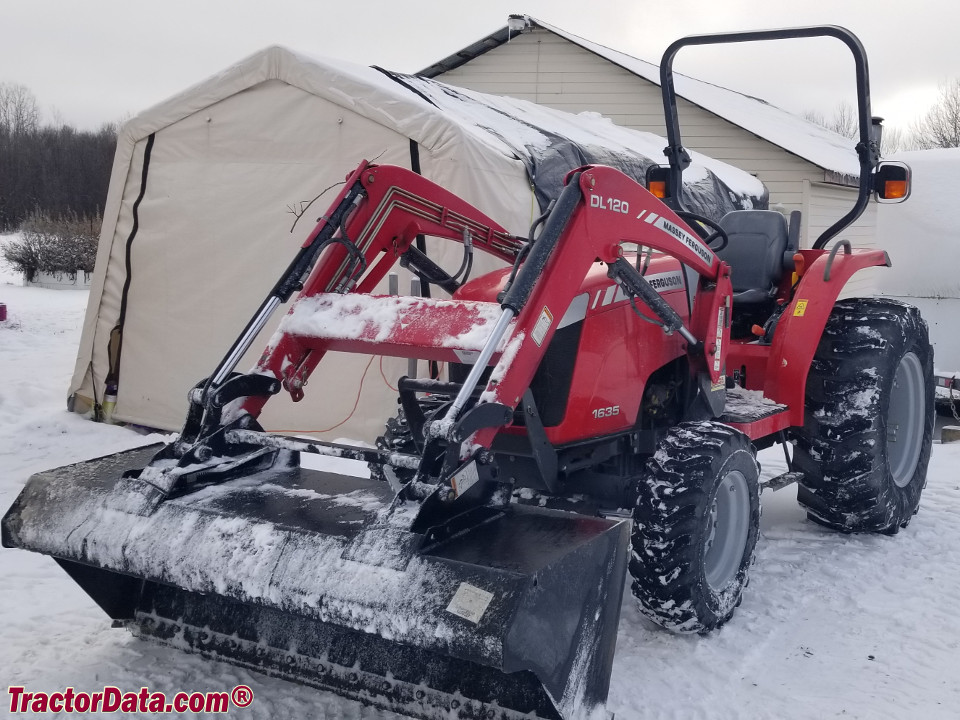

Massey Ferguson 1635
Massey Ferguson 1635 — Compact Utility tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
3175 to 3527 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Compact Utility tractorReference
Original price$17,669 (2009 shuttle ROPS )Reference
Original price$24,524 (2009 hydrostatic Cab )Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Flat operator platform with folding ROPS. Optional cab with heat and air-conditioning.Reference
Engine
Iseki 1.6L 3-cyl dieselReference
ROPS Fuel tank34.8 LReference
Cab Fuel tank39.7 LReference
Engine (gross)26.6 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
EmissionsTier IV InterimReference
Power (gross)26.6 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.3 LReference
Coolant capacity6.2 LReference
Transmission
12-speedReference
hydrostaticReference
TransmissionPowerShuttleReference
Gears12 forward and reverseReference
Oil capacity31.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)20.2 kWReference
Hydro PTO (claimed)19.2 kWReference
Typeopen centerReference
Valves0 to 3Reference
Pump flow43.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1270 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase177 cmReference
Weight3175 to 3527 poundsReference
Front tire8-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-24Reference
Optional tires (ag)Front: 8-16. Rear: 13.6-24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear41x14.00-20Reference
Lawn/turf frontLSW305 R343 LSW430Reference
Lawn/turf rearLSW610 R470 LSW430Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Industrial front25x8.5-14Reference
Industrial rear15x19.5Reference
Length309 cmReference
Width163 cmReference
Height (ROPS)254 cmReference
Height (cab)219 cmReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread119 to 149 cmReference
ROPS Shipping1440 kgReference
Cab Shipping1599 kgReference
Max front axle1799 kgReference
Max rear axle1799 kgReference
Massey Ferguson 1635 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB15 Backhoe
Backhoe typeMassey Ferguson CB15 BackhoeReference
Digging depth228 cmReference
Bucket force1474 kgReference
Dipperstick force861 kgReference
Massey Ferguson CB20 Backhoe
Backhoe typeMassey Ferguson CB20 BackhoeReference
Digging depth254 cmReference
Bucket force1886 kgReference
Dipperstick force1179 kgReference
Capacities
Max capacity3000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
