Tractor · 2009Unverified

Massey Ferguson 1643

Name: Massey Ferguson 1643
Brand: Massey Ferguson

Massey Ferguson 1643 — Compact Utility tractor · 44 hp. Reference specifications; pending source verification.

The Massey Ferguson 1643 is a tractor with a rated power output of 44 hp, situated towards the lower end of its class in terms of power. This model was manufactured from 2009 to 2013. It features a 4-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a hydrostatic transmission. The 1643 has an operating weight of 3384 to 3737 pounds, making it suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Max power

43.5 hp

Weight

3384 to 3737 pounds

Catalogue coverage

Variants represented

Richest spec table

125 rows

Recorded power

44 hp

Transmissions

8-speed

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Compact Utility tractorReference

Original price$19,296 (2009 SyncroShuttle ROPS )Reference

Original price$27,093 (2009 hydrostatic Cab )Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Flat operator platform with folding ROPS. Optional cab with heat and air-conditioning.Reference

Engine

Iseki 2.2L 4-cyl dieselReference

Fuel tank50.0 LReference

Engine (gross)32.4 kWReference

Engine (net)30.9 kWReference

IsekiReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

EmissionsTier IV InterimReference

Power (net)30.9 kWReference

Power (gross)32.4 kWReference

Air cleanerdryReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity8.0 LReference

Coolant capacity7.6 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IV InterimReference

Cooling systemliquid-cooledReference

Transmission

8-speedReference

12-speedReference

hydrostaticReference

TransmissionSynchroShuttleReference

Gears8 forward and reverseReference

Oil capacity31.0 LReference

TransmissionPowerShuttleReference

Gears12 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeHSTReference

forward and reverse optionsPowerShuttle 12F and 12R | SynchroShuttle 8F and 8RReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)25.6 kWReference

Hydro PTO (claimed)24.7 kWReference

Typeopen centerReference

Valves0 to 3Reference

Pump flow43.9 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1270 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase180 cmReference

Weight3384 to 3737 poundsReference

Front tire8-16Reference

Rear tire12.4-24Reference

Standard tires (ag)Front: 8-16. Rear: 12.4-24Reference

Optional tires (ag)Front: 8-16. Rear: 13.6-24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front10-16.5Reference

Industrial rear14.9-24Reference

Industrial front25x8.5-14Reference

Industrial rear15x19.5Reference

Length309 cmReference

Width163 cmReference

Height (ROPS)262 cmReference

Height (cab)240 cmReference

Ground clearance36 cmReference

Front tread116 cmReference

Rear tread126 to 146 cmReference

ROPS Shipping1534 kgReference

Cab Shipping1695 kgReference

Max front axle1799 kgReference

Max rear axle1799 kgReference

Massey Ferguson 1643 attachments

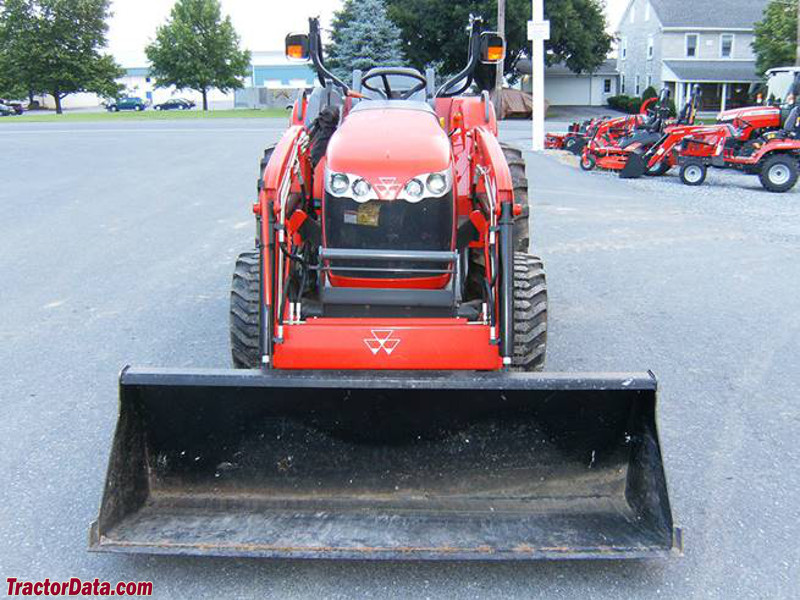

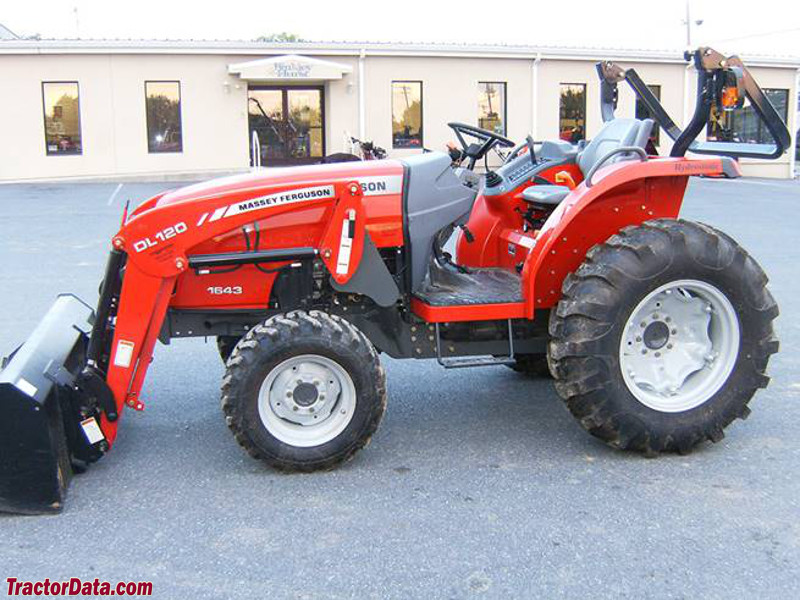

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Massey Ferguson CB15 Backhoe

Backhoe typeMassey Ferguson CB15 BackhoeReference

Digging depth228 cmReference

Bucket force1474 kgReference

Dipperstick force861 kgReference

Massey Ferguson CB20 Backhoe

Backhoe typeMassey Ferguson CB20 BackhoeReference

Digging depth254 cmReference

Bucket force1886 kgReference

Dipperstick force1179 kgReference

Capacities

Max capacity3000 kgReference

Capacity134.1 ciReference

Crankcase oil volume8.5 qtsReference

General

Make & ModelMassey FergusonReference

SCV controlJoystickReference

Rear tread spacing49.8 to 57.7 inchesReference

Rollover protective structureFlat operator platform with folding ROPS.Reference

Power

Max Power43.5 hpReference

Rated Power41.4 hpReference

PTO

PTO Power34.3 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves0 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,270.1 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over Cab240 cmReference

Height Over ROPS262.4 cmReference

Overall Length309.9 cmReference

Overall Width163.8 cmReference

Overall weight1,535 kgReference

Wheels & tyres

Rear Wheel Type12.4-24Reference

Front Wheel Type45,520Reference

Front Wheel tread range116.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
