Tractor · 2009Unverified

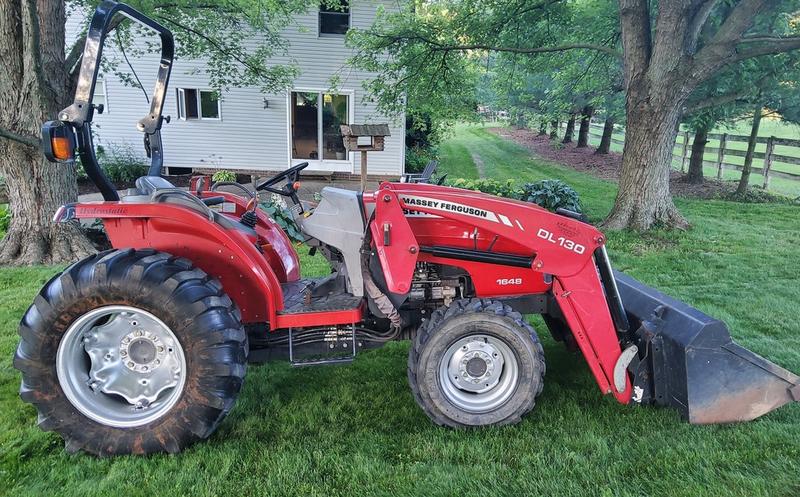

Massey Ferguson 1648
Massey Ferguson 1648 — Compact Utility tractor · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
3715 to 4068 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Compact Utility tractorReference
Original price$21,614 (2009 SyncShuttle ROPS )Reference
Original price$29,165 (2009 Hydrostatic Cab )Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Flat operator platform with folding ROPS. Optional cab with heat and air-conditioning.Reference
Engine
Iseki 2.2L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine (gross)35.1 kWReference
Engine (net)34.3 kWReference
IsekiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
EmissionsTier IV InterimReference
Power (net)34.3 kWReference
Power (gross)35.1 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.0 LReference
Coolant capacity7.6 LReference
Transmission
8-speedReference
12-speedReference
hydrostaticReference
TransmissionSynchroShuttleReference
Gears8 forward and reverseReference
Oil capacity38.0 LReference
Synchronized forward-reverse shuttle shift using clutch. Available only on platform models.Reference
TransmissionPowerShuttleReference
Gears12 forward and reverseReference
Available only on platform models.Reference
TransmissionDynaQPSReference
The DynaQPS tranmission provides partial power shift in addition to a power shuttle. Three ranges, with four power shifts in each range. DynaQPS available only on cab-equipped models.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)28.3 kWReference
Hydro PTO (claimed)27.2 kWReference
Typeopen centerReference
Valves0 to 3Reference
Pump flow43.9 lpmReference
Steering flow18.5 lpmReference
Steering flow22.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1579 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase189 cmReference
Weight3715 to 4068 poundsReference
Front tire9.5x16Reference
Rear tire13.6x28Reference
Standard tires (ag)Front: 9.5x16. Rear: 13.6x28Reference
Optional tires (ag)Front: 9.5x16. Rear: 16.9x24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Lawn/turf front27x12LL-16Reference
Lawn/turf rearLSW570x648Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Industrial rear14.9-24Reference
Length337 cmReference
Width170 cmReference
Height (ROPS)261 cmReference
Height (cab)229 cmReference
Ground clearance37 cmReference
Front tread138 cmReference
Rear tread133 to 164 cmReference
ROPS Shipping1685 kgReference
Cab Shipping1845 kgReference
Max front axle2100 kgReference
Max rear axle2100 kgReference
Massey Ferguson 1648 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB15 Backhoe
Backhoe typeMassey Ferguson CB15 BackhoeReference
Digging depth228 cmReference
Bucket force1474 kgReference
Dipperstick force861 kgReference
Massey Ferguson CB20 Backhoe
Backhoe typeMassey Ferguson CB20 BackhoeReference
Digging depth254 cmReference
Bucket force1886 kgReference
Dipperstick force1179 kgReference
Capacities
Max capacity3800 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
