Tractor · 1972Unverified

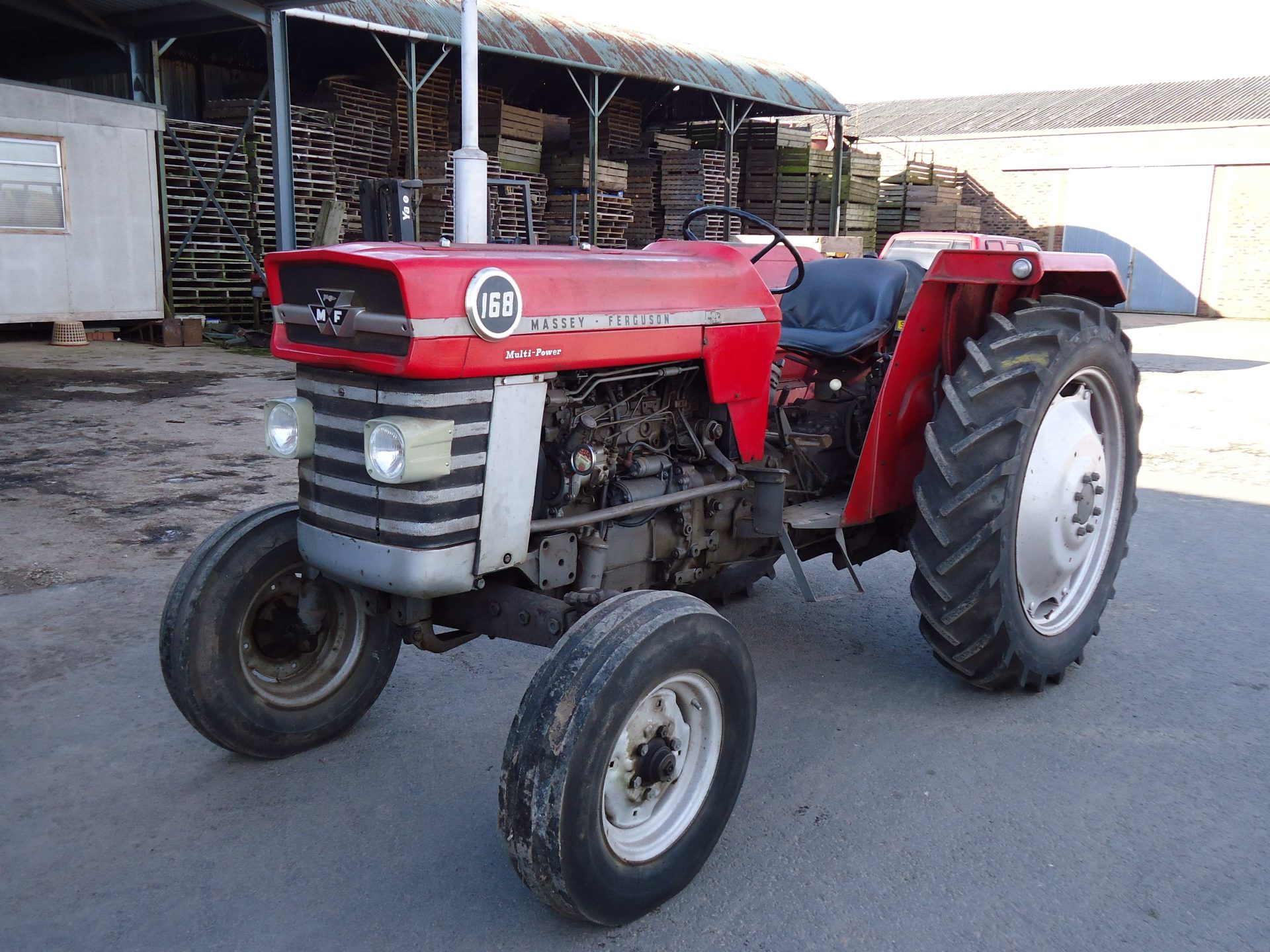

Massey Ferguson 168
Massey Ferguson 168 — Row-Crop tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2207 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Open operator station. Cab optional.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine51.5 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 122 mmReference
Power51.5 kWReference
Compression16:1Reference
Rated RPM2000Reference
Torque271.2 NmReference
Torque RPM1250Reference
Starter volts12Reference
Oil capacity7.9 LReference
Coolant capacity13.6 LReference
Transmission
8-speedReference
12-speedReference
Gears8 forward and 2 reverseReference
Oil capacity29.6 LReference
TransmissionMulti PowerReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)44.0 kWReference
Hydraulic system29.5 LReference
Capacity29.5 LReference
Rear TypeII/IReference
Rear lift1814 kgReference
Rear PTOliveReference
Rear PTOindependent (with Multi Power)Reference
Rear PTO Type540Reference
Capacities
Fuel79.5 LReference
Dimensions
Wheelbase222 cmReference
Weight2207 kgReference
Front tire7.5x16Reference
Rear tire13.6/12x36Reference
Ag front7.5x16Reference
Ag rear13.6/12x36Reference
Length350 cmReference
Width182 cmReference
Height168 cmReference
Ground clearance33 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
