Tractor · 2020Unverified

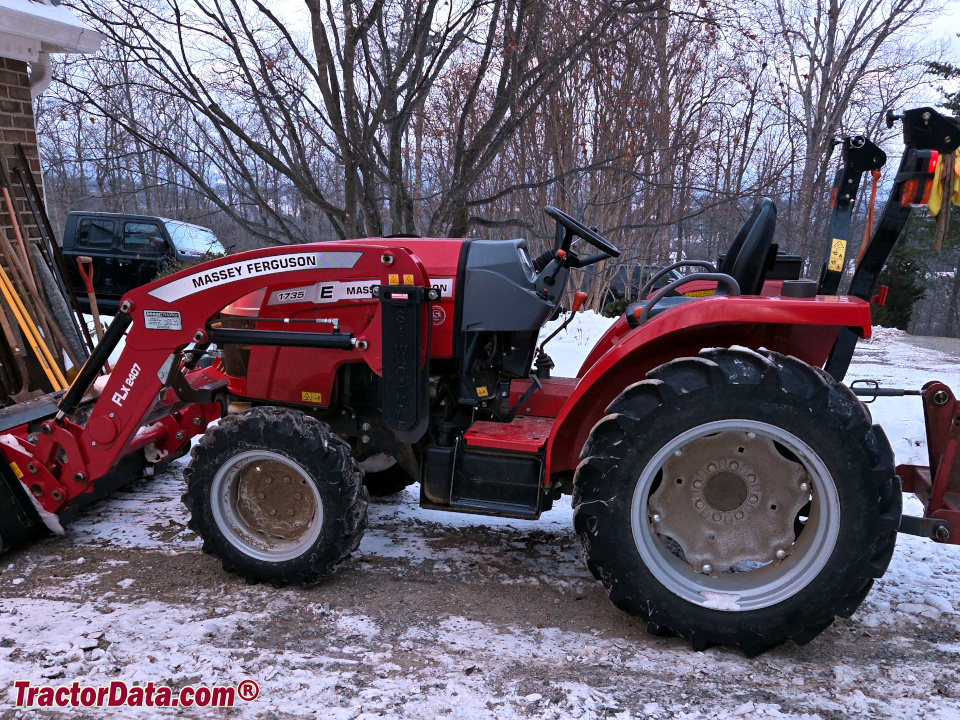

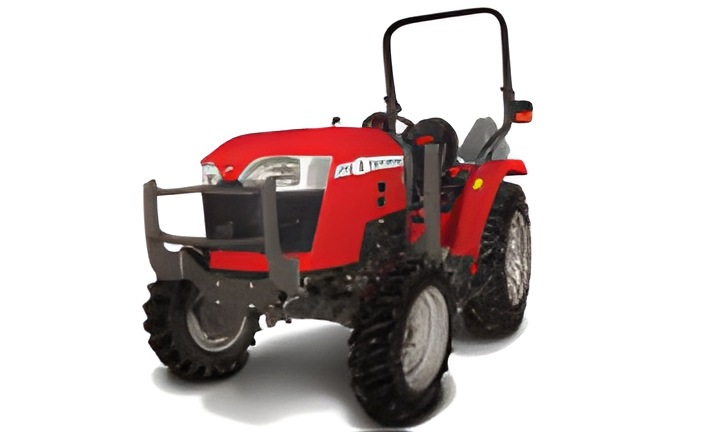

Massey Ferguson 1735E
Massey Ferguson 1735E — Compact Utility tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Original price$18,107 (2020 )Reference
Original price$18,968 (2020 )Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 1.5L 3-cyl dieselReference
Engine25.4 kWReference
ShibauraReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 90 mmReference
EmissionsTier IVReference
Power25.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
hydrostaticReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)21.6 kWReference
Hydro PTO (claimed)20.3 kWReference
Typeopen centerReference
Pump flow25.4 lpmReference
Total flow39.7 lpmReference
Steering flow14.4 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)724 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Industrial front27x8.50-15Reference
Industrial rear15-19.5Reference
Massey Ferguson 1735E attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson BH3222 Backhoe
Backhoe typeMassey Ferguson BH3222 BackhoeReference
Transport height216 cmReference
Digging depth221 cmReference
Reach from pivot322 cmReference
Loading height188 cmReference
Bucket Rotation185°Reference
Swing Arc180°Reference
Bucket force1460 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
