Massey Ferguson 1735M
Massey Ferguson 1735M — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
3373 to 3781 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Original price was $23,518 in 2019Reference
Four-wheel driveReference
Final drivesbull gearReference
Differential lockrear standardReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Shibaura 1.7L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine27.0 kWReference
Shibaura N3LDI-TReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier IVReference
Emission controlexhaust-gas recirculation and diesel oxidation catalystReference
Power27.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
hydrostaticReference
ROPS gear1529 kgReference
Cab gear1705 kgReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four synchronized gears in three ranges with power shuttle.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)20.5 kWReference
Hydro PTO (claimed)19.7 kWReference
Typeopen centerReference
Rear valves3Reference
Pump flow45.8 lpmReference

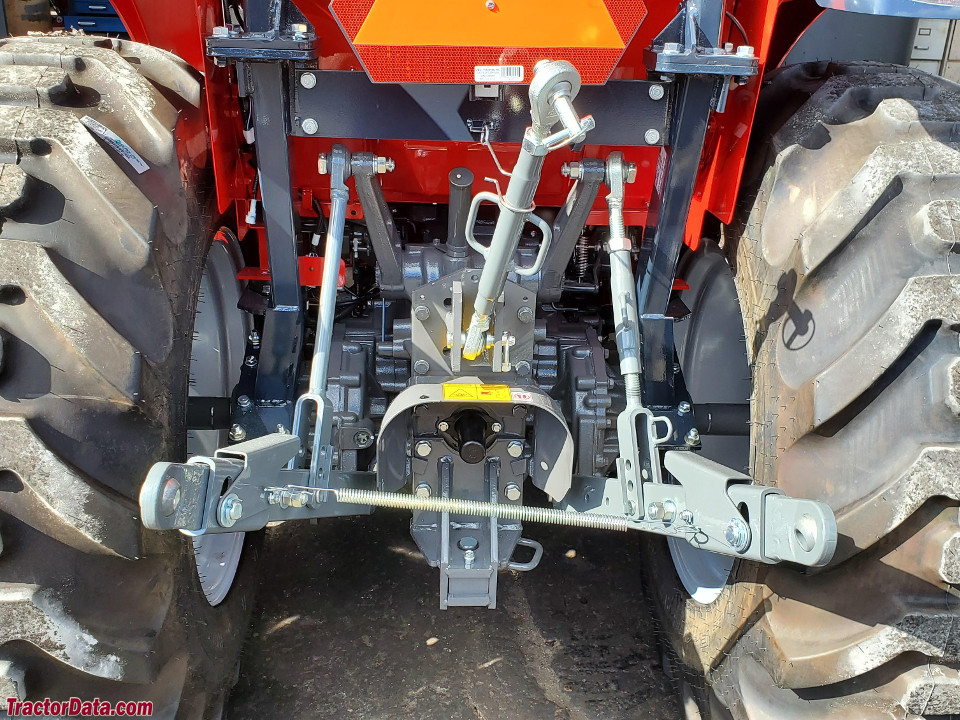

Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1149 kgReference
Rear Armstelescopic draft link endsReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type1916Reference
Dimensions
Wheelbase177 cmReference
Weight3373 to 3781 poundsReference
Front tire8-16Reference
Rear tire12.4x24Reference
Weight368 kgReference
Standard tires (ag)Front: 8-16. Rear: 12.4x24Reference
Optional tires (ag)Front: 8-16. Rear: 13.6x24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear41x14.00-20Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Industrial front25x8.5-14Reference
Industrial rear15x19.5-6Reference
Length309 cmReference
Width163 cmReference
Height (ROPS)251 cmReference
Height (cab)231 cmReference
ROPS hydro1544 kgReference
Cab hydro1715 kgReference
Massey Ferguson 1735M attachments

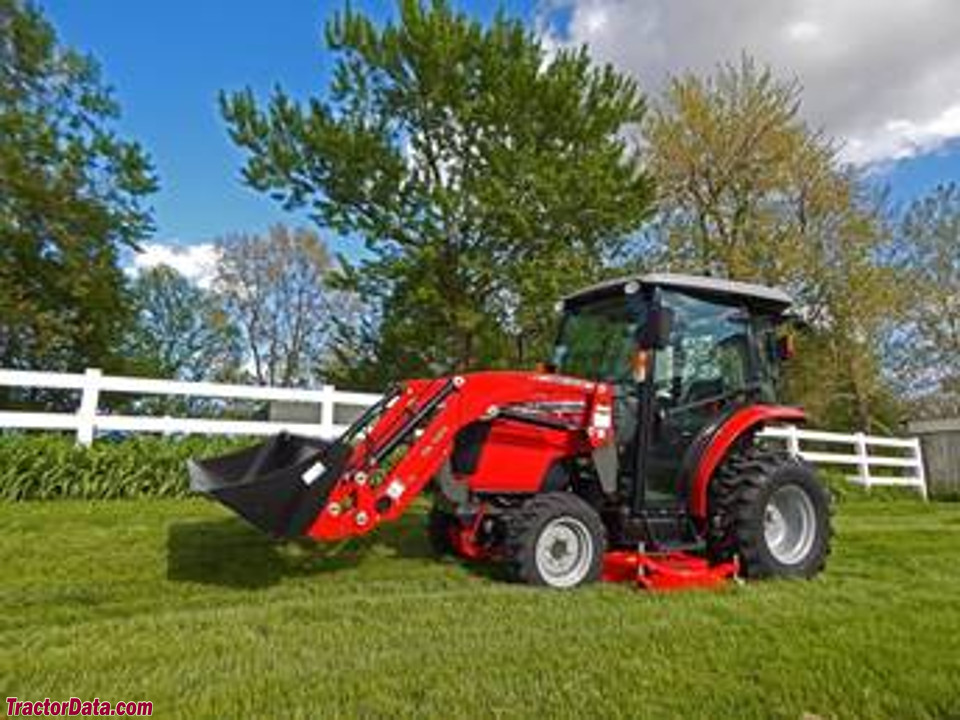

72" mid-mount mower deckReference

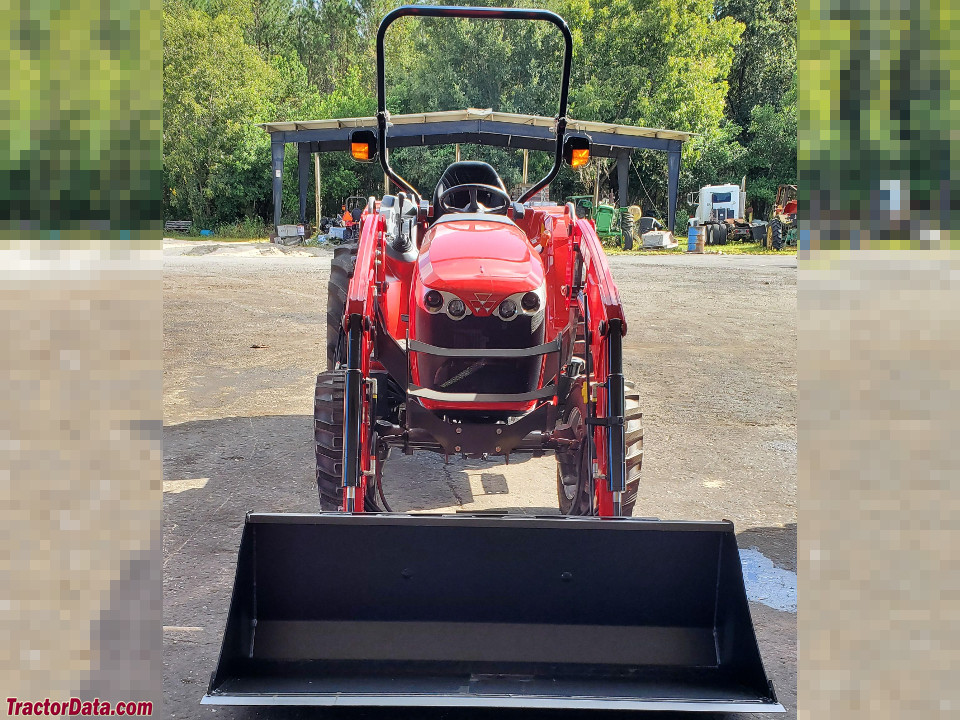

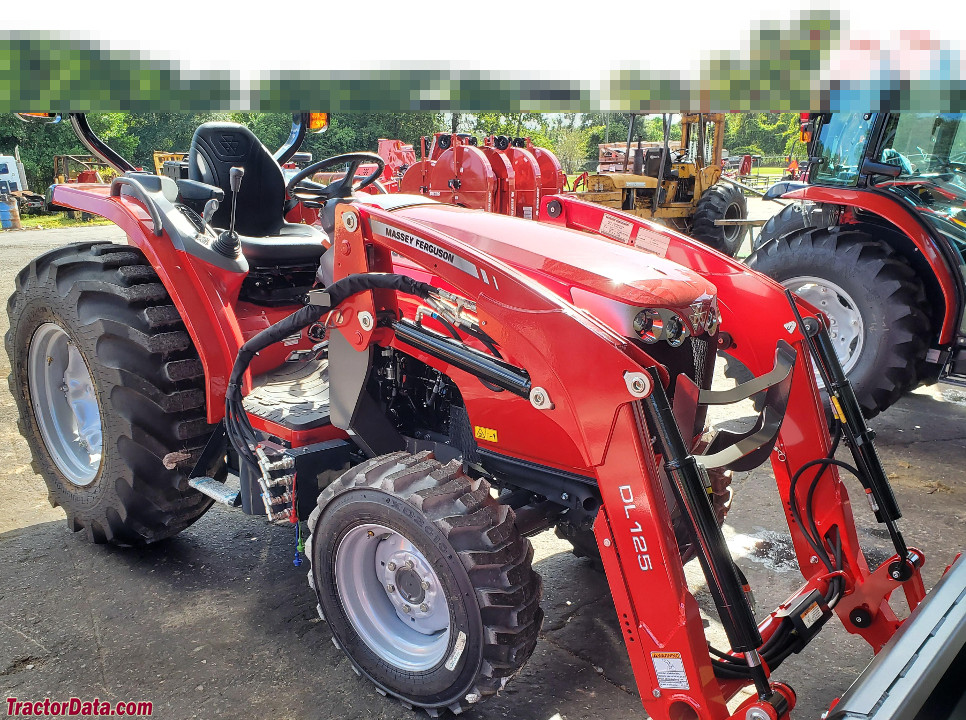

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Massey Ferguson 1705Reference
Type3-bladeReference
Cutting width182 cmReference
Cut height3 to 12 cmReference
Massey Ferguson CB75 Backhoe
Backhoe typeMassey Ferguson CB75 BackhoeReference
Transport height194 cmReference
Digging depth233 cmReference
Loading height177 cmReference
Bucket Rotation174°Reference
Swing Arc170°Reference
Bucket force1427 kgReference
Dipperstick force933 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
