Tractor · 2013Unverified

Massey Ferguson 1736

Name: Massey Ferguson 1736
Brand: Massey Ferguson

Massey Ferguson 1736 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.

The Massey Ferguson 1736 is a tractor rated at approximately 28 hp, positioning it at the lower end of its class. It was manufactured between 2013 and 2018. The model features a 3-cylinder turbocharged intercooled diesel engine with liquid cooling, paired with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 3362 to 3803 pounds, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Max power

36.2 hp

Weight

3362 to 3803 pounds

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

28 hp

Recorded weight

1525 kg

Transmissions

12-speed power shuttle

Production years

2013-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Compact Utility tractorReference

Original price was $23,428 in 2018 with shuttle, ROPSReference

Four-wheel driveReference

Final drivesbull gearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Mitsubishi 1.7L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine27.0 kWReference

Mitsubishi K38Reference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.7 LReference

Bore/Stroke86 x 95 mmReference

EmissionsTier IVReference

Emission controldiesel oxidation catalyst and diesel particulate filterReference

Power27.0 kWReference

Fuel systemhigh-pressure common rail direct injectionReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IV diesel oxidation catalyst and diesel particulate filterReference

Bore and stroke3.386x3.74 inchesReference

Cooling systemliquid-cooled inlineReference

Transmission

12-speed power shuttleReference

hydrostaticReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Four synchronized gears in three ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypePower ShuttleReference

Wheel Drive4WDReference

Rear Axle Drive Typebull gearReference

PTO & Hydraulics

PTO (claimed)20.5 kWReference

Typeopen center gear pumpReference

Valves1 to 3Reference

SCV flow43.9 lpmReference

Rear TypeIReference

Controlposition controlReference

Controldraft controlReference

Rear lift (at 24"/610mm)1149 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase177 cmReference

Weight3362 to 3803 poundsReference

Front tire8-16Reference

Rear tire12.4-24Reference

Standard tires (ag)Front: 8-16. Rear: 12.4-24Reference

Optional tires (ag)Front: 8-16. Rear: 13.6-24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front10-16.5Reference

Industrial rear17.5L-24Reference

Industrial front250/75R16Reference

Industrial rear400/80R24Reference

Length309 cmReference

Width163 cmReference

Height (cab)231 cmReference

ROPS Weight1525 kgReference

Cab Weight1725 kgReference

Massey Ferguson 1736 attachments

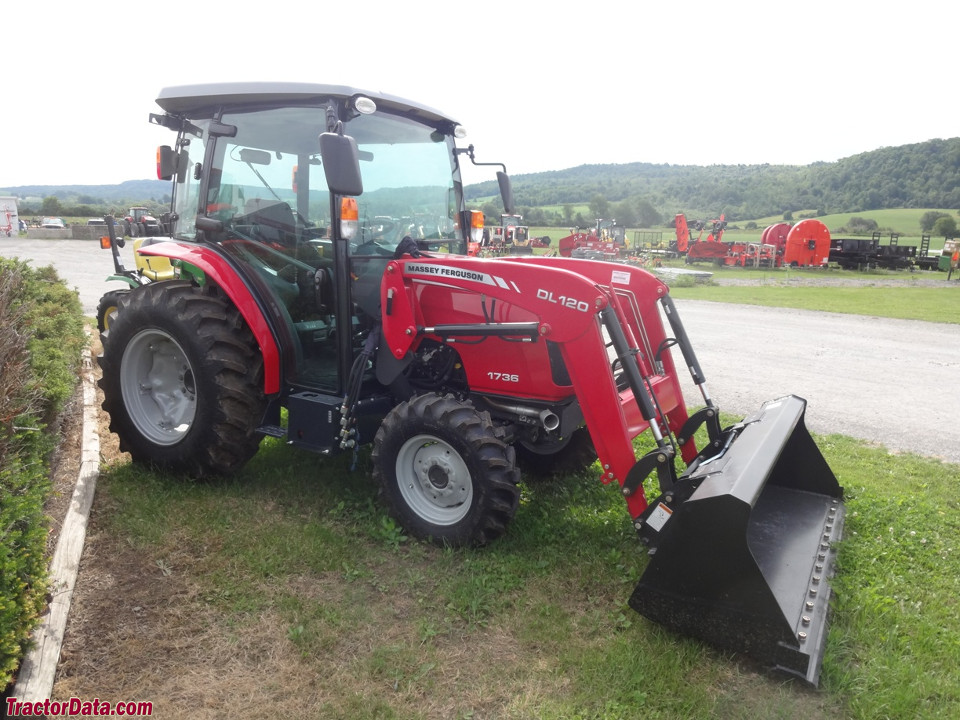

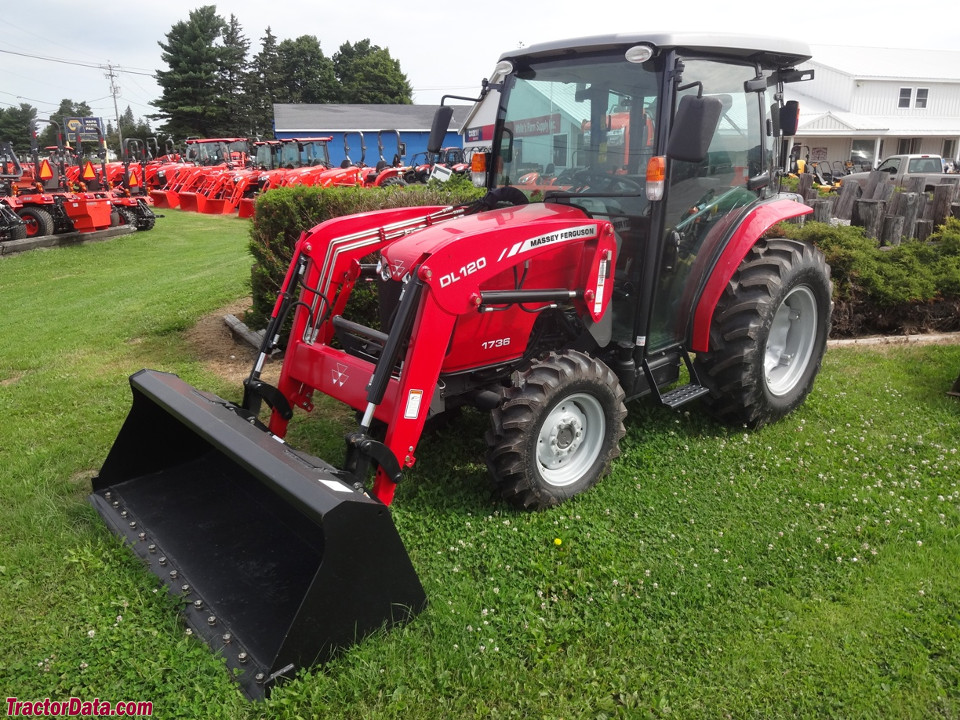

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

SCV controljoystickReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity101 ciReference

Power

Max Power36.2 hpReference

PTO

PTO Power27.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen center gear pumpReference

Remote Valves1 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch Sensing Typeposition control | draft controlReference

Dimensions & weight

Height Over Cab231.9 cmReference

Overall Length309.9 cmReference

Overall Width163.1 cmReference

Overall weight1,525 kgReference

Wheels & tyres

Rear Wheel Type12.4-24Reference

Front Wheel Type45,520Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
