Tractor · 2013Unverified

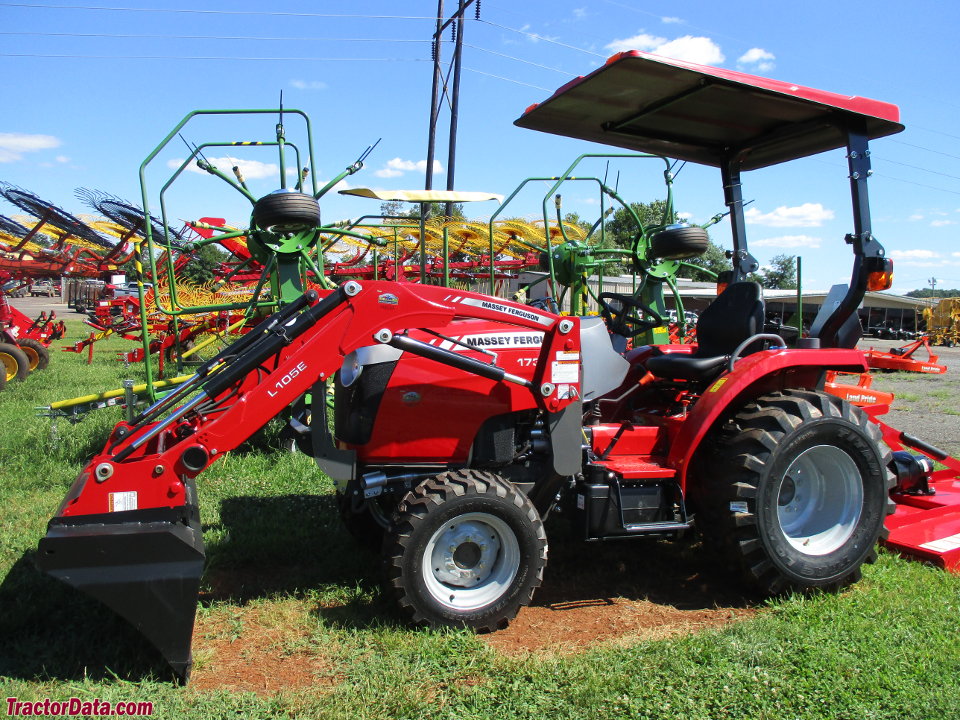

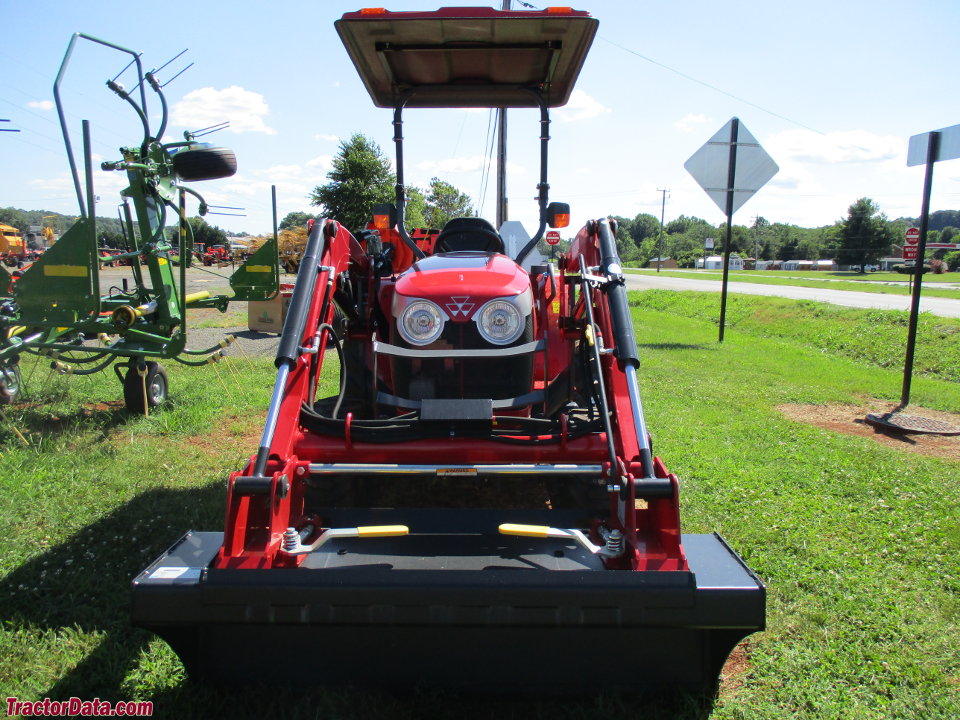

Massey Ferguson 1739E

Name: Massey Ferguson 1739E
Brand: Massey Ferguson

Massey Ferguson 1739E — Compact Utility tractor · 33 hp. Reference specifications; pending source verification.

The Massey Ferguson 1739E is a compact tractor, with a power rating of 33 hp, introduced in 2013. It features a 3-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The tractor's weight is stated to be between 2756 and 2767 pounds. It is designed for use on small to medium-sized agricultural plots, typically up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Max power

39.5 hp

Weight

2756 to 2767 pounds

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

33 hp

Transmissions

9-speed gear

Production years

2013-1700

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesbull gearReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Shibaura 1.5L 3-cyl dieselReference

Engine29.5 kWReference

Shibaura N843T-FReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

EmissionsTier IVReference

Emission controlinternal exhaust-gas recirculatio , diesel oxidation catalst (DOC), regenerating diesel particulate filter (DPF) (iEGR)Reference

Power29.5 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.6 LReference

Coolant capacity5.0 LReference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.307x3.543 inchesReference

Cooling systemliquid-cooledReference

Transmission

9-speed gearReference

hydrostaticReference

Gear1250 kgReference

TypegearReference

Gears9 forward and 3 reverseReference

Clutch225mm dry discReference

Oil capacity37.9 LReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

Wheel Drive4WDReference

Rear Axle Drive Typebull gearReference

PTO & Hydraulics

PTO (claimed)24.5 kWReference

PTO (claimed)23.0 kWReference

Typeopen center gear pumpReference

SCV flow27.3 lpmReference

Total flow42.8 lpmReference

Steering flow15.5 lpmReference

Rear TypeIReference

Rear lift (at ends)1000 kgReference

Rear lift (at 24"/610mm)724 kgReference

Rear PTOliveReference

Clutchover-runningReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2455Reference

Dimensions

Wheelbase167 cmReference

Weight2756 to 2767 poundsReference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear38x14.00-20Reference

Industrial front27x8.50-15Reference

Industrial rear15x19.5Reference

Length295 cmReference

Width133 cmReference

Height (ROPS)247 cmReference

Hydro1255 kgReference

Max front axle1000 kgReference

Max rear axle1000 kgReference

Massey Ferguson 1739E attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Max capacity1999 kgReference

Capacity91.3 ciReference

Crankcase oil volume4.9 qtsReference

Speeds

With 11.2-24 R1 rear tires.Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPSReference

Power

Max Power39.5 hpReference

PTO

PTO Power32.8 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,455 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)11.3 gpmReference

Hydraulics Typeopen center gear pumpReference

Steering & Implements flow4.1 gpmReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,000.2 kgReference

Dimensions & weight

Height Over ROPS247.9 cmReference

Overall Length295.9 cmReference

Overall Width133.1 cmReference

Overall weight1,255.1 kgReference

Wheels & tyres

Rear Wheel Type38x14.00-20Reference

Front Wheel Type27x8.50-15Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
