Tractor · 1973Unverified

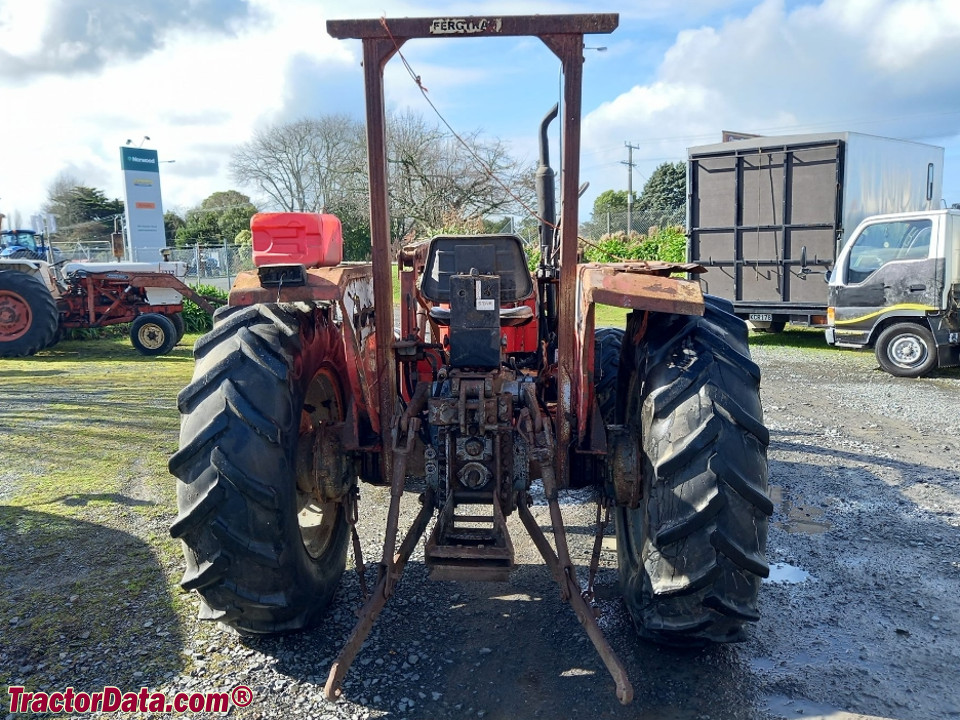

Massey Ferguson 174-4
Massey Ferguson 174-4 — 104 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
2490 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry disc brakesReference
Open operator station. Cab optional.Reference
Variants
1742WDReference
174-44WDReference
174Cag crawlerReference
6500similar Landini modelReference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine48.5 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power48.5 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM650-2410Reference
Torque243.1 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.1 LReference
Coolant capacity15.0 LReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Oil capacity21.0 LReference
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.Reference
Capacities
Fuel60.6 LReference
PTO & Hydraulics
Hydraulic system20.8 LReference
Typeopen centerReference
Capacity20.8 LReference
Pressure166.7 barReference
Pump flow28.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2649 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1916Reference
Dimensions
Wheelbase217 cmReference
Weight2490 kgReference
Front tire9.5/9-24Reference
Rear tire14.9/13-30Reference
Standard tires (ag)Front: 9.5/9-24. Rear: 14.9/13-30Reference
Optional tires (ag)Front: 8.3/8-24. Rear: 14.9/13-28Reference
Optional tires (ag)Front: 11.2/10-24. Rear: 12.4-11-36Reference
Length372 cmReference
Width157 cmReference
Clearance (front axle)35 cmReference
Front tread150 cmReference
Rear tread119 to 189 cmReference
Steering wheel162 cmReference

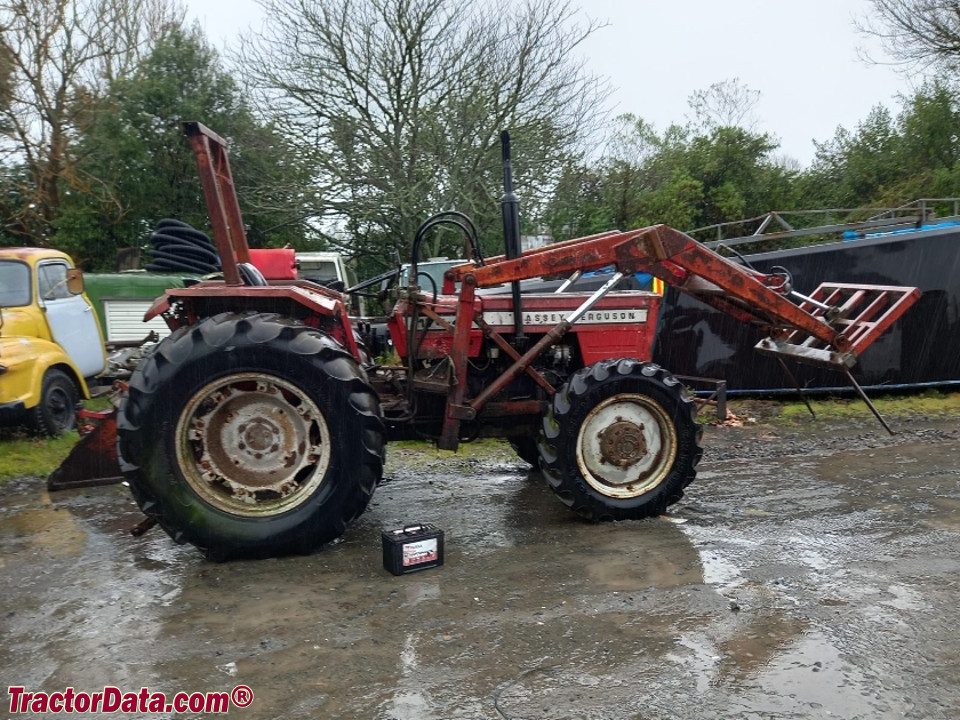

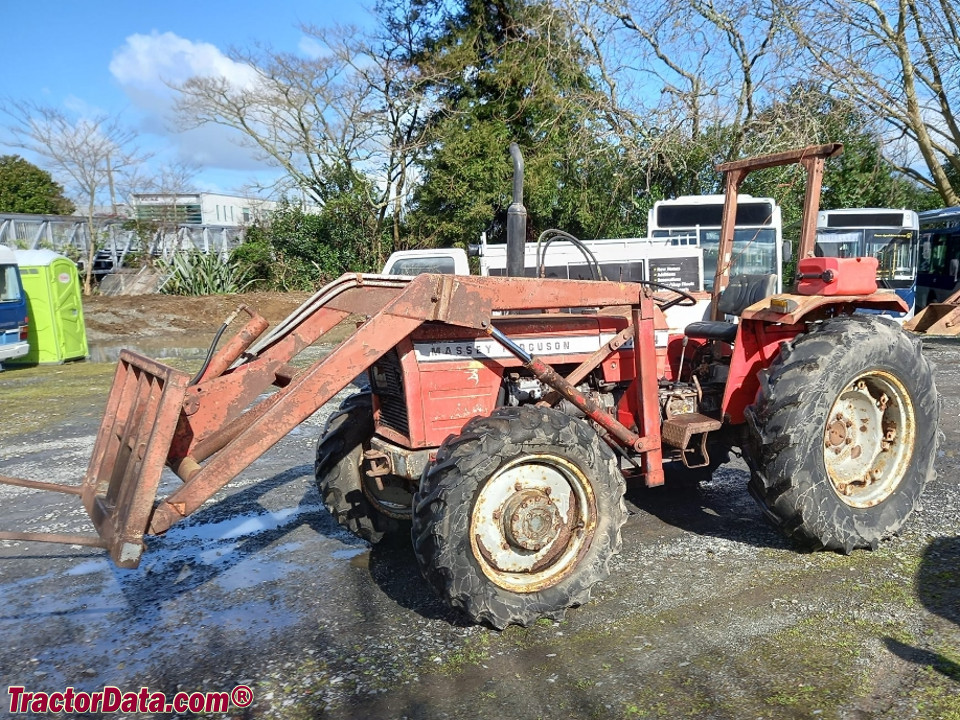

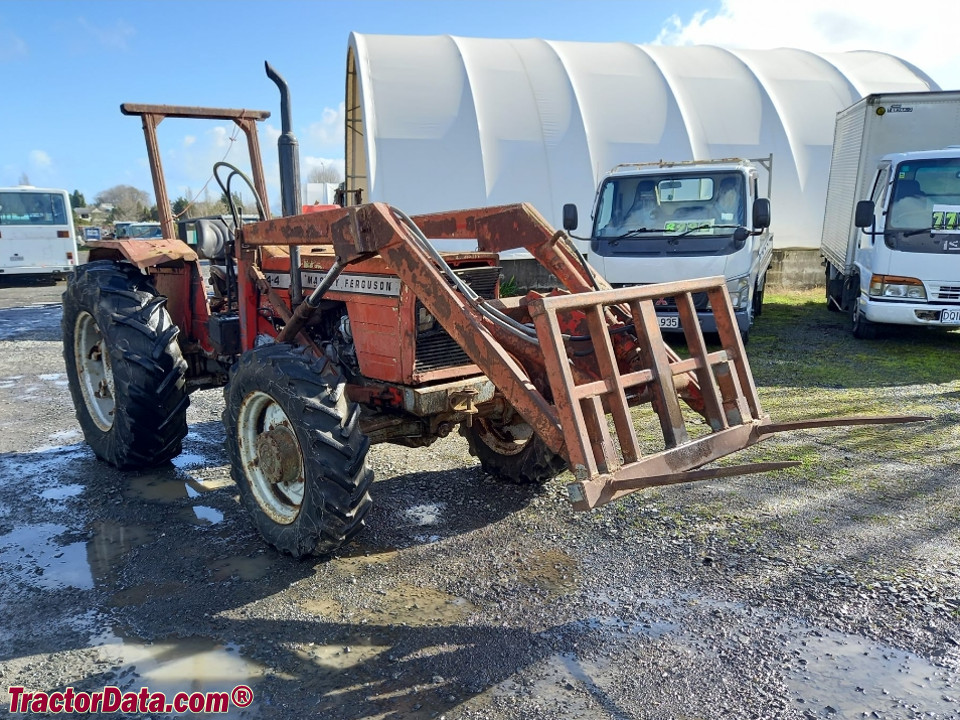

Massey Ferguson 174-4 attachments
front-end loaderReference
174-4 Serial Number Location
Serial number stamped into the rear of the tractor, above and to the left of the PTO shaft.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH92Reference
Massey Ferguson 174-4 Height
Hood140 cmReference
ROPS227 cmReference
Speeds
With 16.9/14-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
