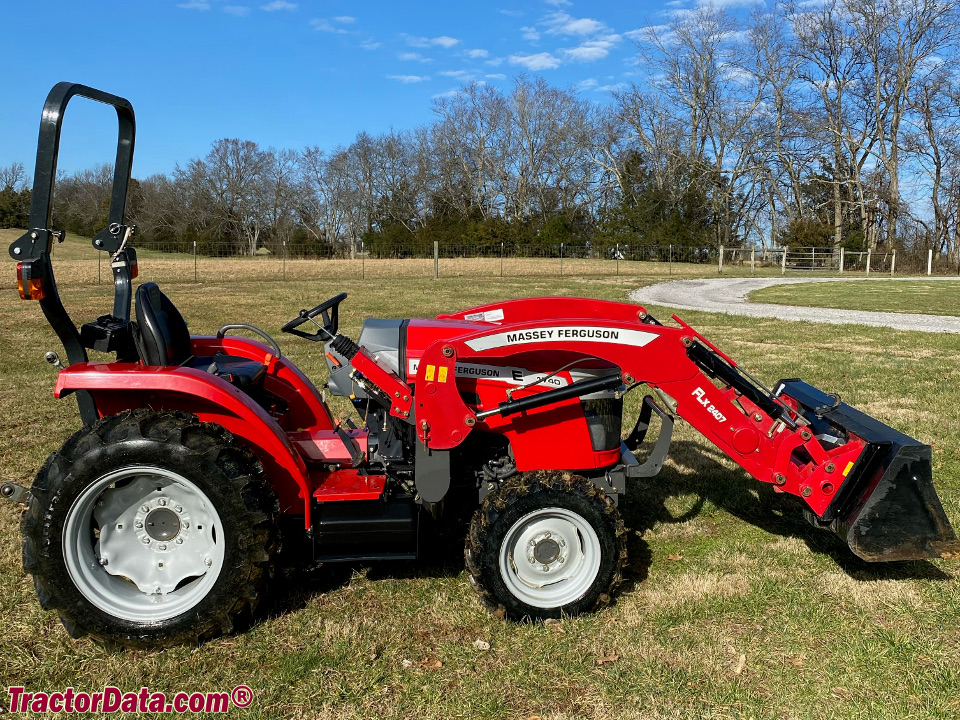

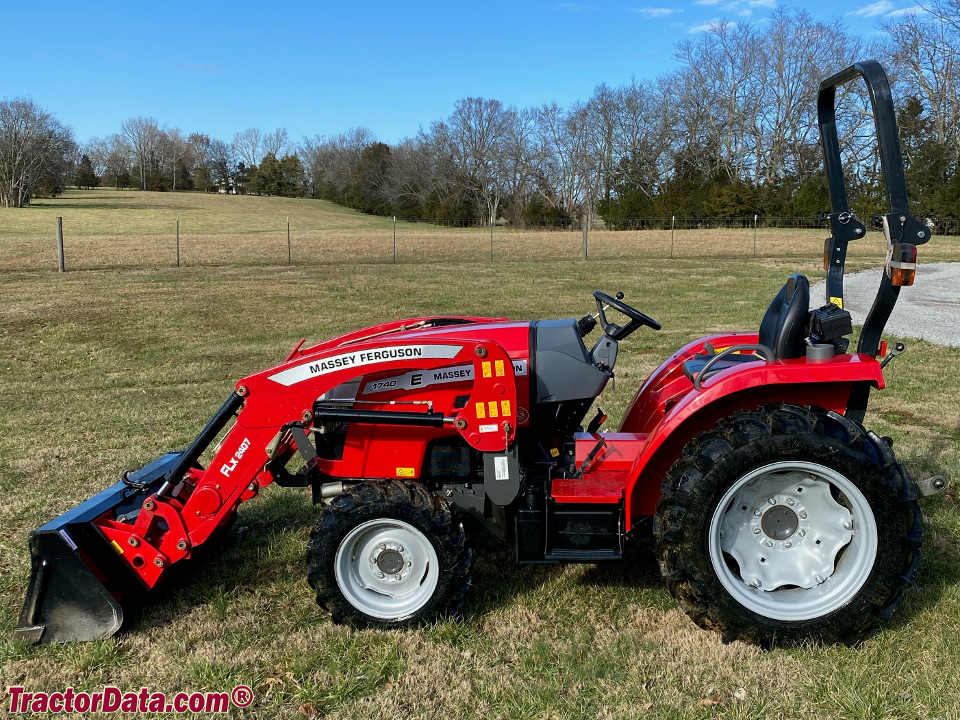

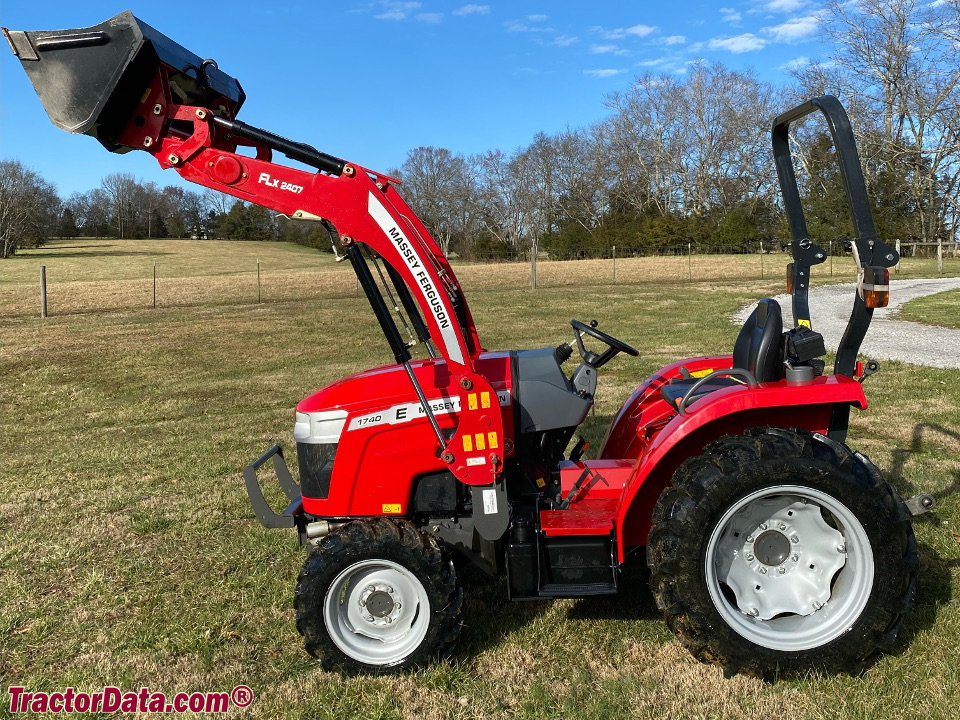

The Massey Ferguson 1740E is a compact tractor with a rated output of 33 hp, introduced in 2020. It features a 3-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. This model is suitable for tasks on land areas of up to 200 acres. Specifications for the UK and US are detailed in the accompanying table.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Catalogue coverage
Variants represented
2
Richest spec table
59 rows
Recorded power
33 hp
Transmissions
8-speed mechanical shuttle
Production years
2020-1700
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Original price$20,188 (2020 shuttle )Reference
Original price$21,049 ( hydro )Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shibaura 1.5L 3-cyl dieselReference
Engine28.7 kWReference
ShibauraReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 90 mmReference
EmissionsTier IVReference
Power28.7 kWReference
Air cleanerdryReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
hydrostaticReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)24.4 kWReference
Hydro PTO (claimed)23.0 kWReference
Typeopen centerReference
Pump flow27.3 lpmReference
Total flow42.8 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)724 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
