Tractor · 2018Unverified

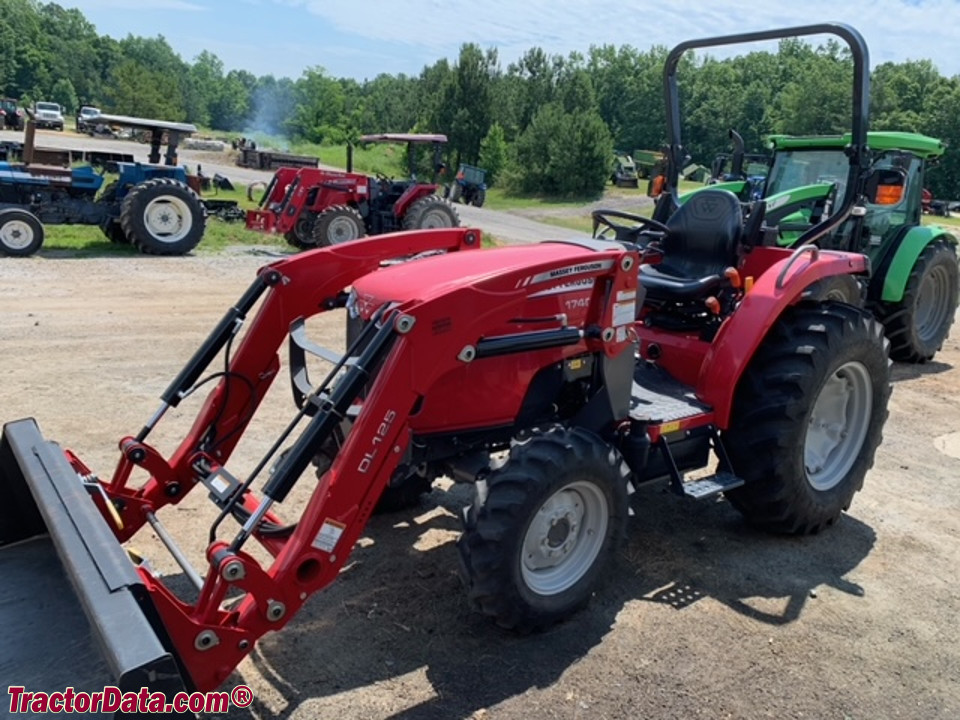

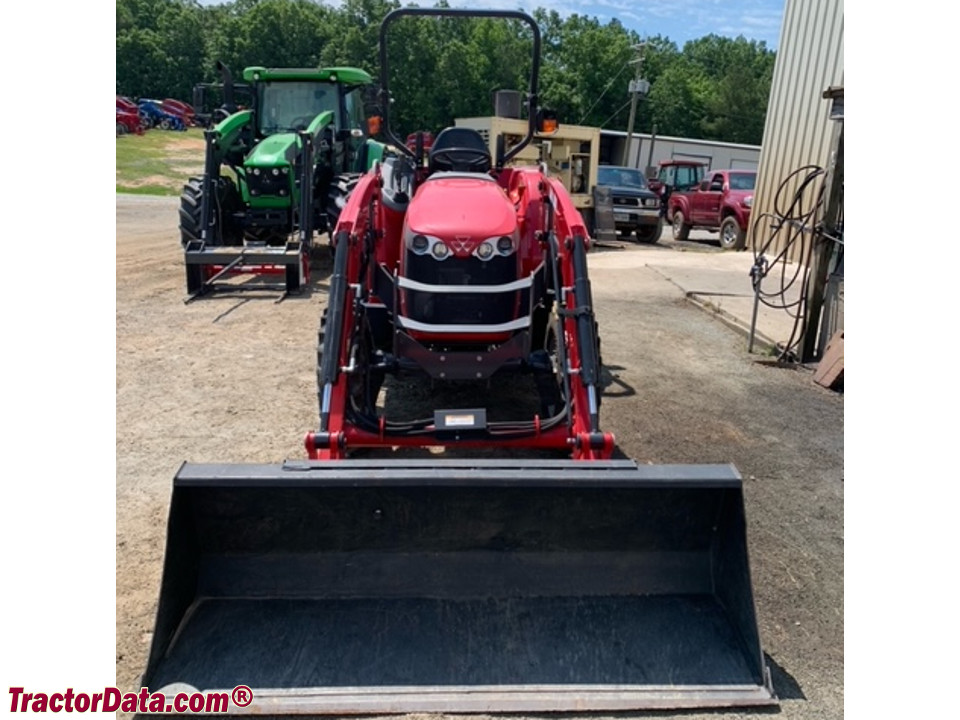

Massey Ferguson 1740M

Name: Massey Ferguson 1740M
Brand: Massey Ferguson

Massey Ferguson 1740M — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.

The Massey Ferguson 1740M is a compact tractor rated at 31 hp. Introduced in 2018, it features a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, delivering power through a four-wheel drive system with a hydrostatic transmission. The tractor's weight ranges from 3373 to 3781 pounds. Suitable for tasks requiring up to 200 acres of land.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Weight

3373 to 3781 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

31 hp

Recorded weight

368 kg

Transmissions

12-speed shuttle

Production years

2018-1700

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Compact Utility tractorReference

Original price was $26,408 in 2019Reference

Four-wheel driveReference

Final drivesbull gearReference

Differential lockrear standardReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional. Deluxe cab available.Reference

Engine

Shibaura 1.7L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine29.8 kWReference

Shibaura N3LDI-TReference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.7 LReference

Bore/Stroke84 x 100 mmReference

EmissionsTier IVReference

Emission controlexhaust-gas recirculation and diesel oxidation catalystReference

Power29.8 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed shuttleReference

hydrostaticReference

ROPS gear1529 kgReference

Cab gear1705 kgReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Four synchronized gears in three ranges with power shuttle.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)23.3 kWReference

Hydro PTO (claimed)21.7 kWReference

Typeopen centerReference

Rear valves3Reference

Pump flow45.8 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1149 kgReference

Rear Armstelescopic draft link endsReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type1916Reference

Dimensions

Wheelbase180 cmReference

Weight3373 to 3781 poundsReference

Front tire8-16Reference

Rear tire12.4x24Reference

Weight368 kgReference

Standard tires (ag)Front: 8-16. Rear: 12.4x24Reference

Optional tires (ag)Front: 8-16. Rear: 13.6x24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front10-16.5Reference

Industrial rear17.5L-24Reference

Industrial front25x8.5-14Reference

Industrial rear15x19.5Reference

Length309 cmReference

Width163 cmReference

Height (ROPS)251 cmReference

Height (cab)231 cmReference

ROPS hydro1544 kgReference

Cab hydro1715 kgReference

Massey Ferguson 1740M attachments

72" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

72" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

72" Mower deck

Typemid-mount Massey Ferguson 1705Reference

Type3-bladeReference

Cutting width182 cmReference

Cut height3 to 12 cmReference

Massey Ferguson CB75 Backhoe

Backhoe typeMassey Ferguson CB75 BackhoeReference

Transport height194 cmReference

Digging depth233 cmReference

Loading height177 cmReference

Bucket Rotation174°Reference

Swing Arc170°Reference

Bucket force1427 kgReference

Dipperstick force933 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
