Tractor · 2013Unverified

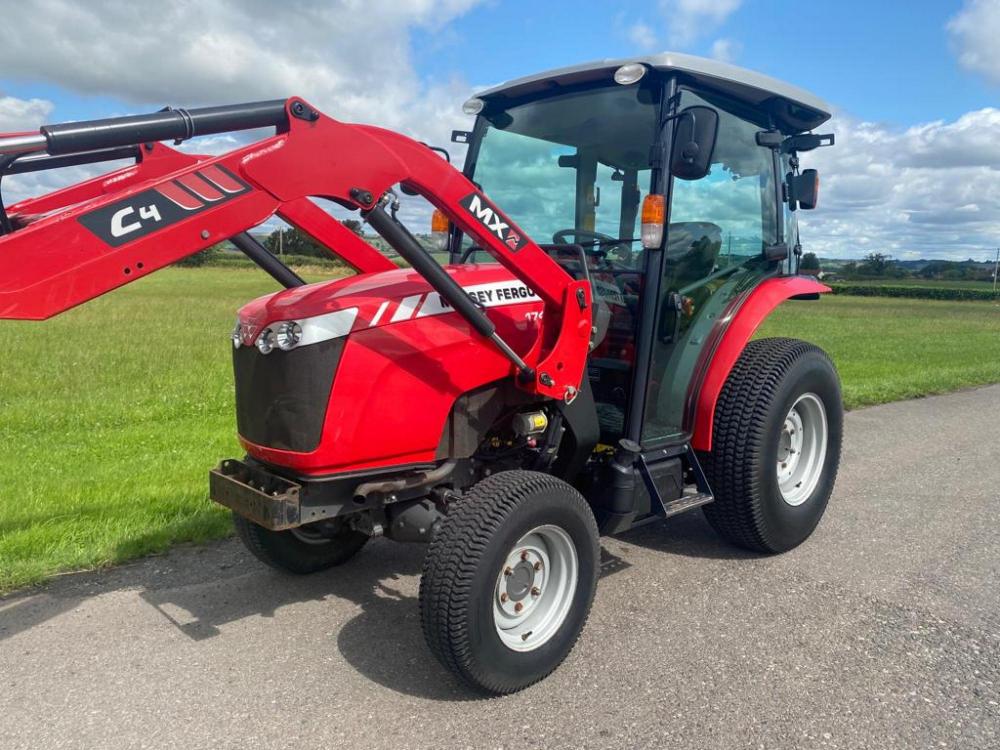

Massey Ferguson 1747

Name: Massey Ferguson 1747
Brand: Massey Ferguson

Massey Ferguson 1747 — Compact Utility tractor · 46 hp. Reference specifications; pending source verification.

The Massey Ferguson 1747 is a compact tractor, rated at 46 hp, which places it among the smaller models in its class. Manufactured from 2013 to 2018, it features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor's weight ranges from 3990 to 4317 pounds and is designed to handle tasks on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Weight

3990 to 4317 pounds

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

46 hp

Recorded weight

1809 kg

Transmissions

12-speed mechanical shuttle

Production years

2013-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey Ferguson (a part of AGCO)Reference

ManufacturerIsekiReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS, mid-mount or rear available. Cab available with air-conditioning.Reference

Variants

TG6495similar Iseki modelReference

Engine

Iseki 2.2L 4-cyl dieselReference

Fuel tank53.0 LReference

Engine (gross)34.3 kWReference

Iseki E4CGReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke87 x 92 mmReference

Power (gross)34.3 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

hydrostaticReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

Pump flow74.2 lpmReference

Rear TypeIReference

Rear lift1579 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Dimensions

Wheelbase189 cmReference

Weight3990 to 4317 poundsReference

Front tire9.5-16Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference

Lawn/turf front212x80D15Reference

Lawn/turf rear355x80D20Reference

Length345 cmReference

Width164 cmReference

Height (ROPS)232 cmReference

ROPS Weight1809 kgReference

Cab Weight1958 kgReference

Ground clearance30 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
