Tractor · 2013Unverified

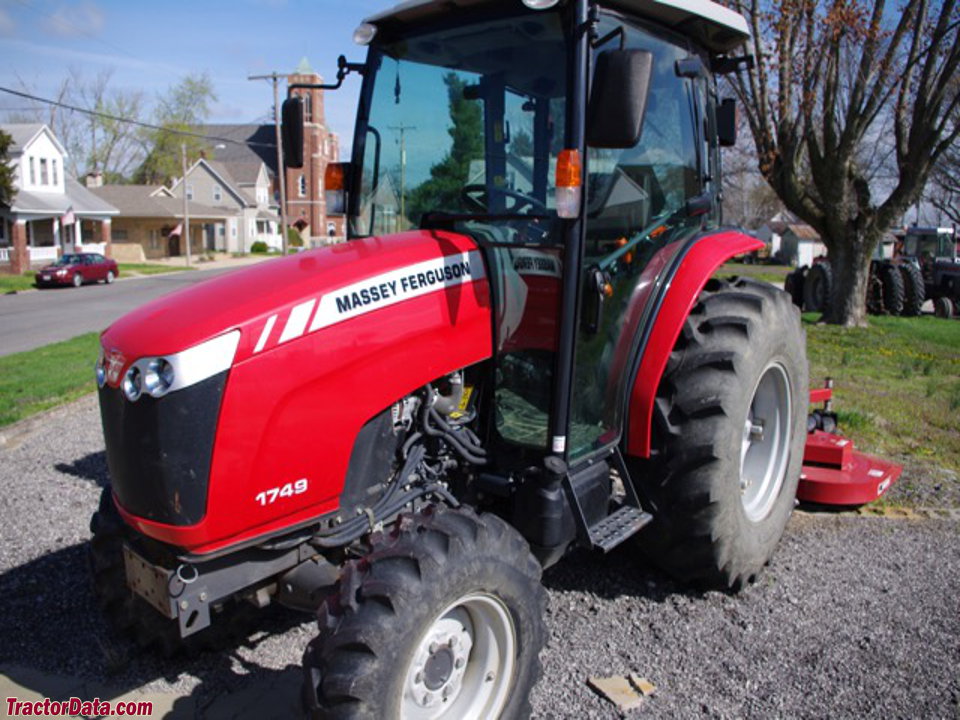

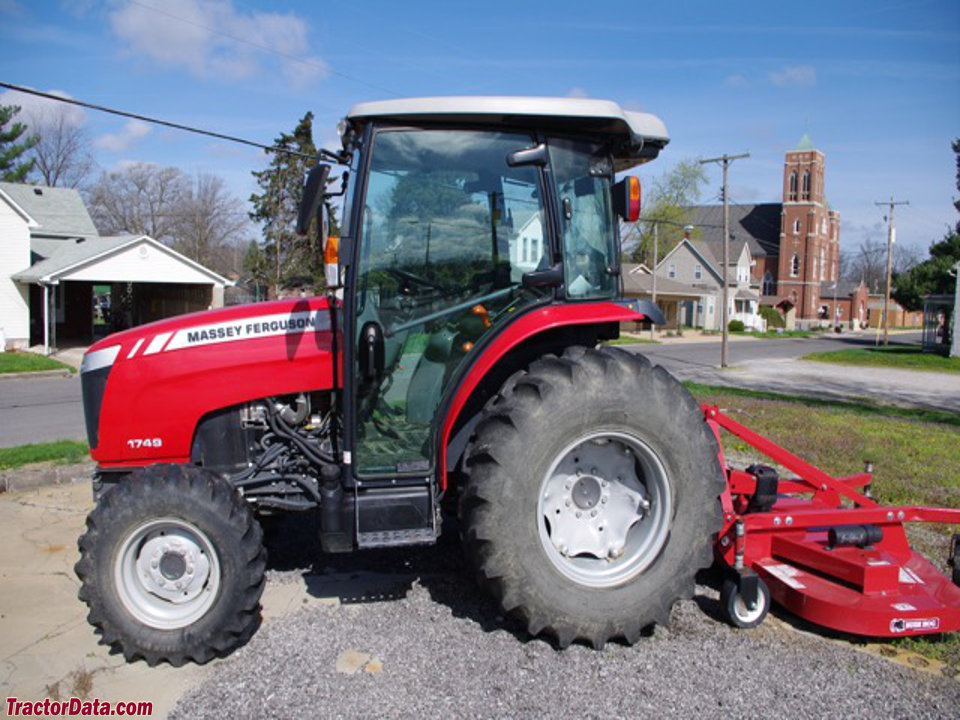

Massey Ferguson 1749

Name: Massey Ferguson 1749
Brand: Massey Ferguson

Massey Ferguson 1749 — Compact Utility tractor · 39 hp. Reference specifications; pending source verification.

The Massey Ferguson 1749 is a tractor with a rated power output of 39 hp, positioning it at the lighter end of its class. Manufactured from 2013 to 2018, this model features a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is listed as 3913 to 4354 pounds, suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

39 hp

Max power

48.3 hp

Weight

3913 to 4354 pounds

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

39 hp

Recorded weight

1774 kg

Transmissions

12-speed power shuttle

Production years

2013-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Compact Utility tractorReference

Original price was $31,508 in 2018 with shuttle, ROPSReference

Four-wheel driveReference

Final drivesbull gearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Mitsubishi 1.7L 3-cyl dieselReference

Fuel tank54.9 LReference

Engine36.0 kWReference

Mitsubishi K38Reference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.7 LReference

Bore/Stroke86 x 95 mmReference

EmissionsTier IVReference

Emission controldiesel oxidation catalyst and diesel particulate filterReference

Power36.0 kWReference

Fuel systemhigh-pressure common rail direct injectionReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IV diesel oxidation catalyst and diesel particulate filterReference

Bore and stroke3.386x3.74 inchesReference

Cooling systemliquid-cooled inlineReference

Transmission

12-speed power shuttleReference

hydrostaticReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Four synchronized gears in three ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypePower ShuttleReference

Wheel Drive4WDReference

Rear Axle Drive Typebull gearReference

PTO & Hydraulics

PTO (claimed)29.1 kWReference

Typeopen center gear pumpReference

Valves1 to 3Reference

SCV flow43.9 lpmReference

Rear TypeIReference

Controlposition controlReference

Controldraft controlReference

Rear lift (at 24"/610mm)1399 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase193 cmReference

Weight3913 to 4354 poundsReference

Front tire9.5x16Reference

Rear tire13.6x28Reference

Standard tires (ag)Front: 9.5x16. Rear: 13.6x28Reference

Optional tires (ag)Front: 9.5x16. Rear: 16.9x24Reference

Lawn/turf front27x10.50-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front10-16.5Reference

Industrial rear17.5L-24Reference

Industrial front250/80R16Reference

Industrial rear360/80R28Reference

Length336 cmReference

Width166 cmReference

Height (cab)235 cmReference

ROPS Weight1774 kgReference

Cab Weight1974 kgReference

Massey Ferguson 1749 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity101 ciReference

Power

Max Power48.3 hpReference

PTO

PTO Power39 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen center gear pumpReference

Remote Valves1 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch Sensing Typeposition control | draft controlReference

Dimensions & weight

Height Over Cab236 cmReference

Overall Length336 cmReference

Overall Width166.1 cmReference

Overall weight1,774.9 kgReference

Wheels & tyres

Rear Wheel Type13.6x28Reference

Front Wheel Type9.5x16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
