Tractor · Unverified

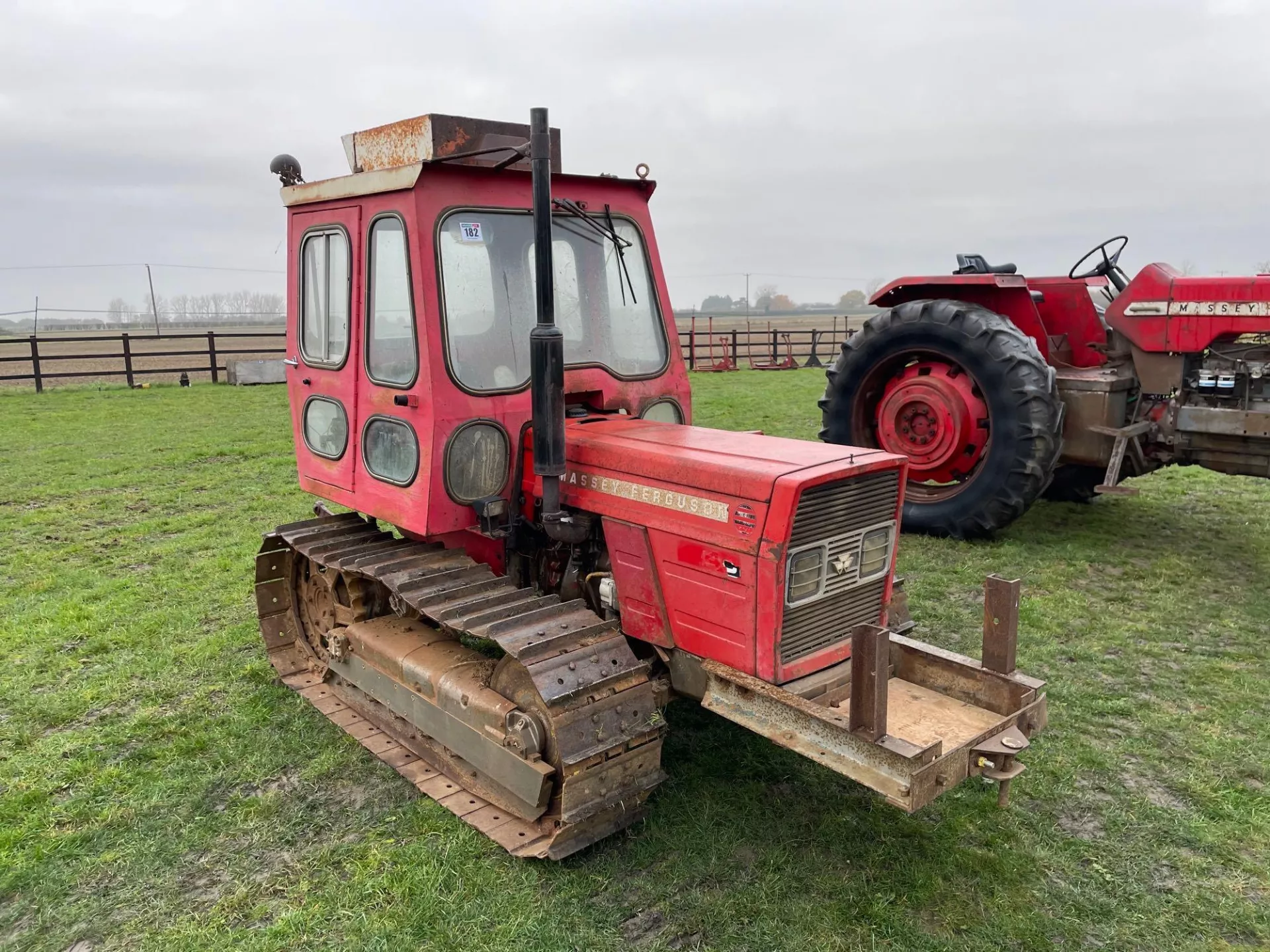

Massey Ferguson 174C

Name: Massey Ferguson 174C
Brand: Massey Ferguson

Massey Ferguson 174C — Agricultural Crawler tractor · 61 hp. Reference specifications; pending source verification.

The Massey Ferguson 174C is a tractor with an output of approximately 61 hp, positioning it at the lower end of its class. It features a 4-cylinder liquid-cooled diesel engine, combined with four-wheel drive and an 8-speed gearbox. The tractor has an operating weight of 3339 kg and is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

61 hp

Weight

3339 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

61 hp

Recorded weight

3339 kg

Transmissions

8-speed gear

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Agricultural Crawler tractorReference

DrivecrawlerReference

Mechanical band brakesReference

Open operator station.Reference

Variants

1742WDReference

174-44WDReference

174Cag crawlerReference

Engine

Perkins 3.9L 4-cyl dieselReference

Fuel tank62.1 LReference

Engine45.5 kWReference

Perkins A4.236Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Power45.5 kWReference

Fuel systemdirect injectionReference

Compression16:1Reference

Rated RPM2200Reference

Torque226.5 NmReference

Torque RPM1300Reference

Firing order1-3-4-2Reference

Starter typeelectricReference

Oil capacity9.0 LReference

Coolant capacity15.0 LReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 4 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure166.7 barReference

Valves1Reference

Pump flow28.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1944Reference

Dimensions

Wheelbase152 cmReference

Weight3339 kgReference

14-inch tracksReference

Length281 cmReference

Width166 cmReference

Height119 cmReference

Ground clearance35 cmReference

Gauge129 cmReference

Massey Ferguson 174C Tracks

Width35 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
