Tractor · 1964Unverified

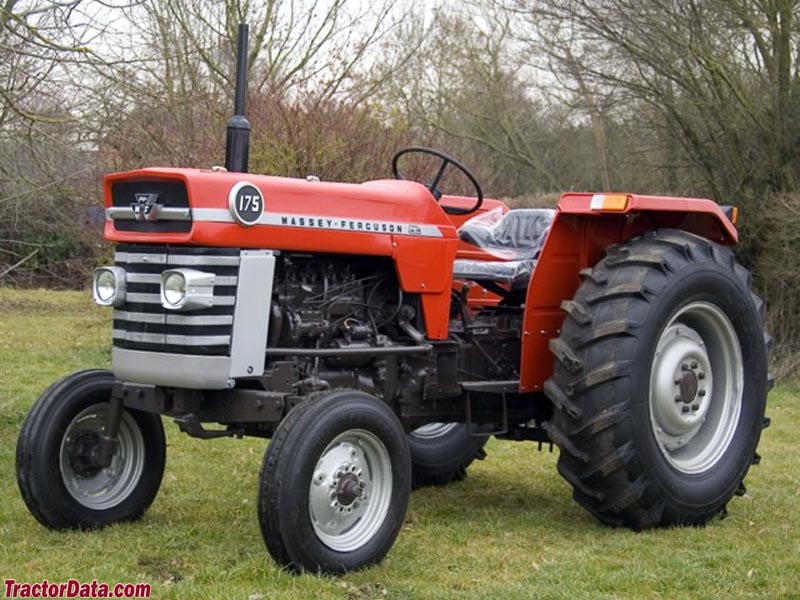

Massey Ferguson 175
Massey Ferguson 175 — Row-Crop tractor · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Max power
39.9 kW
Weight
5925 to 6125 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Original price was $7,500 in 1975Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Steeringpower assistReference
Mechanical disc brakesReference
Open operator stationReference
Engine
Perkins 3.9L 4-cyl dieselReference
Perkins 3.9L 4-cyl gasolineReference
Continental 3.4L 4-cyl gasolineReference
Diesel Fuel tank70.0 LReference
Gas Fuel tank87.1 LReference
Drawbar (claimed)40.3 kWReference
Drawbar (tested)39.9 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Air cleanerdryReference
Pre-heatingether injectionReference
Compression16:1Reference
Rated RPM2000Reference
Idle RPM725-2185Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity12.8 LReference
Oil capacity9.0 LReference
Perkins AG4.236Reference
gasolineReference
4-cylinder 8-valveReference
The Perkins AG4.236 became the gasoline engine option in 1969.Reference
Compression7:1Reference
Continental G206Reference
The G206 was used in the Massey Ferguson 175 from 1964 to 1968.Reference
Displacement3.4 LReference
Bore/Stroke97 x 114 mmReference
Compression7.1:1Reference
Idle RPM450-2250Reference
Coolant capacity9.9 LReference
SparkplugChampion D-16Reference
Sparkplug gap0.635 mmReference
Oil capacity5.7 LReference
Power at rated engine speed47.2 kWReference
Max power39.9 kWReference
Power at rated engine speed46.2 kWReference
Max power36.0 kWReference
Transmission
12-speed two-speed power shiftReference
6-speed gearReference
8-speed gearReference
TransmissionMulti PowerReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
Oil capacity30.3 LReference
Oil typeMF M1129Reference
Three gears in two ranges with the two-speed Multi-Power power shift.Reference
TypegearReference
Gears6 forward and 2 reverseReference
Gears8 forward and 2 reverseReference
The 8-speed transmission replaced the earlier 6-speed as an alternate to Multi-Power.Reference
PTO & Hydraulics
PTO (claimed)47.0 kWReference
PTO (tested)47.2 kWReference
Typeopen centerReference
Pressure162.0 barReference
Valves0 to 2Reference
Pump flow26.5 lpmReference
Pump flow18.9 lpmReference
Total flow45.4 lpmReference
Rear TypeIIReference
Rear lift1528 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1700Reference
Power at rated PTO speed41.4 kWReference
Power at rated PTO speed43.3 kWReference
Dimensions
Wheelbase208 cmReference
Weight5925 to 6125 poundsReference
Front tire6.50-16Reference
Rear tire16.9/14-28Reference
Ag front6.50-16Reference
Ag rear16.9/14-28Reference
Ag front6.00-16Reference
Ag front7.50L-15Reference
Ag rear18.4/15-26Reference
Ag rear13.6/12-24 (Lo-Profile)Reference
Ag rear14.9/13-24 (Lo-Profile)Reference
Ag rear16.9/14-24 (Lo-Profile)Reference
Length350 cmReference
Width184 cmReference
Height (steering wheel)165 cmReference
Ground clearance33 cmReference
Ground clearance24 cmReference
Front tread121 to 203 cmReference
Front tread111 to 172 cmReference
Rear tread166 to 189 cmReference
Rear tread142 to 228 cmReference
Rear tread137 to 220 cmReference
Rear tread152 to 223 cmReference
Gas Operating2687 kgReference
Diesel Operating2778 kgReference
Ballasted4334 kgReference
Massey Ferguson 175 attachments
front-end loaderReference
175 Serial Numbers
Location:Below instrument panel on steering columnReference
1964644000001Reference
1965644001494Reference
1966644003041Reference
19679A1000Reference
19689A39836Reference
19699A63158Reference
19709A87325Reference
19719A107597Reference
19729A128141Reference
19739A152025Reference
19749A179544Reference
19759A207681Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps25Reference
Battery volts12Reference
Diesel Battery AH96Reference
Gas Battery AH41Reference
Attachment overview
Massey Ferguson 245 loaderReference
Massey Ferguson 245 High Lift loaderReference
Test results
NTTL 897: diesel 12-speed 2WDReference
NTTL 1020: Perkins gasoline 12-speed 2WDReference
Diesel 12-speed 2WDMay 17 - 29, 1965Link: Nebraska Tractor Test 897 fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use12.5 l/hourReference
Drawbar performanceReference
Fuel use14.0 l/hourReference
Gear 1H Low used for power test.Reference
Max pull3224 kgReference
Gear 2L Hi used for pull test.Reference
Perkins gasoline 12-speed 2WDSeptember 11 - 25, 1969Link: Nebraska Tractor Test 1020 fileReference
Fuel use21.2 l/hourReference
Fuel use18.9 l/hourReference
Fuel use18.5 l/hourReference
Max pull3106 kgReference
Speeds
With 16.9/14-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
