Tractor · 2013Unverified

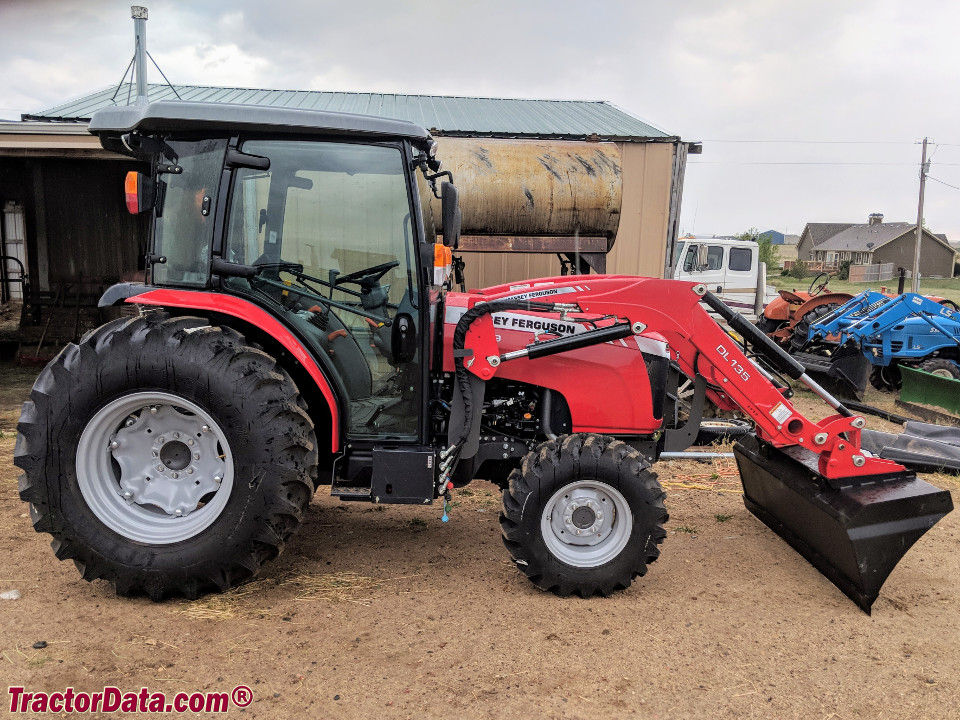

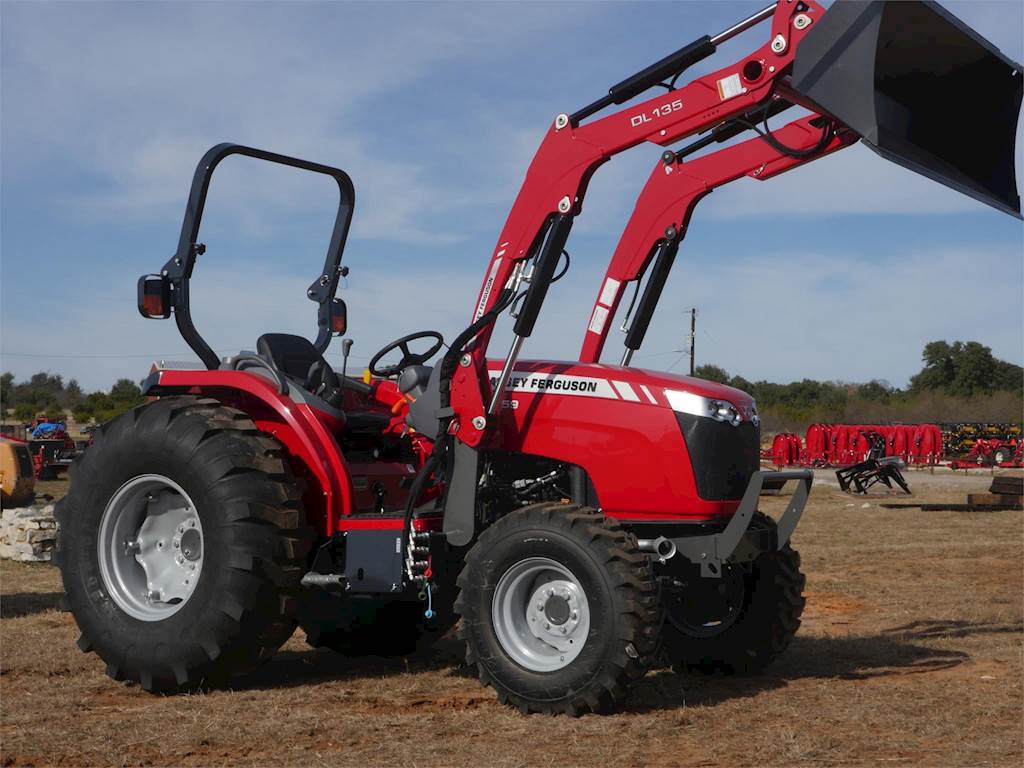

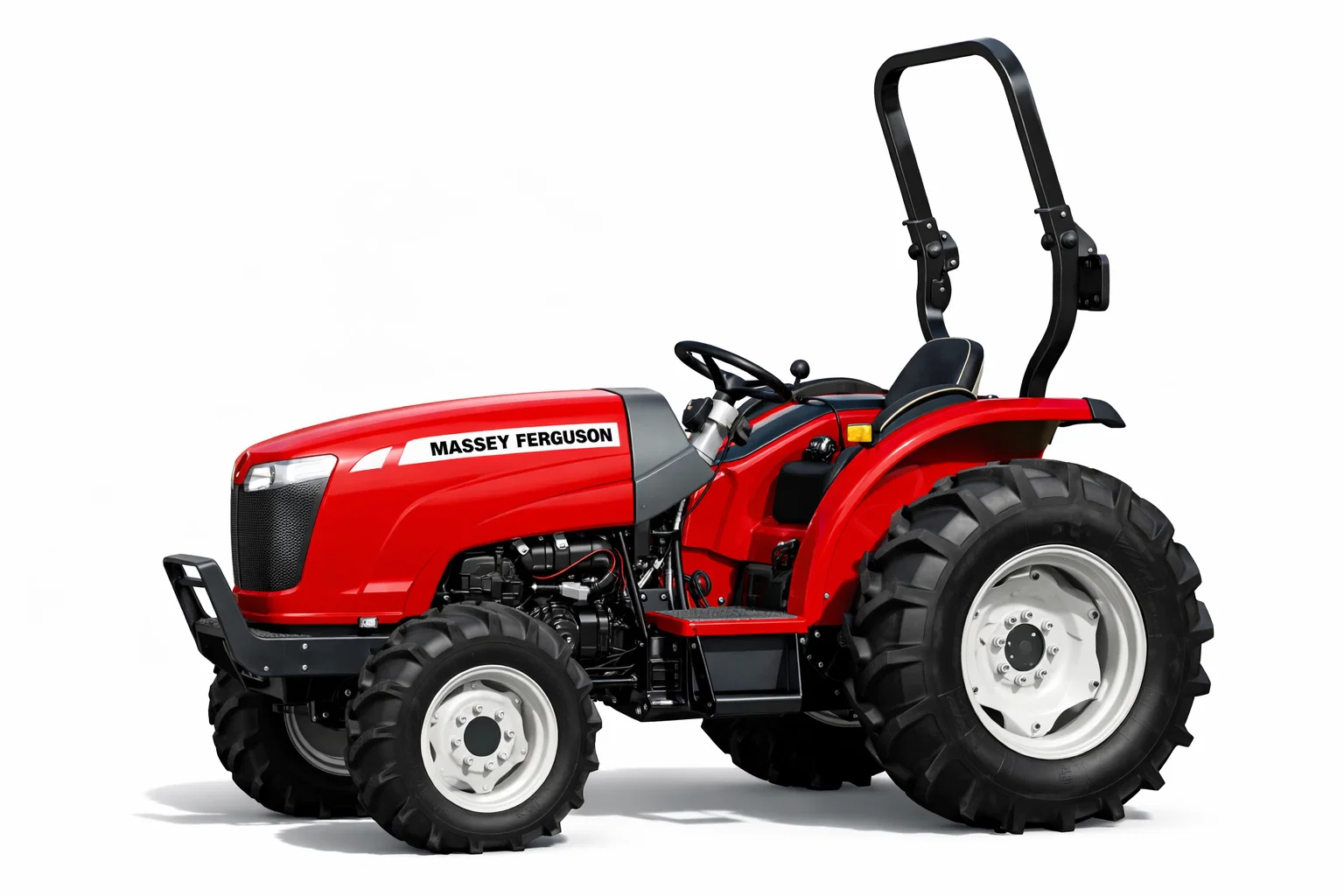

Massey Ferguson 1759

Name: Massey Ferguson 1759
Brand: Massey Ferguson

Massey Ferguson 1759 — Compact Utility tractor · 46 hp. Reference specifications; pending source verification.

The Massey Ferguson 1759 is a compact tractor with a rated output of 46 hp. It was manufactured from 2013 to 2018. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a 12-speed gearbox and four-wheel drive. Its listed weight ranges from 4343 to 4784 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Max power

59 hp

Weight

4343 to 4784 pounds

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

46 hp

Recorded weight

1969 kg

Transmissions

12-speed power shuttle

Production years

2013-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Compact Utility tractorReference

Original price was $35,558 in 2018 with shuttle, ROPSReference

Four-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Mitsubishi 2.2L 4-cyl dieselReference

Fuel tank54.9 LReference

Engine44.0 kWReference

Mitsubishi K39Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.2 LReference

Bore/Stroke86 x 95 mmReference

EmissionsTier IVReference

Emission controldiesel oxidation catalyst and diesel particulate filterReference

Power44.0 kWReference

Fuel systemhigh-pressure common rail direct injectionReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 CylinderReference

Rated engine speed2,500 RPMReference

Bore and stroke3.386x3.74 inchesReference

Cooling systemliquid-cooled inlineReference

Transmission

12-speed power shuttleReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Four synchronized gears in three ranges.Reference

Transmission TypePower ShuttleReference

forward and reverse optionspower shuttle - 12F and 12RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)34.0 kWReference

Typeopen center gear pumpReference

Valves1 to 3Reference

SCV flow48.4 lpmReference

Rear TypeIIReference

Controlposition controlReference

Controldraft controlReference

Rear lift (at 24"/610mm)1500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase196 cmReference

Weight4343 to 4784 poundsReference

Front tire9.5x16Reference

Rear tire16.9x26Reference

Standard tires (ag)Front: 9.5x16. Rear: 16.9x26Reference

Lawn/turf front27x10.50-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front12-16.5Reference

Industrial rear18.4-24Reference

Industrial front250/80R16Reference

Industrial rear400/80R28Reference

Length341 cmReference

Width180 cmReference

Height (cab)236 cmReference

ROPS Weight1969 kgReference

Cab Weight2170 kgReference

Massey Ferguson 1759 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity134.7 ciReference

Power

Max Power59 hpReference

PTO

PTO Power45.6 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen center gear pumpReference

Remote Valves1 to 3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeposition control | draft controlReference

Dimensions & weight

Height Over Cab237 cmReference

Overall Length341.9 cmReference

Overall Width180.6 cmReference

Overall weight1,970 kgReference

Wheels & tyres

Rear Wheel Type16.9x26Reference

Front Wheel Type9.5x16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
