Tractor · 2018Unverified

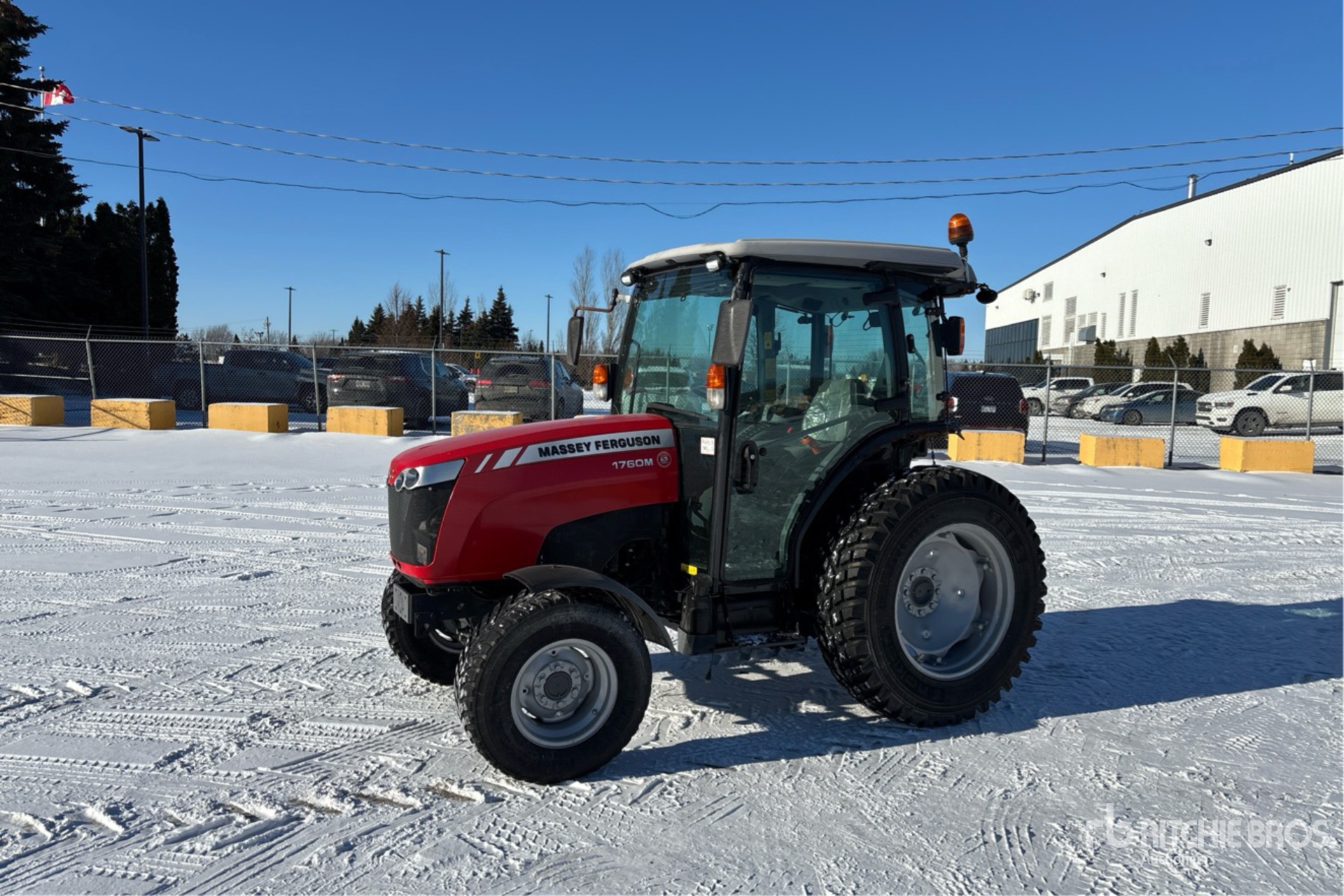

Massey Ferguson 1760M
Massey Ferguson 1760M — Compact Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
3968 to 4674 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Original price was $35,883Reference
Four-wheel driveReference
Final drivesbull gearReference
Differential lockrear standardReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional. Deluxe cab available.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine44.7 kWReference
Shibaura N4LDI-TAReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier IVReference
Emission controlexhaust-gas recirculation and diesel oxidation catalystReference
Power44.7 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
hydrostaticReference
Gear Length431 cmReference
Gear Width180 cmReference
Cab gear2120 kgReference
Gear ROPS262 cmReference
Gear Cab236 cmReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Four synchronized gears in three ranges with power shuttle.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)34.4 kWReference
Hydro PTO (claimed)33.1 kWReference
Typeopen centerReference
Rear valves3Reference
Hydro Pump flow45.8 lpmReference
Gear Pump flow50.3 lpmReference
Hydro Rear TypeIReference
Gear Rear TypeIIReference
Controlposition and draft controlReference
Hydro Rear lift (at 24"/610mm)1399 kgReference
Gear Rear lift (at 24"/610mm)1500 kgReference
Rear Armstelescopic draft link endsReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type1916Reference
Dimensions
Wheelbase196 cmReference
Weight3968 to 4674 poundsReference
Front tire9.5x16Reference
Rear tire16.9x26Reference
Weight386 kgReference
Standard tires (ag)Front: 9.5x16. Rear: 16.9x26Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front12-16.5Reference
Industrial rear18.4-24Reference
Hydro Length335 cmReference
Hydro Width166 cmReference
ROPS hydro1799 kgReference
Cab hydro2024 kgReference
Massey Ferguson 1760M attachments

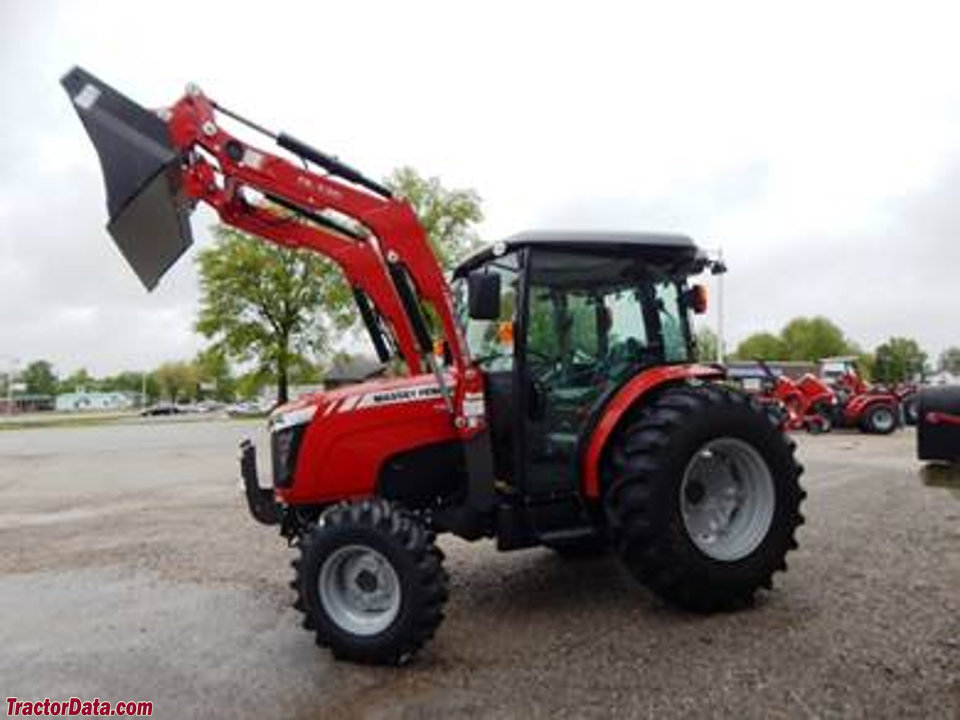

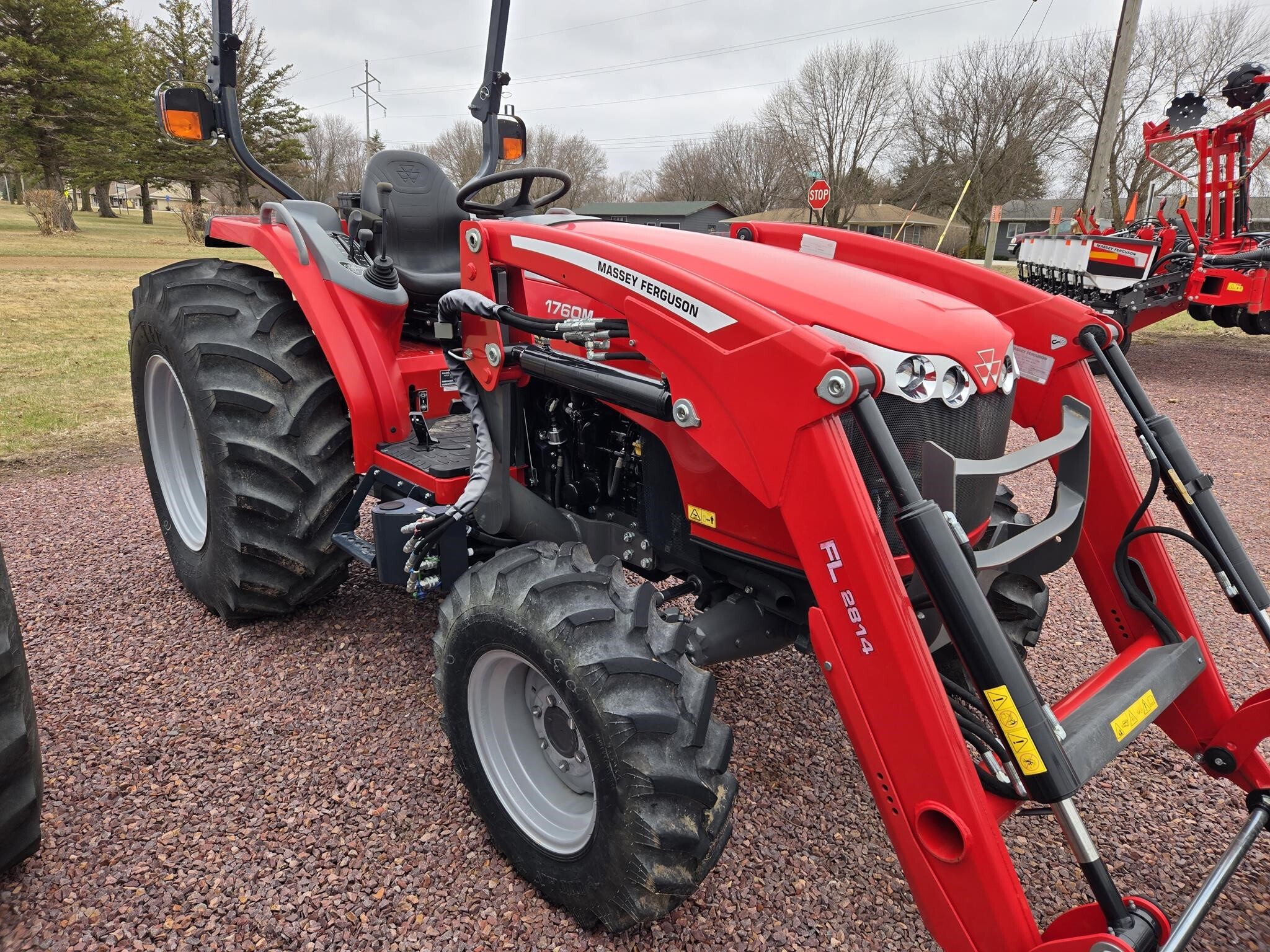

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Massey Ferguson CB85 Backhoe
Backhoe typeMassey Ferguson CB85 BackhoeReference
Transport height216 cmReference
Digging depth258 cmReference
Reach from pivot330 cmReference
Loading height187 cmReference
Swing Arc180°Reference
Bucket force1765 kgReference
Dipperstick force1137 kgReference
Massey Ferguson 1760M Height
Hydro ROPS260 cmReference
Hydro Cab235 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
