Tractor · 2018Unverified

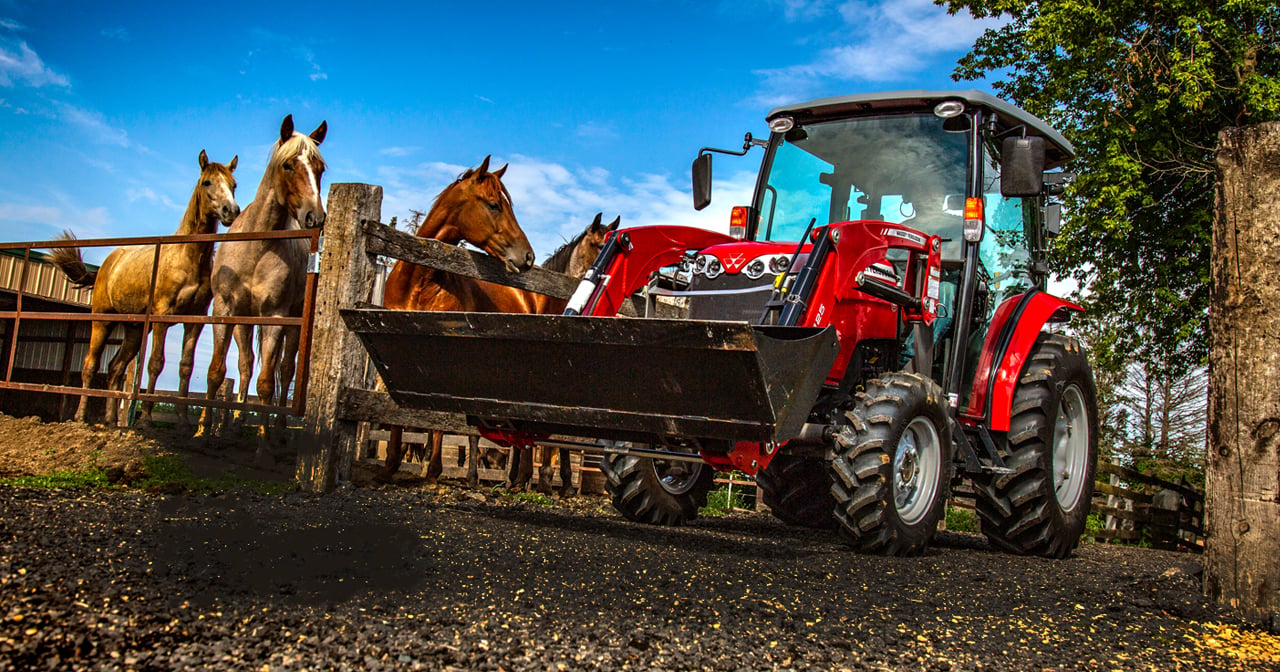

Massey Ferguson 1765M
Massey Ferguson 1765M — Compact Utility tractor · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
3968 to 4674 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesbull gearReference
Differential lockrear standardReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional. Deluxe cab available.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine50.0 kWReference
Shibaura N4LDI-TAReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier IVReference
Emission controlexhaust-gas recirculation and diesel oxidation catalystReference
Power50.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
hydrostaticReference
Gear Length431 cmReference
Gear Width180 cmReference
Cab gear2120 kgReference
Gear ROPS262 cmReference
Gear Cab236 cmReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Four synchronized gears in three ranges with power shuttle.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Typeopen centerReference
Rear valves2Reference
Mid valves2Reference
Pump flow48.1 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Gear Rear lift (at ends)1579 kgReference
Hydro Rear lift (at ends)1599 kgReference
Rear Armstelescopic draft link endsReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type1916Reference
Dimensions
Wheelbase196 cmReference
Weight3968 to 4674 poundsReference
Front tire9.5-16Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference
Optional tires (ag)Front: 280/70R16. Rear: 420/70R24Reference
Lawn/turf front29x12.00-15Reference
Lawn/turf rear475/65D-20Reference
Lawn/turf front280/70R16Reference
Lawn/turf rear420/70R24Reference
Hydro Length335 cmReference
Hydro Width166 cmReference
ROPS hydro1799 kgReference
Cab hydro2024 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Massey Ferguson 1765M Height
Hydro ROPS260 cmReference
Hydro Cab235 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
