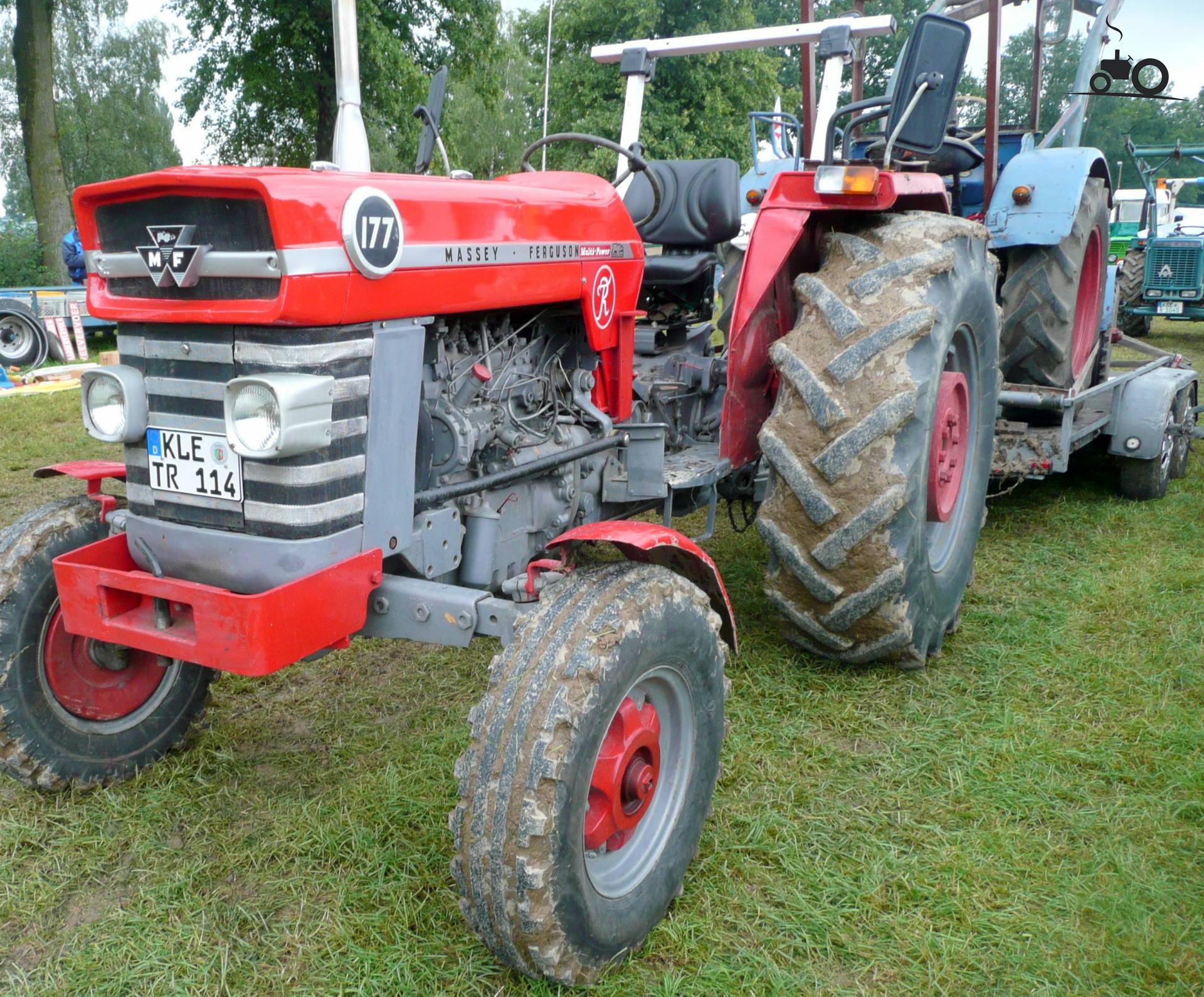

The Massey Ferguson 177 is a tractor model with a rated output of 66 hp, positioning it at the mid-point of its class in terms of power. It was manufactured in 1965. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, which powers the two-wheel drive via a powershift transmission. Its listed weight is 2790 kg, making it suitable for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
2790 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
66 hp
Recorded weight
2790 kg
Transmissions
12-speed partial power shift
Production years
1965-1965
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Open operator station.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine49.2 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power49.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2000Reference
Torque261.8 NmReference
Torque RPM1240Reference
Starter typeelectricReference
Transmission
12-speed partial power shiftReference
6-speed gearReference
TransmissionMulti PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift1529 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1685Reference
Dimensions
Wheelbase213 cmReference
Weight2790 kgReference
Front tire7.50-16Reference
Rear tire12-36Reference
Ag front7.50-16Reference
Ag rear12-36Reference
Ag rear15-30Reference
Length354 cmReference
Width191 cmReference
Height (steering wheel)165 cmReference
Height (exhaust)216 cmReference
Operating weight2790 kgReference
Ground clearance43 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
