Tractor · 1974Unverified

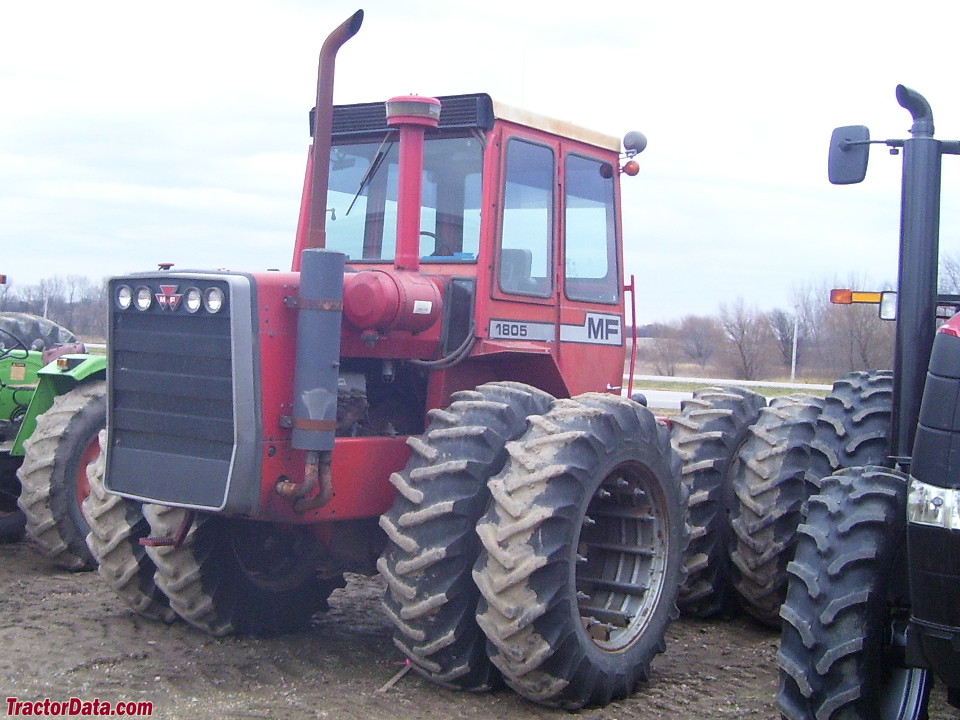

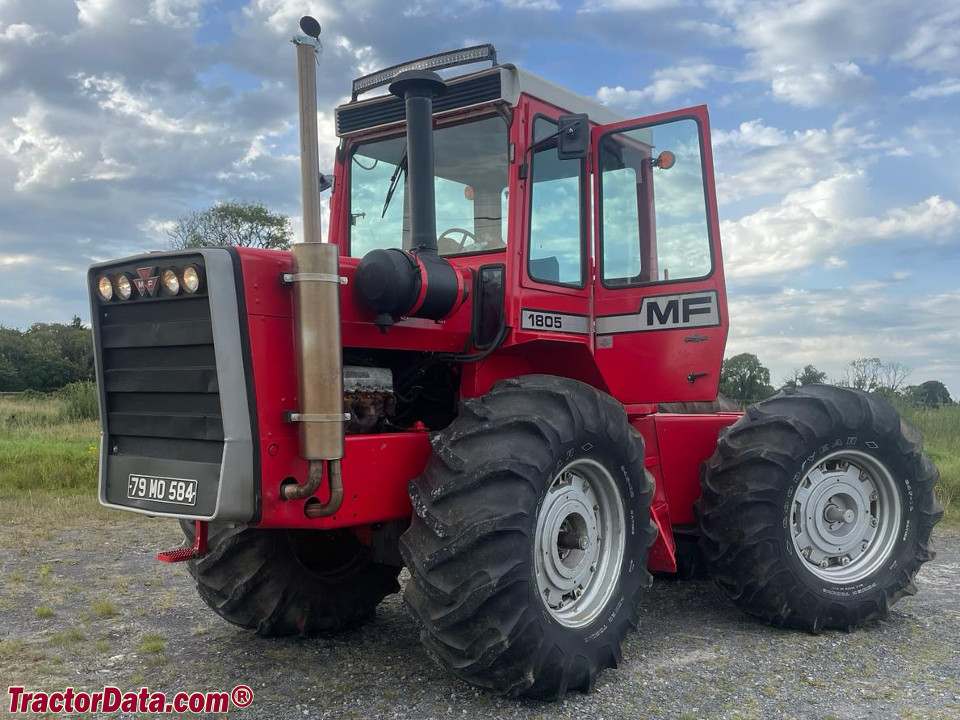

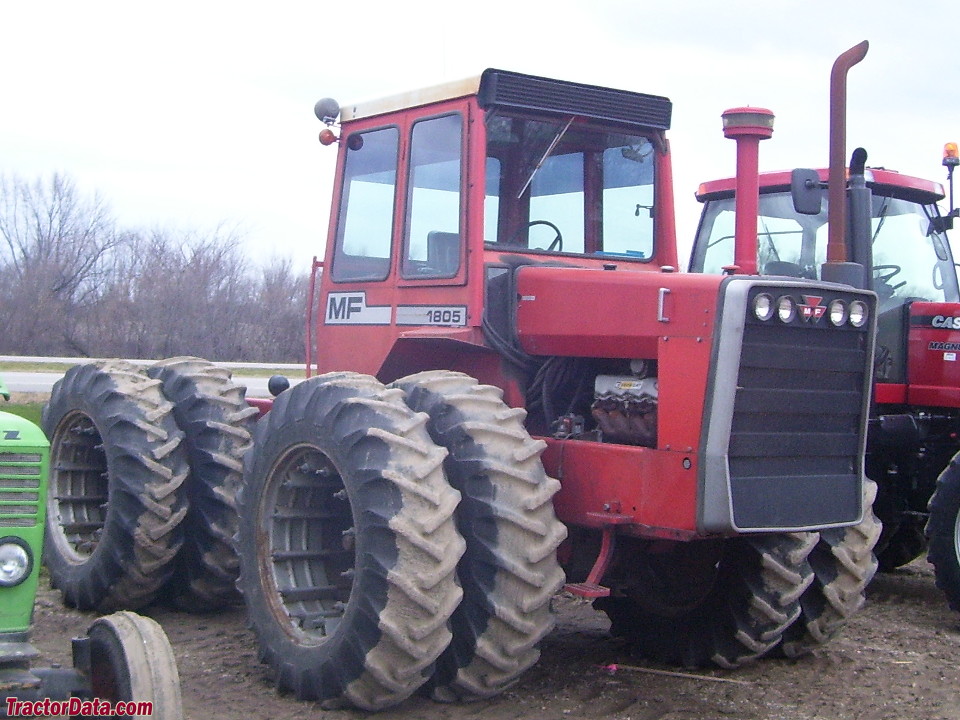

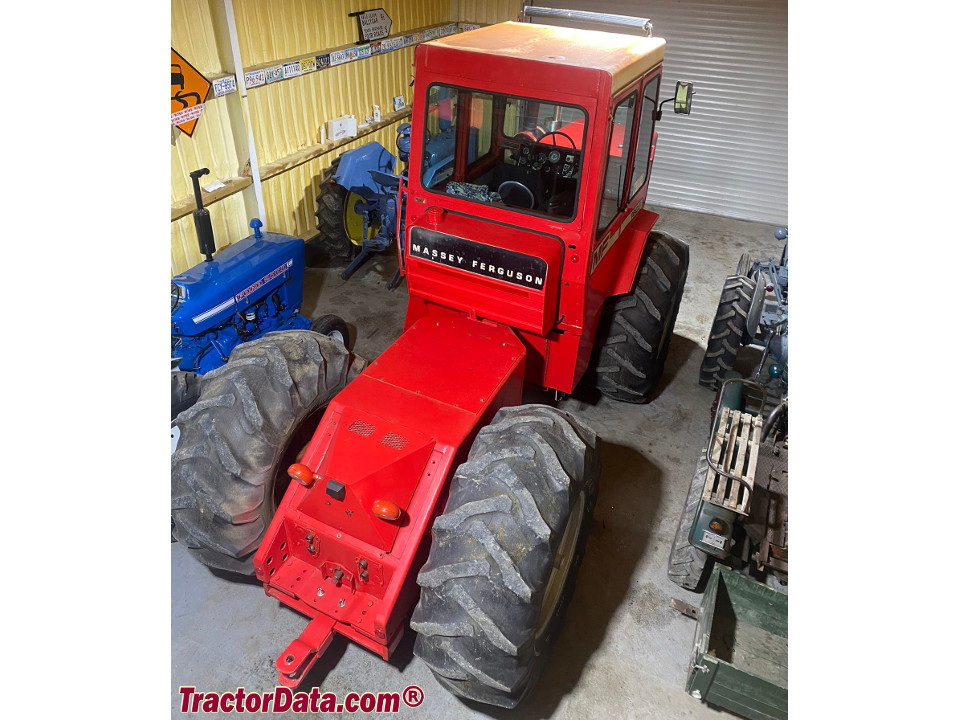

Massey Ferguson 1805
Massey Ferguson 1805 — Four-wheel Drive (4WD) tractor · 193 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
193 hp
Max power
121.5 kW
Weight
8164 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Four-wheel Drive (4WD) tractorReference
Built in Des Moines, Iowa, USAReference
Original price was $38,500 in 1977Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic expanding shoe brakesReference
Cab standard, optional heat and air-conditioning.Reference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Engine156.6 kWReference
Drawbar (tested)121.5 kWReference
Caterpillar 3208Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power156.6 kWReference
Air cleanerpaper element with unloaderReference
Compression16.5:1Reference
Rated RPM2800Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity45.0 LReference
Power at rated engine speed143.7 kWReference
Max power121.5 kWReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)143.9 kWReference
PTO (tested)143.7 kWReference
Hydraulic system56.8 LReference
Capacity56.8 LReference
Valves2 or 3Reference
Pump flow94.6 lpmReference
Total flow189.2 lpmReference
Rear TypeoptionalReference
Rear PTOoptionalReference
Rear PTO Type1000Reference
Power at rated PTO speed142.9 kWReference
Capacities
Fuel454.2 LReference
Dimensions
Wheelbase304 cmReference
Weight8164 kgReference
Front tire23.1-30Reference
Rear tire23.1-30Reference
Ag front23.1-30Reference
Ag rear23.1-30Reference
Ag front18.4-38Reference
Ag front24.5-32Reference
Ag front23.1-34Reference
Ag front30.5-32Reference
Ag front15.5-38Reference
Ag front16.9-34Reference
Ag front18.4-34Reference
Ag front18.4-30Reference
Ag rear18.4-38Reference
Ag rear24.5-32Reference
Ag rear23.1-34Reference
Ag rear30.5-32Reference
Ag rear15.5-38Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear18.4-30Reference
Length568 cmReference
Height (cab)332 cmReference
Operating weight8164 kgReference
Ballasted weight10337 kgReference
Front tread172 to 223 cmReference
Rear tread172 to 223 cmReference
1805 Serial Numbers
Location:Plate on instrument panel.Reference
19749C003184Reference
19759C004227Reference
19769C006806Reference
19779C007858Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDApril 3 - 23, 1975Link: Nebraska Tractor Test 1173 fileReference
PTO performanceReference
Fuel use49.2 l/hourReference
Drawbar performanceReference
Fuel use48.4 l/hourReference
Max pull8519 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
