Tractor · 2020Unverified

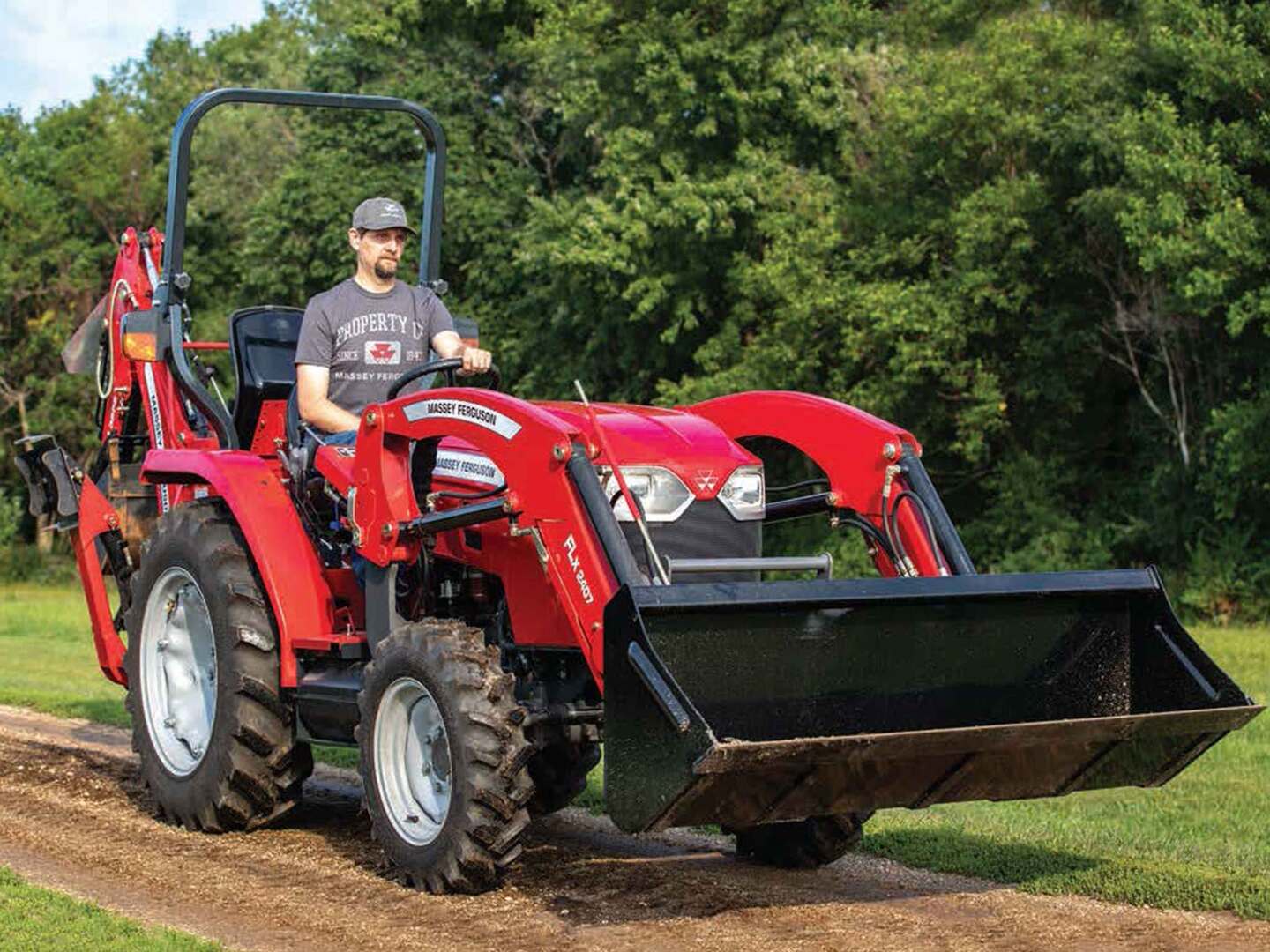

Massey Ferguson 1825E

Name: Massey Ferguson 1825E
Brand: Massey Ferguson

Massey Ferguson 1825E — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The Massey Ferguson 1825E is a tractor model with an output of approximately 20 hp, positioning it at the lighter end of its class. It was manufactured from 2020 to 2024. The tractor features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a hydrostatic transmission. Its operating weight is listed at 1210 kg, with a suitable operating area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1210 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

20 hp

Recorded weight

1210 kg

Transmissions

8-speed mechanical shuttle

Production years

2020-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Compact Utility tractorReference

Original price$15,991 (2020 gear )Reference

Original price$16,839 (2020 hydro )Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank37.9 LReference

Engine17.9 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke87 x 84 mmReference

EmissionsTier IVReference

Power17.9 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed mechanical shuttleReference

hydrostaticReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)15.2 kWReference

Hydro PTO (claimed)14.3 kWReference

Typeopen centerReference

Pump flow27.6 lpmReference

Total flow41.3 lpmReference

Steering flow13.6 lpmReference

Rear TypeIReference

Rear lift (at ends)1000 kgReference

Rear lift (at 24"/610mm)724 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Weight1210 kgReference

Front tire7-16Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Industrial front27x8.50-15Reference

Industrial rear15x19.5Reference

Length295 cmReference

Width133 cmReference

Height247 cmReference

Ground clearance27 cmReference

Massey Ferguson 1825E attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
