Tractor · 2020Unverified

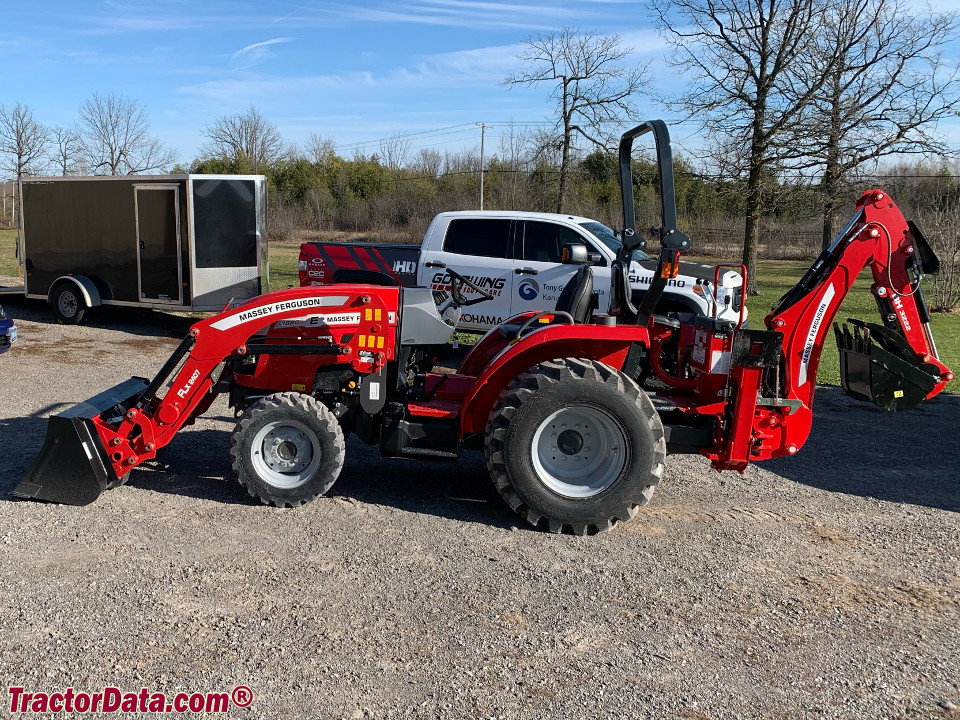

Massey Ferguson 1835E
Massey Ferguson 1835E — Compact Utility tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1305 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.8L 3-cyl dieselReference
Fuel tank37.9 LReference
Engine25.7 kWReference
IsekiReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
EmissionsTier IVReference
Power25.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
hydrostaticReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)21.8 kWReference
Hydro PTO (claimed)20.6 kWReference
Typeopen centerReference
Pump flow28.8 lpmReference
Total flow43.1 lpmReference
Steering flow14.4 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear lift (at 24"/610mm)724 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1305 kgReference
Length295 cmReference
Width133 cmReference
Height247 cmReference
Ground clearance27 cmReference
Massey Ferguson 1835E attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
