Tractor · 1980Unverified

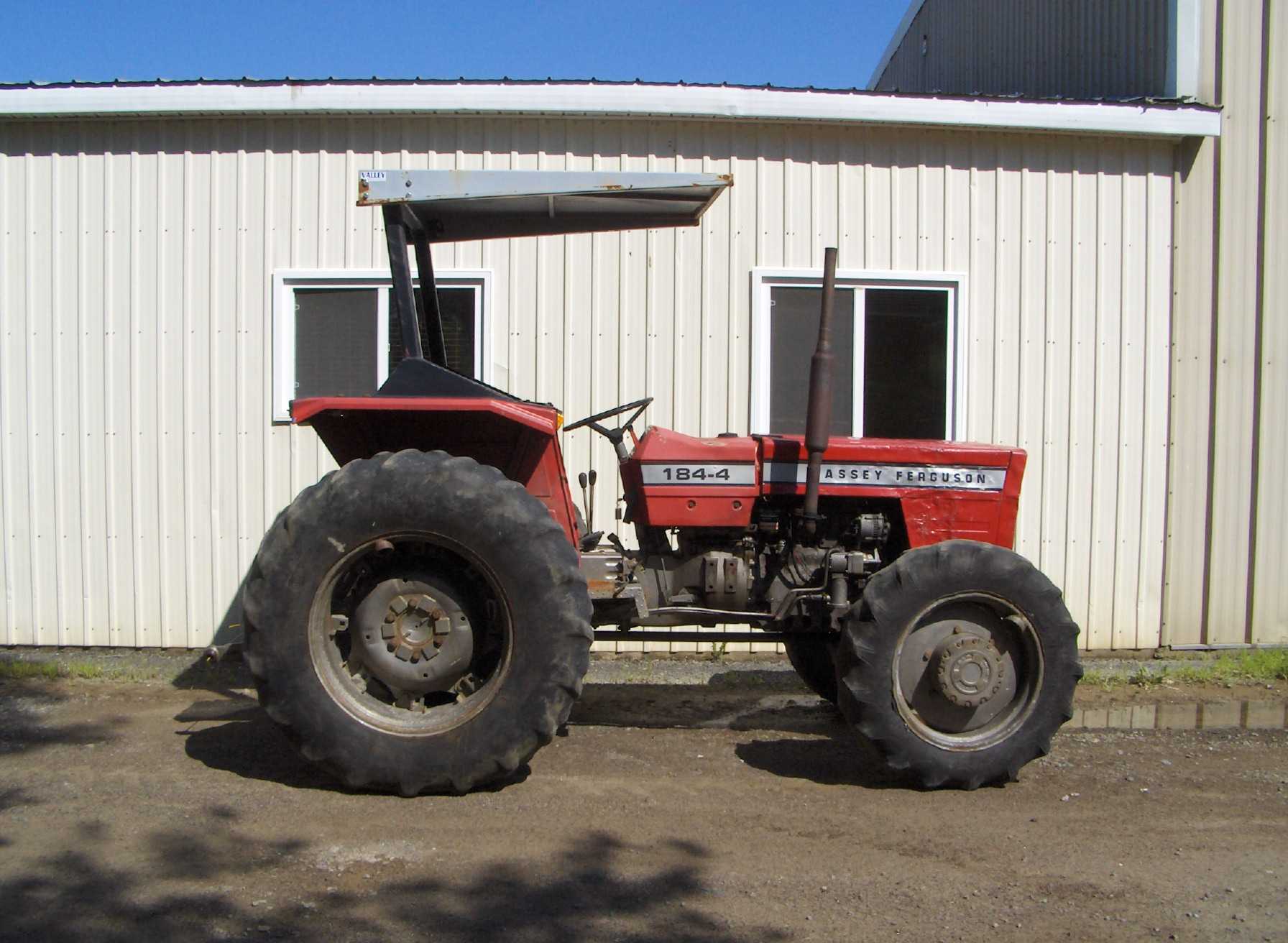

Massey Ferguson 184
Massey Ferguson 184 — 104 Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Max power
38.1 kW
Weight
2490 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Utility tractorReference
Built in ItalyReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Dry disc brakesReference
Open operator station. Cab optional.Reference
Variants
1842WDReference
184-44WDReference
184SvineyardReference
7500similar Landini modelReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine50.7 kWReference
Drawbar (tested)38.1 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power50.7 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM650-2390Reference
Torque251.0 NmReference
Torque RPM1300Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity15.0 LReference
Power at rated engine speed46.6 kWReference
Max power38.1 kWReference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)46.6 kWReference
Typeopen centerReference
Pressure166.5 barReference
Pump flow28.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2649 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1916Reference
Power at rated PTO speed44.4 kWReference
Dimensions
Wheelbase224 cmReference
Weight2490 kgReference
Front tire7.50-16Reference
Rear tire16.9/14-30Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
Optional tires (ag)Front: 7.50-16. Rear: 13.6/12-36Reference
Length362 cmReference
Width172 cmReference
Clearance (front axle)52 cmReference
Front tread139 to 189 cmReference
Rear tread130 to 199 cmReference
Steering wheel164 cmReference
Massey Ferguson 184 attachments
front-end loaderReference
184 Serial Number Location
Serial number stamped into the rear of the tractor, above and to the left of the PTO shaft.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH92Reference
Massey Ferguson 184 Height
Hood143 cmReference
ROPS229 cmReference
Test results
Diesel 12-speed 4WDMay 11 - 20, 1981Link: Nebraska Tractor Test 1392 fileReference
PTO performanceReference
Fuel use15.5 l/hourReference
Fuel use13.6 l/hourReference
Drawbar performanceReference
Fuel use15.1 l/hourReference
Gear 9 used for power test.Reference
Max pull3223 kgReference
Gear 5 used for pull test.Reference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
