Tractor · 1972Unverified

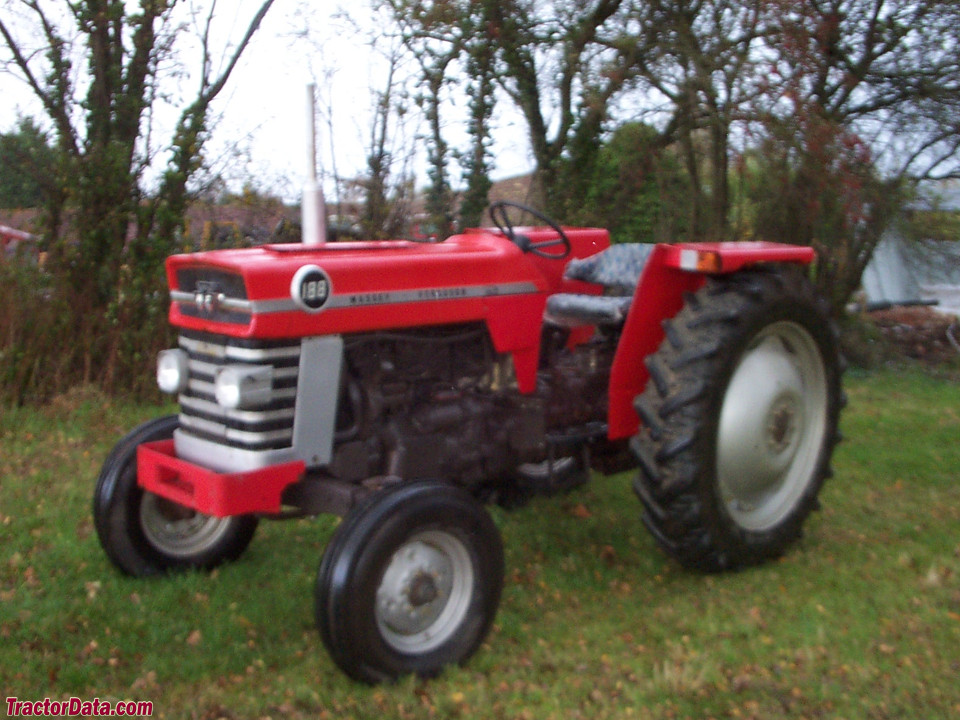

Massey Ferguson 188
Massey Ferguson 188 · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
7231 to 8422 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Two- or four-wheel driveReference
Steeringpower assistReference
Differential mechanical wet disc brakesReference
Open operator station.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Engine55.9 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power55.9 kWReference
Air cleanerdry elementReference
Compression16:1Reference
Rated RPM2070Reference
Torque299.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.9 LReference
Coolant capacity13.3 LReference
Transmission
12-speed partial powershiftReference
8-speed unsynchronizedReference
TransmissionMulti PowerReference
Typepartial powershiftReference
Gears12 forward and 4 reverseReference
Clutchdry plateReference
Oil capacity28.4 LReference
TypeunsynchronizedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Hydraulic system28.4 LReference
Capacity28.4 LReference
Total flow42.8 lpmReference
Rear TypeIIReference
Rear lift2063 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel85.9 LReference
Dimensions
Wheelbase228 cmReference
Wheelbase245 cmReference
Weight7231 to 8422 poundsReference
Front tire8.25-16Reference
Rear tire16.9-34Reference
Ag front8.25-16 (2WD)Reference
Ag front11.5-24 (4WD)Reference
Ag rear16.9-34Reference
Length360 cmReference
Width191 cmReference
Height (steering wheel)170 cmReference
Operating weight3279 kgReference
Operating weight3820 kgReference
Clearance (front axle)40 cmReference
Clearance (front axle)35 cmReference
Front tread149 to 177 cmReference
Rear tread142 to 223 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH125Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
