Tractor · 1977Unverified

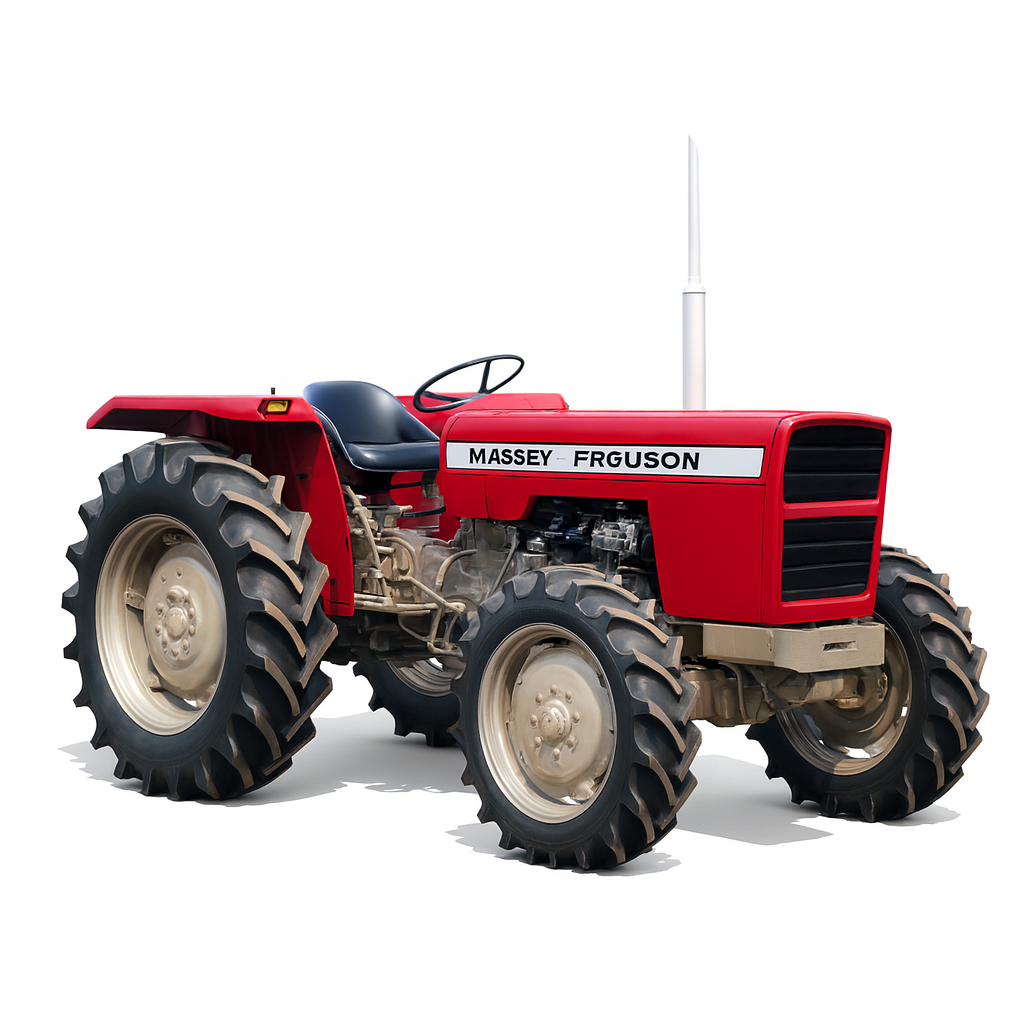

Massey Ferguson 194
Massey Ferguson 194 — 104 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6041 to 6570 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry disc brakesReference
Open operator station. Cab optional.Reference
Variants
1942WDReference
194-44WDReference
8500similar Landini modelReference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine55.9 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power55.9 kWReference
Fuel systemdirect injectionReference
Compression16:1Reference
Rated RPM2100Reference
Idle RPM650-22600Reference
Torque280.0 NmReference
Torque RPM1380Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity15.0 LReference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure166.7 barReference
Total flow28.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2649 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1916Reference
Dimensions
2WD Wheelbase230 cmReference
4WD Wheelbase227 cmReference
Weight6041 to 6570 poundsReference
Front tire7.50-20Reference
2WD Rear tire18.4/15-30Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 18.4/15-30Reference
4WD Standard tires (ag)Front: 12.4/11-24. Rear: 18.4/15-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 16.9/14-30Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 16.9/14-34Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 13.6/12-38Reference
4WD Optional tires (ag)Front: 11.2/10-24. Rear: 16.9/14-30Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 16.9/14-34Reference
4WD Optional tires (ag)Front: 12.4/11-24. Rear: 13.6/12-38Reference
2WD Length372 cmReference
4WD Length383 cmReference
Width177 cmReference
2WD Weight2740 kgReference
4WD Weight2980 kgReference
2WD Clearance (front axle)56 cmReference
4WD Clearance (front axle)41 cmReference
2WD Front tread139 to 189 cmReference
4WD Front tread155 cmReference
Rear tread130 to 202 cmReference
Steering wheel166 cmReference
Massey Ferguson 194 attachments
front-end loaderReference
194 Serial Number Location
Serial number stamped into the rear of the tractor, above and to the left of the PTO shaft.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Massey Ferguson 194 Height
Hood145 cmReference
ROPS235 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
