Tractor · 1986Unverified

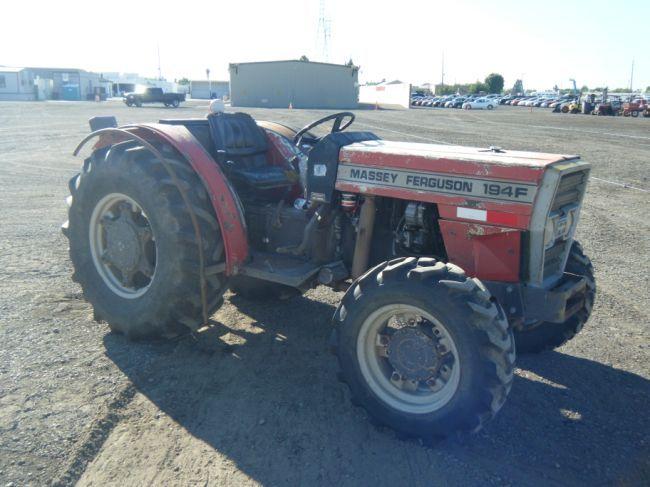

Massey Ferguson 194F
Massey Ferguson 194F — Orchard/Vineyard tractor · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
5104 to 5357 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Open operator station.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Air cleanerdryReference
Pre-heatingthermostartReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity15.1 LReference
Transmission
12-speed partially synchronizedReference
20-speed creeperReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch279.4mm dry discReference
Oil capacity37.9 LReference
Four synchronized gears in three ranges, plus reverse range.Reference
TypecreeperReference
Gears20 forward and 8 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)50.7 kWReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity37.9 LReference
Rear valves2Reference
Pump flow34.1 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel60.6 LReference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase201 cmReference
Weight5104 to 5357 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-24Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-24Reference
2WD Standard tires (ag)Front: 10.5-18. Rear: 16.9-24Reference
Length344 cmReference
Width155 cmReference
Height (steering wheel)139 cmReference
2WD Weight2315 kgReference
4WD Weight2429 kgReference
2WD Ground clearance40 cmReference
4WD Ground clearance37 cmReference
2WD Front tread124 to 164 cmReference
4WD Front tread124 to 154 cmReference
Rear tread114 to 168 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
