Tractor · 2025Unverified

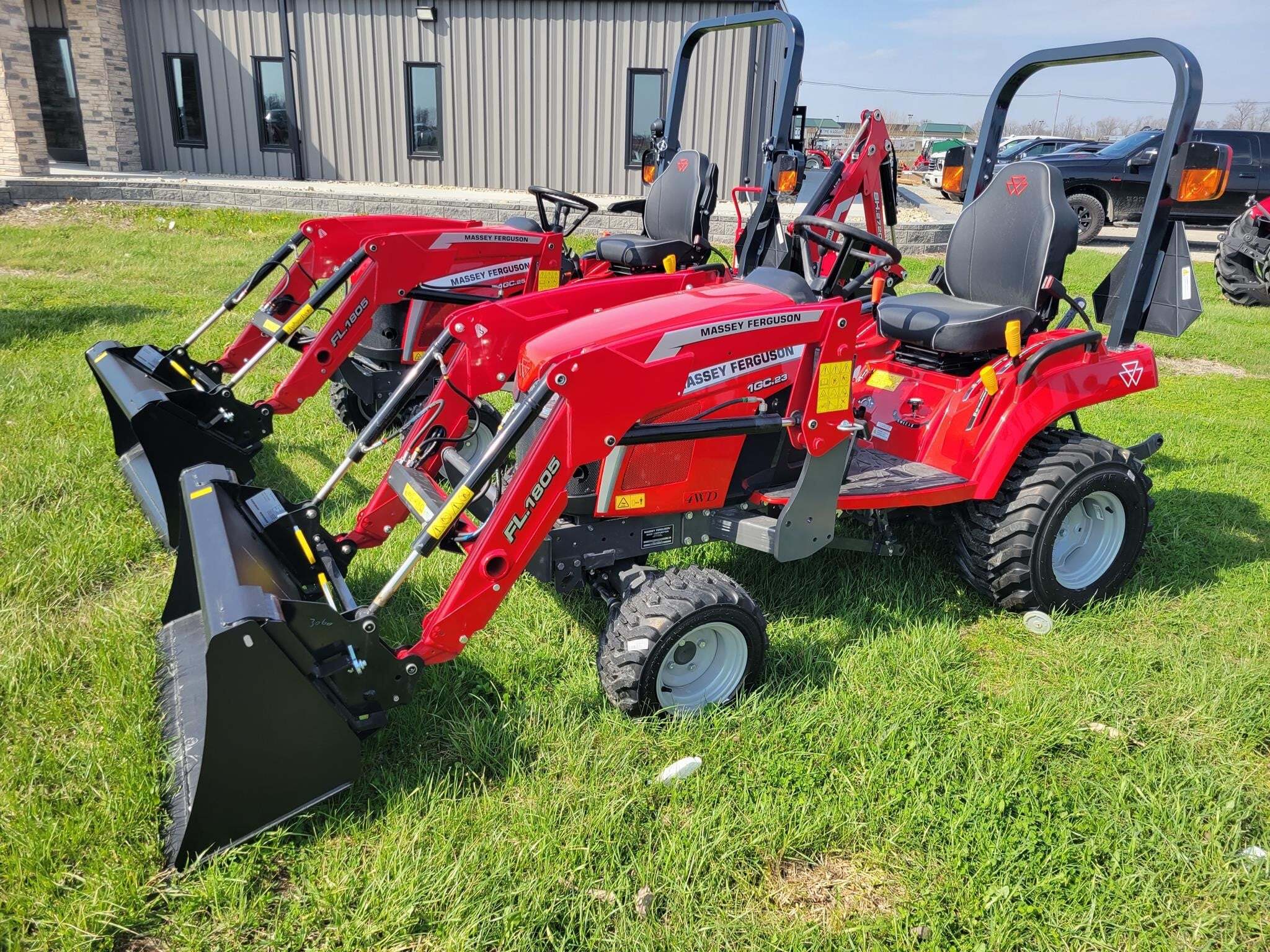

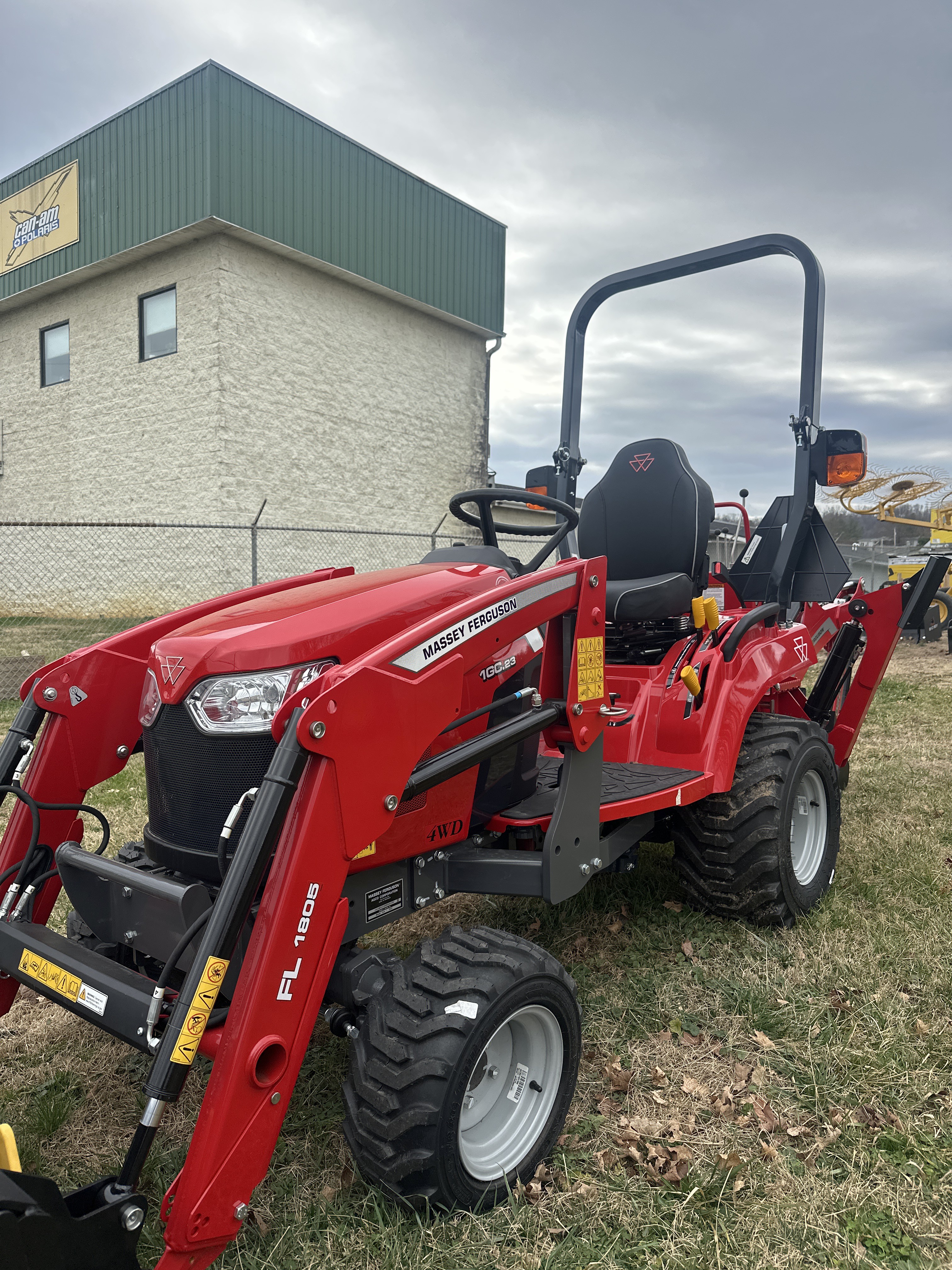

Massey Ferguson 1GC.23
Massey Ferguson 1GC.23 — 1GC Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post fixed ROPS. Folding ROPS on 1GC23.B model.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine16.8 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power16.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)13.6 kWReference
Typeopen centerReference
Pump flow22.7 lpmReference
Rear TypeIReference
Rear lift (at ends)540 kgReference
Rear lift (at 24"/610mm)299 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000 (1.0)Reference
Dimensions
Front tire18x8.50-10Reference
Rear tire26x12.00-12Reference
Standard tires (ag)Front: 18x8.50-10. Rear: 26x12.00-12Reference
Height (ROPS)184 cmReference
Height (ROPS)217 cmReference
Massey Ferguson 1GC.23 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
1GC.23 Serial Numbers
Location:Serial number decal on the left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference

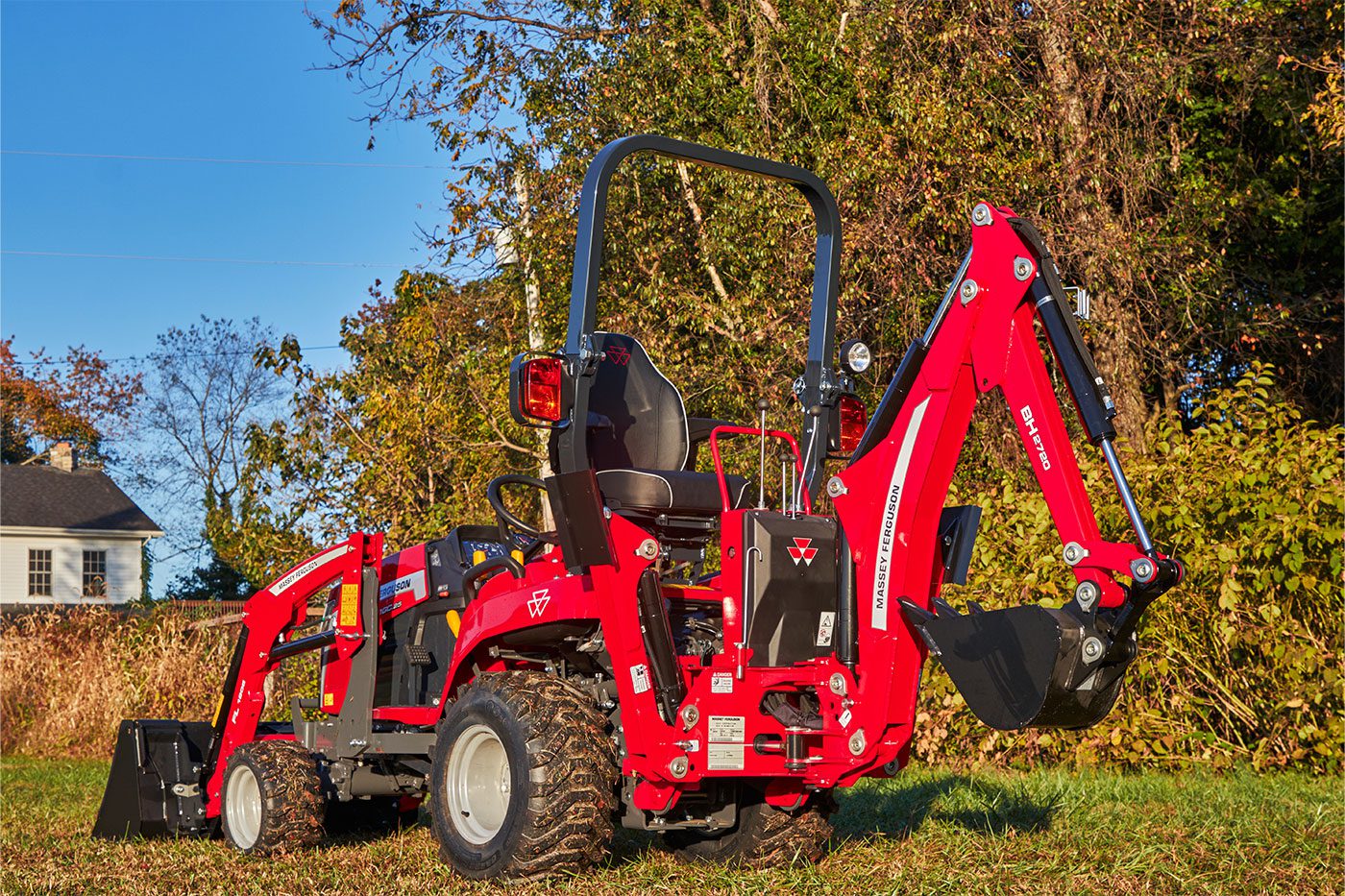

Massey Ferguson BH2720 Backhoe
Backhoe typeMassey Ferguson BH2720 BackhoeReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Digging depth193 cmReference
Reach from pivot271 cmReference
Loading height167 cmReference
Bucket Rotation177°Reference
Swing Arc150°Reference
Bucket force990 kgReference
Dipperstick force698 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
