Tractor · 2025Unverified

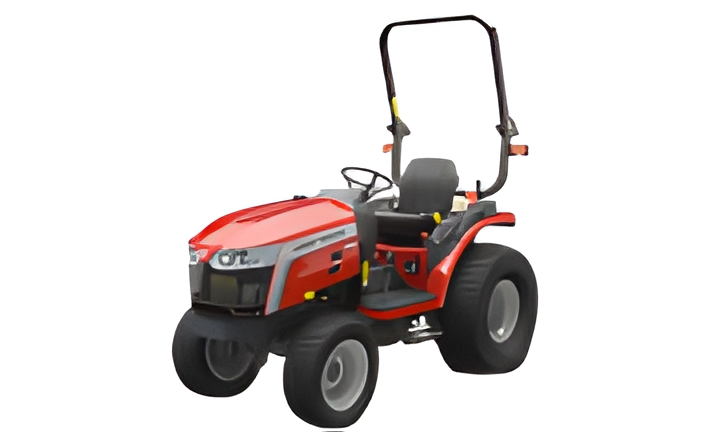

Massey Ferguson 1M.25
Massey Ferguson 1M.25 — 1M Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
2151 to 2502 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Engine18.5 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power18.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
hydrostaticReference
Typepower shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)15.0 kWReference
Typeopen centerReference
Pump flow20.8 lpmReference
Steering flow12.5 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)479 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight2151 to 2502 poundsReference
Height (ROPS)246 cmReference
Height (cab)208 cmReference
ROPS Weight975 kgReference
Cab Weight1134 kgReference
Massey Ferguson 1M.25 attachments
60" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
60" Mower deck
Typemid-mount Massey Ferguson 1506Reference
Cutting width152 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
