Tractor · 2025Unverified

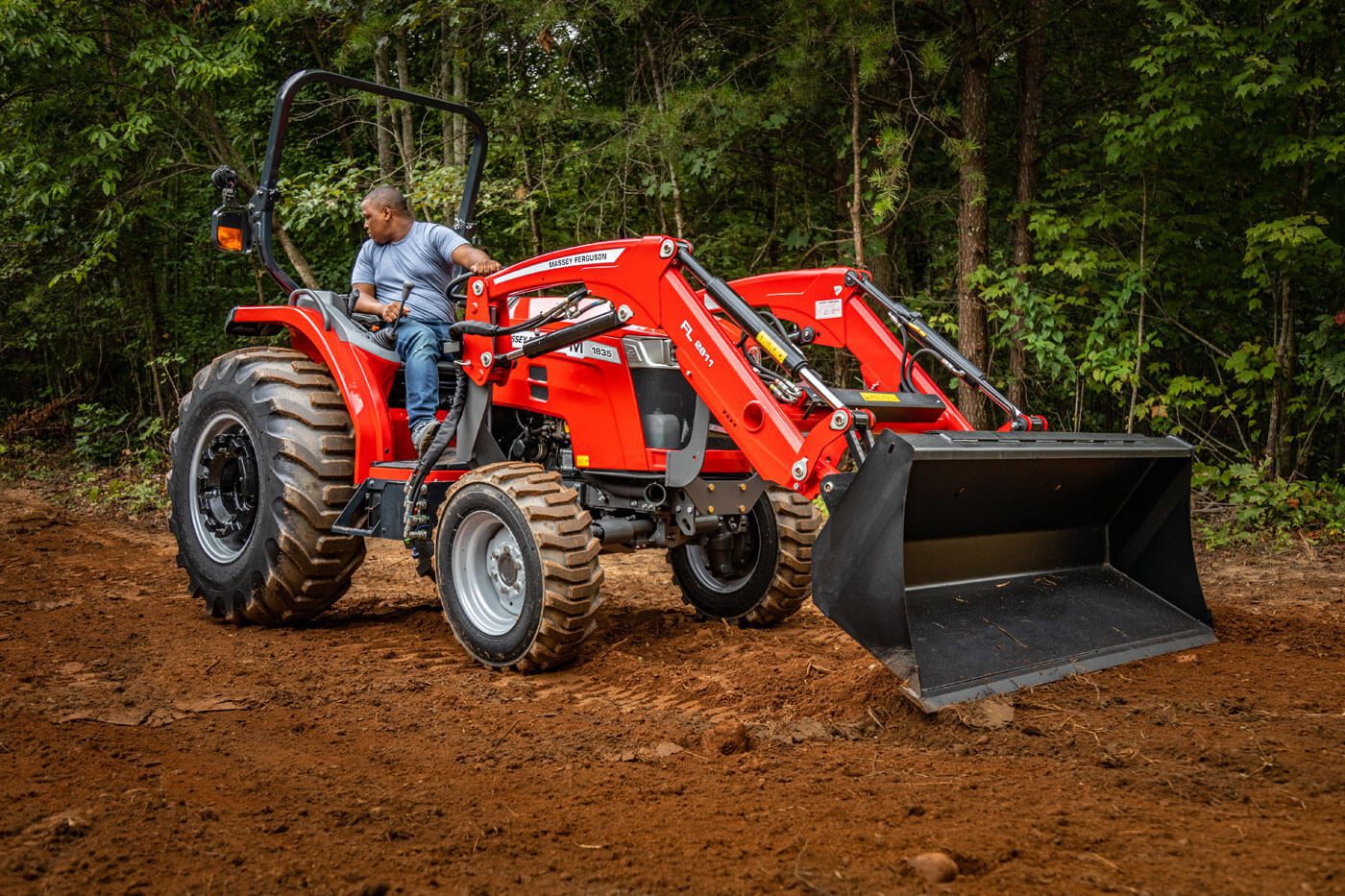

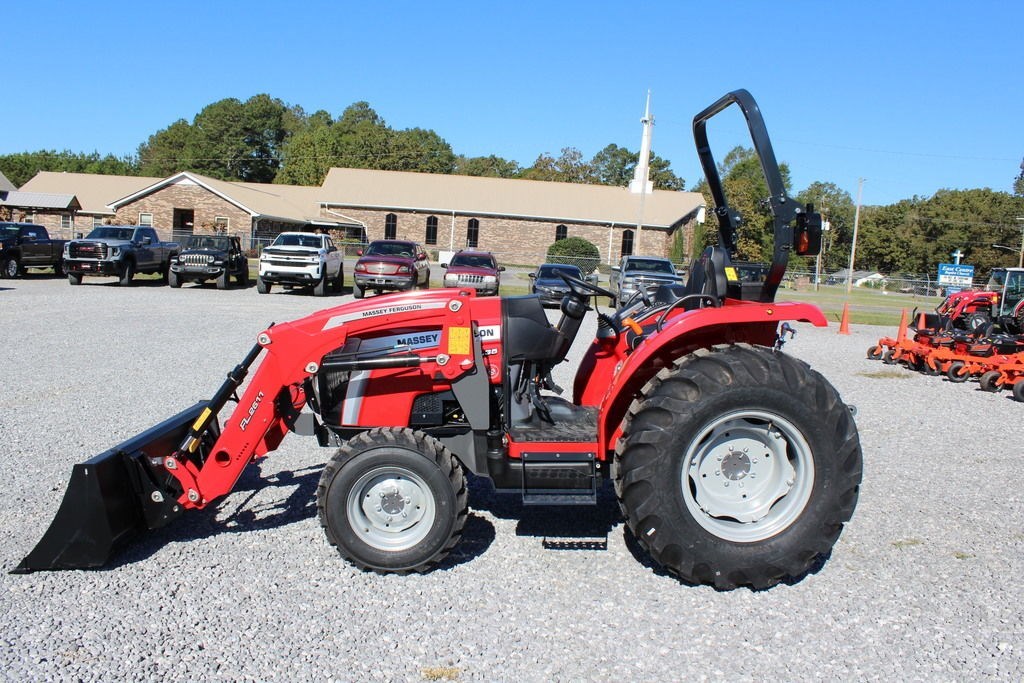

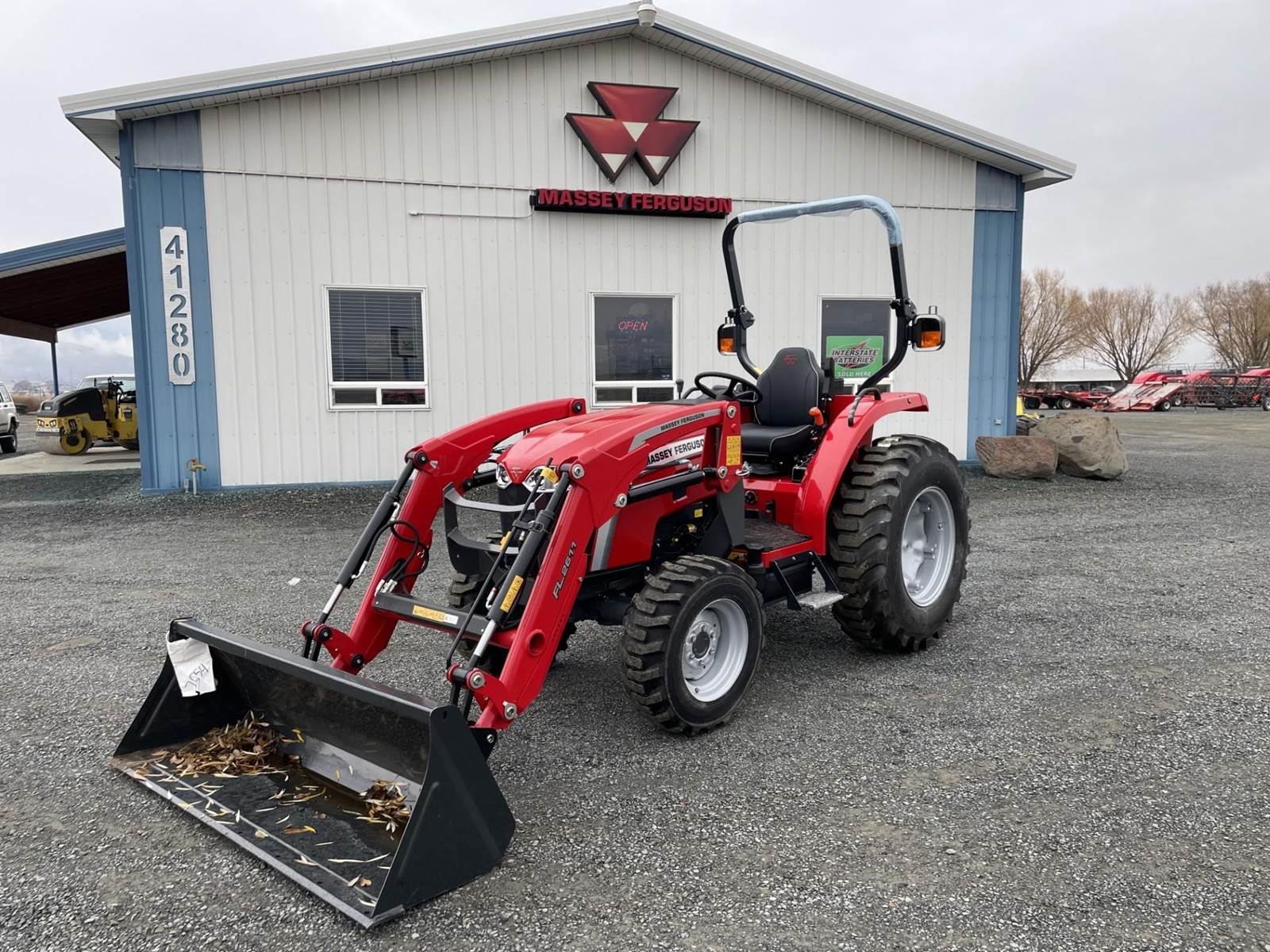

Massey Ferguson 1M.35

Name: Massey Ferguson 1M.35
Brand: Massey Ferguson

Massey Ferguson 1M.35 — 1M Series · 28 hp. Reference specifications; pending source verification.

The Massey Ferguson 1M.35 is a compact tractor with a rated output of 28 hp, produced in 2025. It is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine and features a hydrostatic transmission with four-wheel drive. The listed weight of the tractor is 3472 to 3858 pounds. It is designed for use on small to medium-sized plots of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Weight

3472 to 3858 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

28 hp

Recorded weight

1574 kg

Transmissions

12-speed power shuttle

Production years

2025-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Iseki 1.8L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine27.0 kWReference

IsekiReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

Emission controlEGR, DOC and DPFReference

Power27.0 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed power shuttleReference

hydrostaticReference

Typepower shuttleReference

Gears12 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)20.5 kWReference

Hydro PTO (claimed)19.2 kWReference

Typeopen centerReference

Pump flow47.7 lpmReference

Steering flow26.5 lpmReference

Rear TypeIReference

Rear lift (at ends)1270 kgReference

Rear lift (at 24"/610mm)1149 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Weight3472 to 3858 poundsReference

Length309 cmReference

Width171 cmReference

Height (ROPS)251 cmReference

Height (cab)231 cmReference

ROPS Weight1574 kgReference

Cab Weight1749 kgReference

Ground clearance36 cmReference

Massey Ferguson 1M.35 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Massey Ferguson CB75 Backhoe

Backhoe typeMassey Ferguson CB75 BackhoeReference

Transport height193 cmReference

Bucket width25 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Digging depth233 cmReference

Reach from pivot304 cmReference

Loading height177 cmReference

Bucket Rotation174°Reference

Swing Arc175°Reference

Bucket force1397 kgReference

Dipperstick force914 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
