Tractor · 1978Unverified

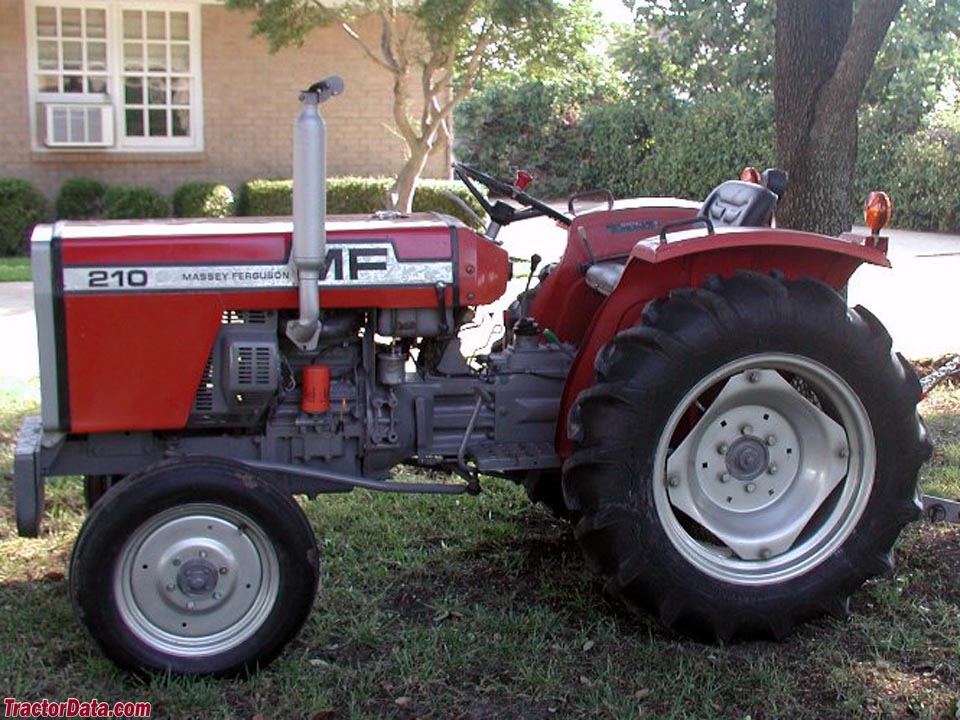

Massey Ferguson 210
Massey Ferguson 210 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Max power
12.9 kW
Weight
2325 to 3180 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in Osaka, JapanReference
Original price was $7,800 in 1984Reference
The Massey-Ferguson 210 is similar to the Allis 5020, the Simplicity 9523, and the Hinomoto E23.Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. Two-post fixed ROPS available.Reference
Variants
2102WDReference
210-44WDReference
Engine
Toyosha 1.3L 2-cyl dieselReference
Fuel tank26.9 LReference
Engine18.6 kWReference
Drawbar (tested)12.9 kWReference
Toyosha P126Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke92 x 95 mmReference
Power18.6 kWReference
Fuel systemindirect injectionReference
Air cleanerpaper elementReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
Torque73.2 NmReference
Torque RPM1800Reference
Starter volts12Reference
Oil capacity4.0 LReference
Coolant capacity5.0 LReference
Power at rated engine speed16.4 kWReference
Max power12.9 kWReference
Power at rated engine speed16.2 kWReference
Max power12.8 kWReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 3 reverseReference
Clutch215mm mechanical dry discReference
2WD Oil capacity21.0 LReference
4WD Oil capacity26.0 LReference
Four gears (1-4), plus reverse (R), in three ranges (low, medium, and high).Reference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
PTO (tested)16.4 kWReference
Typeopen centerReference
Pressure117.2 barReference
Pump flow20.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2327Reference
Front PTOindependentReference
Clutchelectro-magneticReference
Power at rated PTO speed15.8 kWReference
Power at rated PTO speed15.7 kWReference
Dimensions
2WD Wheelbase153 cmReference
4WD Wheelbase150 cmReference
Weight2325 to 3180 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2/10-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2/10-24Reference
4WD Standard tires (ag)Front: 6.00-14. Rear: 11.2/10-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
2WD Width127 cmReference
4WD Width131 cmReference
2WD Height (steering wheel)134 cmReference
4WD Height (steering wheel)145 cmReference
2WD Front tread101 to 132 cmReference
4WD Front tread100 cmReference
Rear tread99 to 129 cmReference
2WD Shipping1054 kgReference
4WD Shipping1179 kgReference
2WD Operating1253 kgReference
4WD Operating1442 kgReference
Massey Ferguson 210 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
front-end loaderReference
210 Serial Numbers
Location:Serial number plate under the tractor instrument panel.Reference
197800101Reference
197900961Reference
198001711Reference
198102700Reference
198203892Reference
198304231Reference
198404902Reference
197900101 (4WD)Reference
198000711 (4WD)Reference
198100764 (4WD)Reference
198201595 (4WD)Reference
198301915 (4WD)Reference
198402209 (4WD)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps15Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
The Woods mid-mount mowers were not capatible with the four-wheel drive 210.Reference
Test results
NTTL 1365: diesel 12-speed 2WDReference
NTTL 1366: diesel 12-speed 4WDReference
Diesel 12-speed 2WDSeptember 15 - 24, 1980Link: Nebraska Tractor Test 1365 fileReference
PTO performanceReference
Fuel use6.1 l/hourReference
Drawbar performanceReference
Max pull979 kgReference
Diesel 12-speed 4WDSeptember 17 - October 2, 1980Link: Nebraska Tractor Test 1366 fileReference
Fuel use6.4 l/hourReference
Gear 10 used for power test.Reference
Max pull7 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
