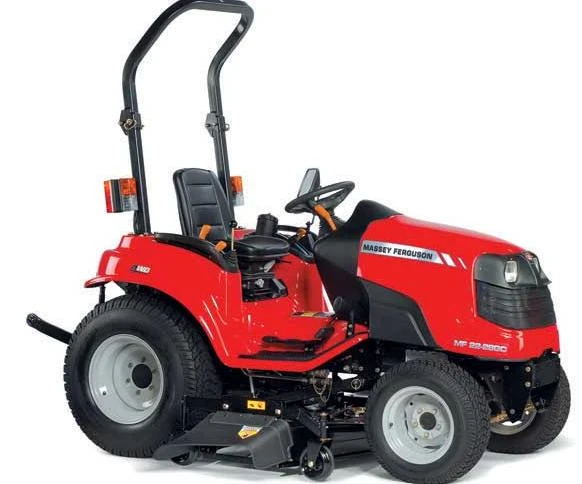

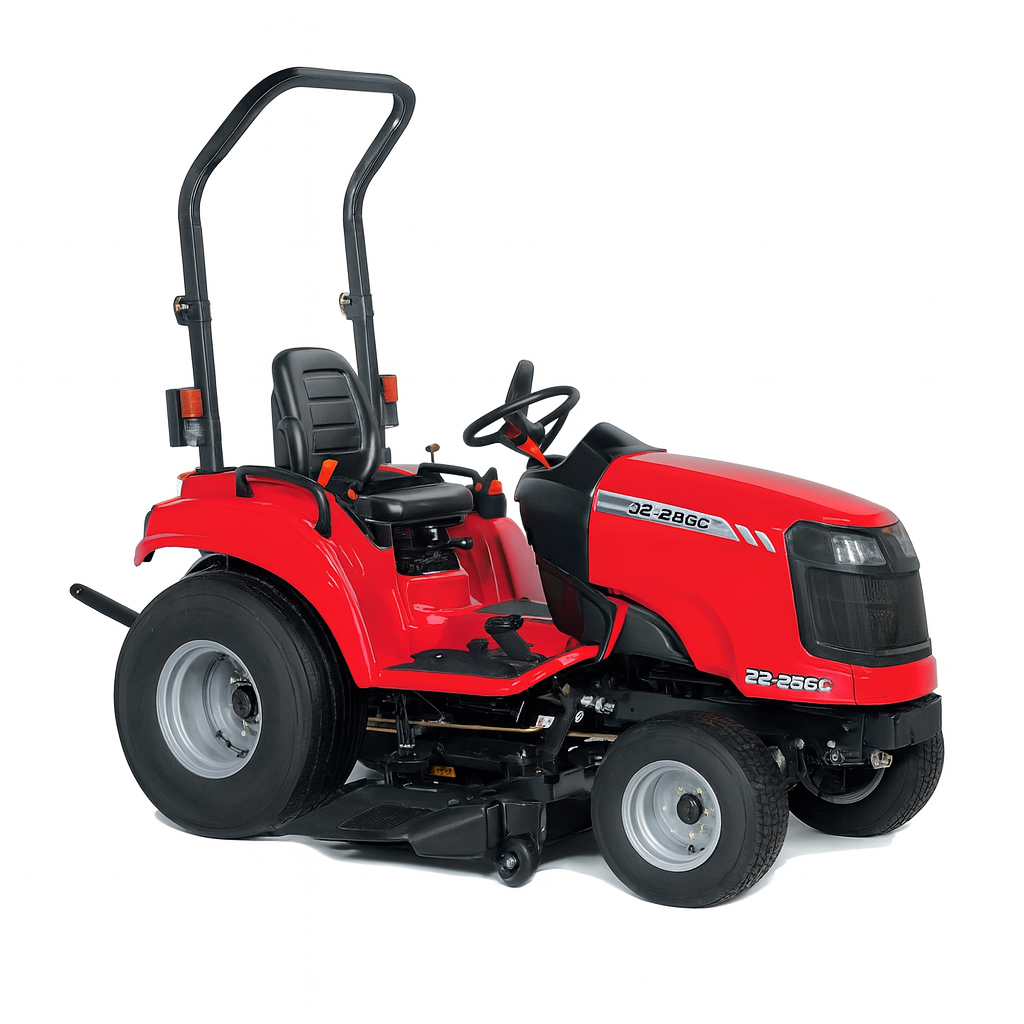

The Massey Ferguson 22-28GC is a compact tractor, rated at 21 hp, making it suitable for smaller-scale farming operations. Manufactured from 2007 to 2009, it features a 3-cylinder diesel liquid-cooled engine and a hydrostatic transmission with four-wheel drive. The listed weight is 908 kg and it is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
908 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
21 hp
Recorded weight
908 kg
Transmissions
hydrostatic
Production years
2007-2009
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
DistributorMassey Ferguson (a part of AGCO)Reference
ManufacturerMTDReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Final drivesmechanical rearReference
Two-post folding ROPS.Reference
Engine
Perkins 1.1L 3-cyl dieselReference
Fuel tank22.7 LReference
Engine20.9 kWReference
PerkinsReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power20.9 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
Rear TypeIReference
Rear lift (at ends)522 kgReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase147 cmReference
Weight908 kgReference
Lawn/turf front23z9.50-12Reference
Lawn/turf rear31z12.00-15Reference
Length264 cmReference
Width124 cmReference
Height219 cmReference
Massey Ferguson 22-28GC attachments
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
