Tractor · 1978Unverified
Massey Ferguson 220
Massey Ferguson 220 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Max power
16.9 kW
Weight
2600 to 3180 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerToyoshaReference
Compact Utility tractorReference
Built in Osaka, JapanReference
Original price was $8,500 in 1984Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. Two-post fixed ROPS available.Reference
Variants
2202WDReference
220-44WDReference

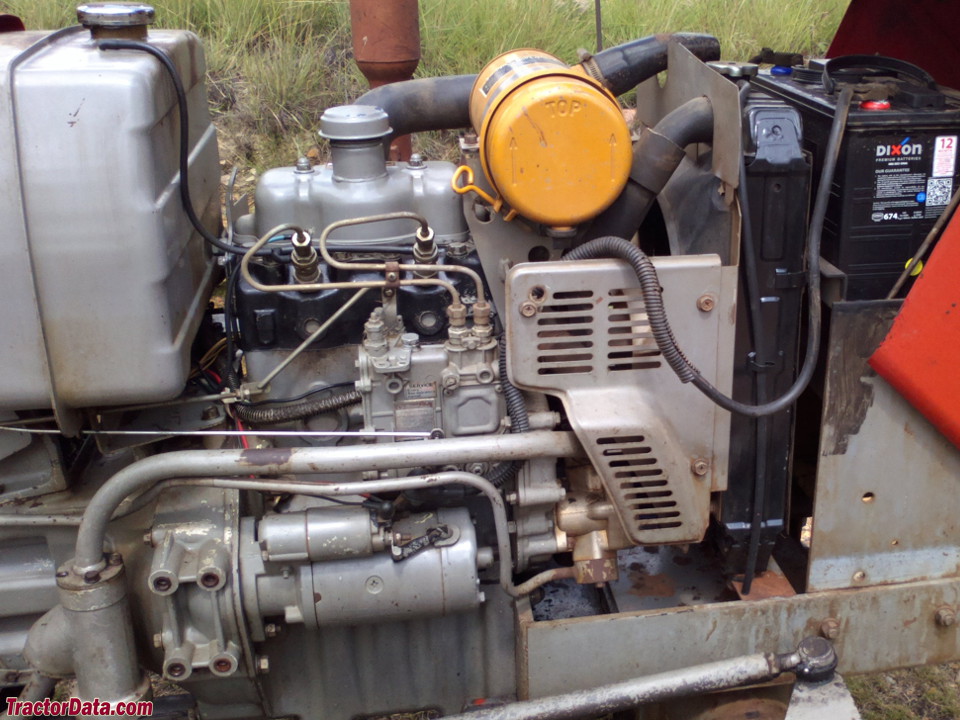

Engine
Toyosha 1.5L 2-cyl dieselReference
Fuel tank26.9 LReference
Engine23.1 kWReference
Drawbar (tested)16.9 kWReference
Toyosha S148Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke97 x 100 mmReference
Power23.1 kWReference
Fuel systemindirect injectionReference
Air cleanerpaper elementReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
Torque91.3 NmReference
Torque RPM1700Reference
Starter volts12Reference
Oil capacity4.0 LReference
Coolant capacity5.0 LReference
Power at rated engine speed19.7 kWReference
Max power16.9 kWReference
Power at rated engine speed19.7 kWReference
Max power16.0 kWReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 3 reverseReference
Clutch215mm mechanical dry discReference
2WD Oil capacity21.0 LReference
4WD Oil capacity27.0 LReference
Four gears (1-4), plus reverse (R), in three ranges (low, medium, and high).Reference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
PTO (tested)19.7 kWReference
Typeopen centerReference
Pressure117.2 barReference
Pump flow20.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Engine RPM540@2327Reference
Front PTOindependentReference
Clutchelectro-magneticReference
Power at rated PTO speed19.0 kWReference
Power at rated PTO speed19.4 kWReference
Dimensions
2WD Wheelbase156 cmReference
4WD Wheelbase159 cmReference
Weight2600 to 3180 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.4/11-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4/11-24Reference
4WD Standard tires (ag)Front: 7.00-16. Rear: 12.4/11-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
2WD Width136 cmReference
4WD Width135 cmReference
2WD Height (steering wheel)136 cmReference
4WD Height (steering wheel)148 cmReference
2WD Front tread103 to 130 cmReference
2WD Front tread114 cmReference
Rear tread103 to 158 cmReference
2WD Shipping1179 kgReference
4WD Shipping1417 kgReference
2WD Operating1254 kgReference
4WD Operating1442 kgReference
Ballasted2035 kgReference
Massey Ferguson 220 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference

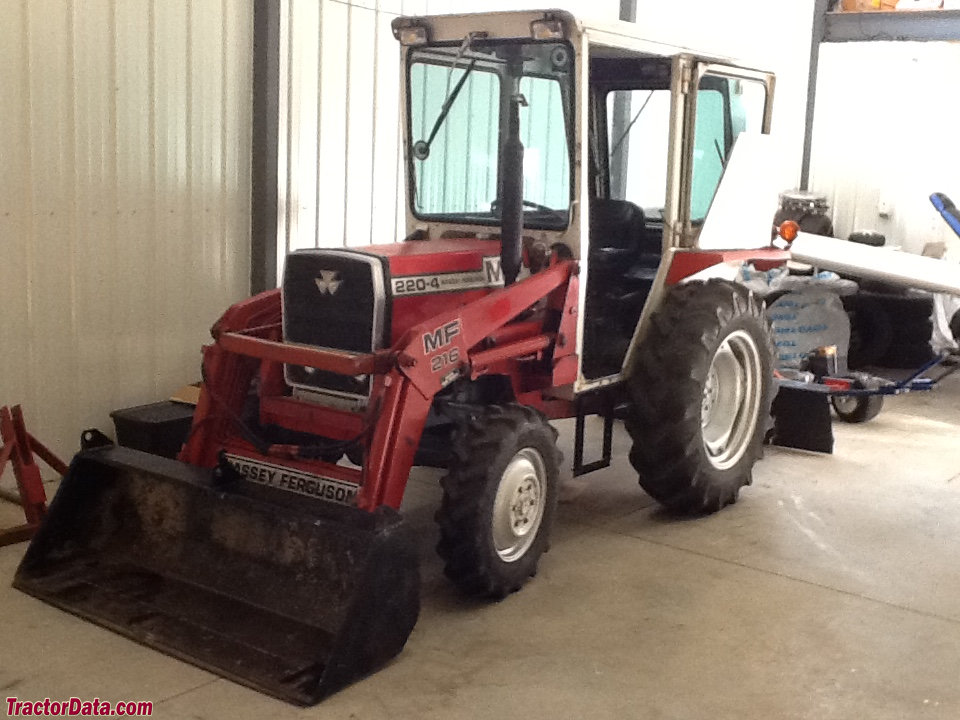

front-end loaderReference
220 Serial Numbers
Location:Serial number plate under the tractor instrument panel.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps15Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
The Woods mid-mount mowers were not capatible with the four-wheel drive 220.Reference
Test results
NTTL 1367: diesel 12-speed 2WDReference
NTTL 1368: diesel 12-speed 4WDReference
Diesel 12-speed 2WDSeptember 15 - 26, 1980Link: Nebraska Tractor Test 1367 fileReference
PTO performanceReference
Fuel use7.9 l/hourReference
Fuel use7.2 l/hourReference
Drawbar performanceReference
Fuel use7.6 l/hourReference
Gear 9 used for power test.Reference
Max pull1490 kgReference
Diesel 12-speed 4WDSeptember 18 - October 7, 1980Link: Nebraska Tractor Test 1368 fileReference
Fuel use6.8 l/hourReference
Max pull1585 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
