Tractor · 1999Unverified

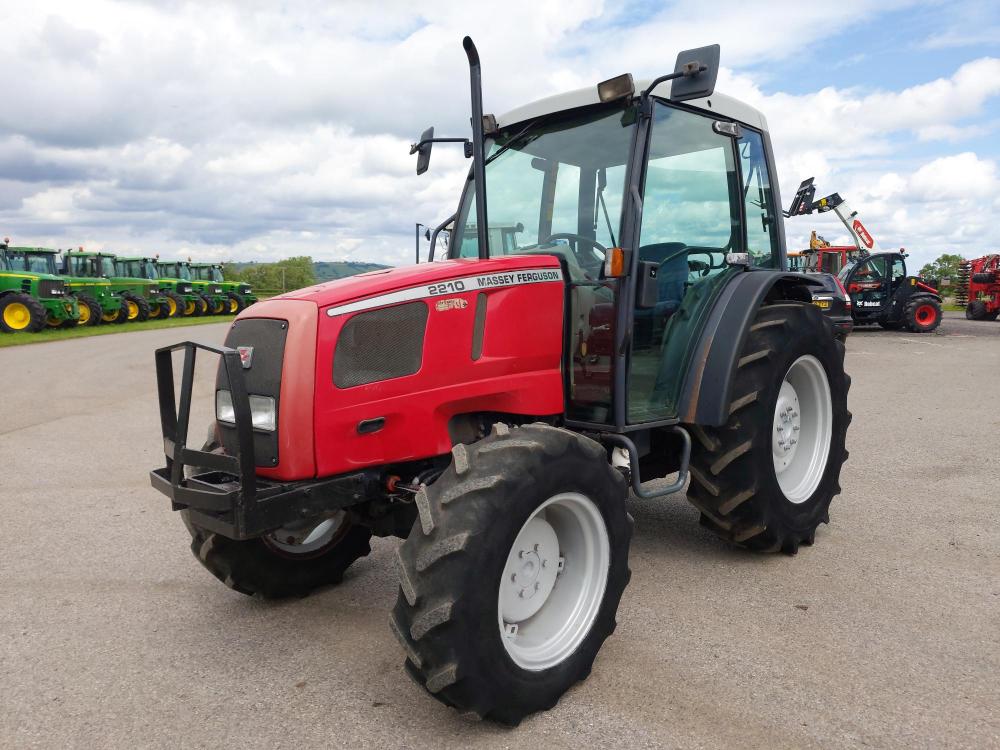

Massey Ferguson 2210
Massey Ferguson 2210 — Utility tractor · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
5401 to 5666 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Original price$33,000Reference
Four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with heat. Air-conditioning optional. Flat platform with Two-post ROPS available.Reference
Variants
Globus 55similar Landini modelReference
Engine
Perkins 2.7L 3-cyl dieselReference
Engine41.0 kWReference
Perkins 903-27Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power41.0 kWReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2300Reference
Starter volts12Reference
Coolant capacity10.0 LReference
Power at rated engine speed35.4 kWReference
Transmission
15-speed sync shuttleReference
30-speed two-speed power shiftReference
Typesync shuttleReference
Gears15 forward and reverseReference
A 30 KPH 12-speed shuttle is standard with two-wheel drive, a 40 KPH 15-speed shuttle is standard with four-wheel drive. Also available with creeper.Reference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears30 forward and reverseReference
The optional Speedshift provides a two-speed power shift to the standard transmision (24 gears with two-wheel drive). Also available with creeper.Reference
PTO & Hydraulics
PTO (claimed)36.5 kWReference
PTO (tested)35.4 kWReference
Hydraulic system35.2 LReference
Capacity35.2 LReference
Valves2Reference
Pump flow29.9 lpmReference
Rear TypeIIReference
Rear lift (at ends)2099 kgReference
Rear lift (at ends)3396 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed34.5 kWReference
Capacities
Fuel53.0 LReference
Fuel85.9 LReference
Dimensions
Wheelbase200 cmReference
Weight5401 to 5666 poundsReference
Front tire11.2R20Reference
Rear tire14.9R28Reference
Ag front11.2R20Reference
Ag rear14.9R28Reference
Lawn/turf front320/70R20Reference
Lawn/turf rear420/70R28Reference
Length394 cmReference
Width175 cmReference
Height (cab)235 cmReference
2WD Weight2449 kgReference
4WD Weight2570 kgReference
Ground clearance44 cmReference
Front tread143 to 169 cmReference
Rear tread134 to 184 cmReference
Massey Ferguson 2210 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 15-speed 4WDMay 17 - 18, 2001Link: Nebraska Tractor Test 1792 fileReference
PTO performanceReference
Fuel use11.7 l/hourReference
Fuel use11.0 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
