Tractor · 1999Unverified

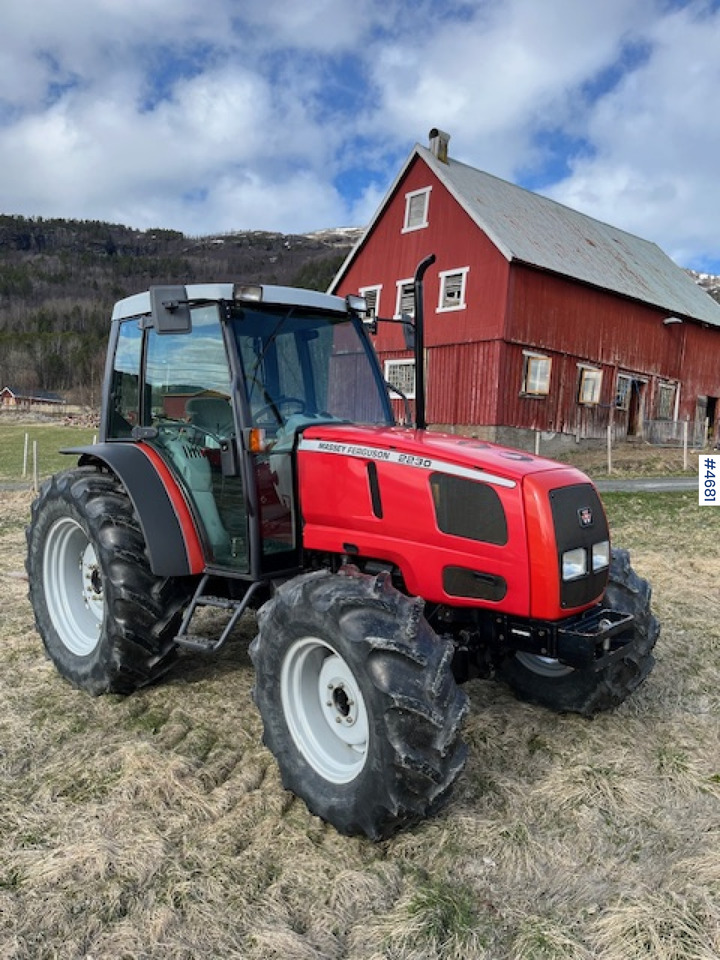

Massey Ferguson 2230
Massey Ferguson 2230 — Compact Utility tractor · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
7165 to 7385 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with heat. Air-conditioning optional. Flat platform with Two-post ROPS available.Reference
Engine
Perkins 4.2L 4-cyl dieselReference
Fuel tank67.0 LReference
Fuel tank99.9 LReference
Engine54.4 kWReference
Perkins 1004-42Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Power54.4 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression18.5:1Reference
Rated RPM2200Reference
Torque235.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
15-speed sync shuttleReference
30-speed two-speed power shiftReference
Typesync shuttleReference
Gears15 forward and reverseReference
Clutch304.8mm mechanical dry discReference
Also available with creeper providing 25 gears in each direction.Reference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears30 forward and reverseReference
The optional Speedshift provides a two-speed power shift to the standard transmission. Also available with creeper range providing 50 gears in each direction.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Valves3Reference
Total flow76.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2100 kgReference
Rear lift3400 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/750 (1.375)Reference
Dimensions
Wheelbase215 cmReference
Weight7165 to 7385 poundsReference
Front tire360/70R20Reference
Rear tire420/70R30Reference
Standard tires (ag)Front: 360/70R20. Rear: 420/70R30Reference
Optional tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
Optional tires (ag)Front: 11.2R24. Rear: 12.4R36Reference
Optional tires (ag)Front: 340/75R20. Rear: 420/70R28Reference
Optional tires (ag)Front: 210/70R20. Rear: 14.9R28Reference
Optional tires (ag)Front: 275/80R18. Rear:Reference
Optional tires (ag)Front: 480/65R24. Rear:Reference
Length402 cmReference
Width197 cmReference
Height (cab)246 cmReference
ROPS Weight3250 kgReference
Cab Weight3349 kgReference
Ground clearance39 cmReference
Front tread159 to 185 cmReference
Rear tread155 to 195 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
