Tractor · 2002Unverified

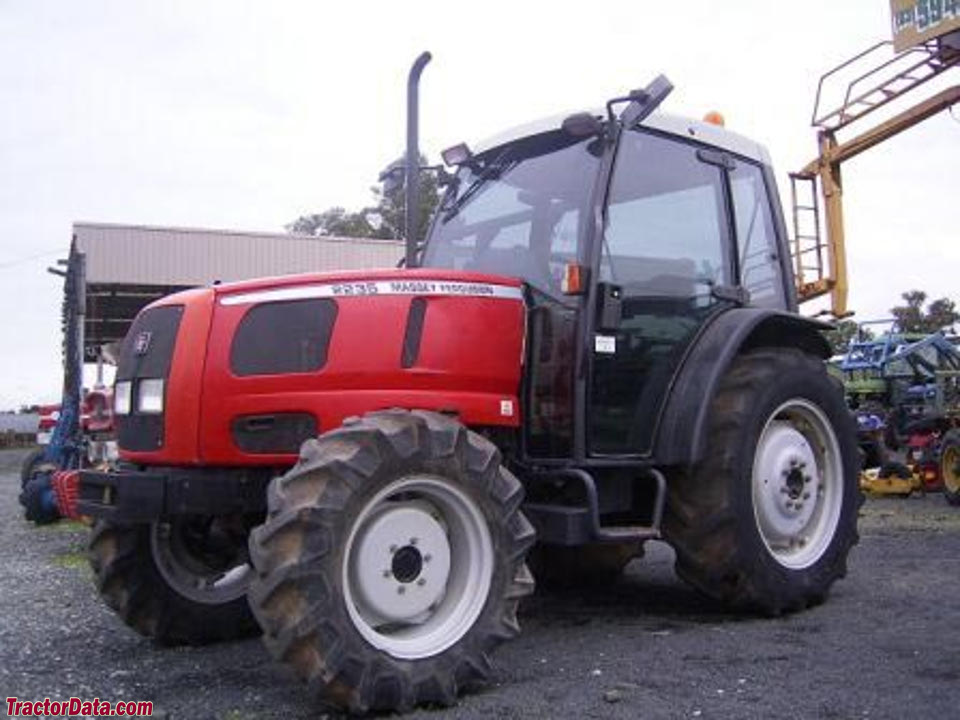

Massey Ferguson 2235

Name: Massey Ferguson 2235
Brand: Massey Ferguson

Massey Ferguson 2235 — Compact Utility tractor · 80 hp. Reference specifications; pending source verification.

The Massey Ferguson 2235 is a tractor rated at approximately 80 hp, a mid-range figure for its class. Produced from 2002 to 2004, it features a 4-cylinder diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. Its operating weight ranges from 6614 to 6834 pounds. The tractor is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Weight

6614 to 6834 pounds

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

80 hp

Recorded weight

3000 kg

Transmissions

15-speed sync shuttle

Production years

2002-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with heat. Air-conditioning optional. Flat platform with Two-post ROPS available.Reference

Engine

Perkins 4.2L 4-cyl dieselReference

Fuel tank67.0 LReference

Fuel tank99.9 LReference

Engine59.7 kWReference

Perkins 1004-42Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke103 x 127 mmReference

Power59.7 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

15-speed sync shuttleReference

30-speed two-speed power shiftReference

Typesync shuttleReference

Gears15 forward and reverseReference

Clutch304.8mm cerametallic dry discReference

A 30 KPH 12-speed shuttle is standard with two-wheel drive, a 40 KPH 15-speed shuttle is standard with four-wheel drive. Also available with creeper.Reference

TransmissionSpeedshiftReference

Typetwo-speed power shiftReference

Gears30 forward and reverseReference

The optional Speedshift provides a two-speed power shift to the standard transmission (24 gears with two-wheel drive). Also available with creeper.Reference

PTO & Hydraulics

Pressure180.0 barReference

Pump flow54.1 lpmReference

Steering flow29.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2100 kgReference

Rear lift3400 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

4WD Wheelbase215 cmReference

Weight6614 to 6834 poundsReference

Lawn/turf front300/70R20Reference

Lawn/turf rear480/70R24Reference

Length402 cmReference

Width197 cmReference

Height (cab)243 cmReference

2WD Weight3000 kgReference

4WD Weight3099 kgReference

4WD Ground clearance39 cmReference

Front tread159 to 184 cmReference

Rear tread155 to 196 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
