Tractor · 1989Unverified

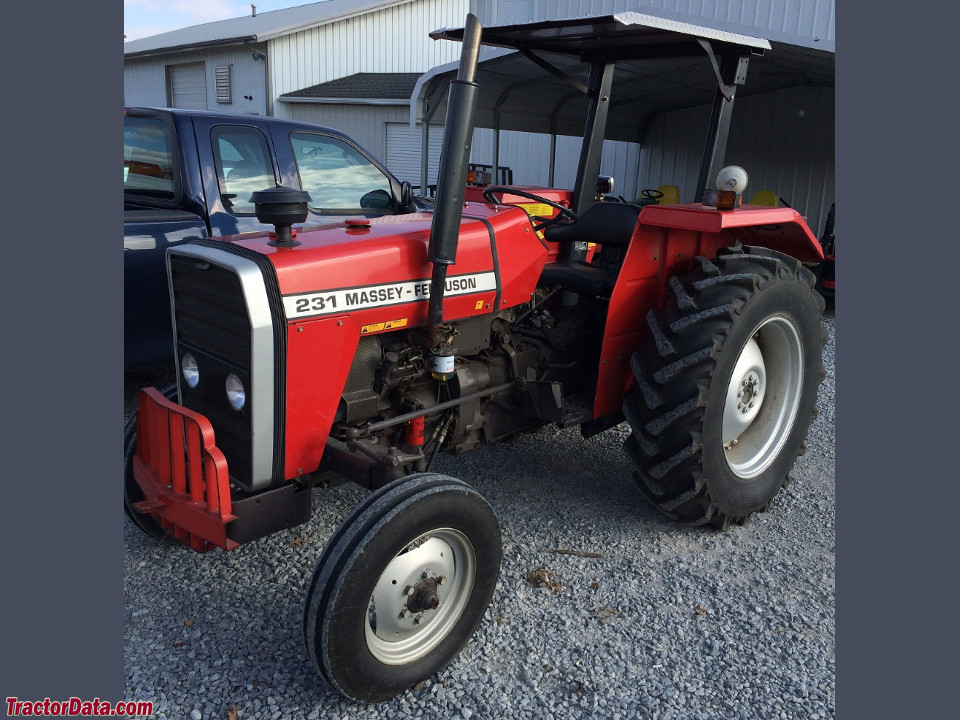

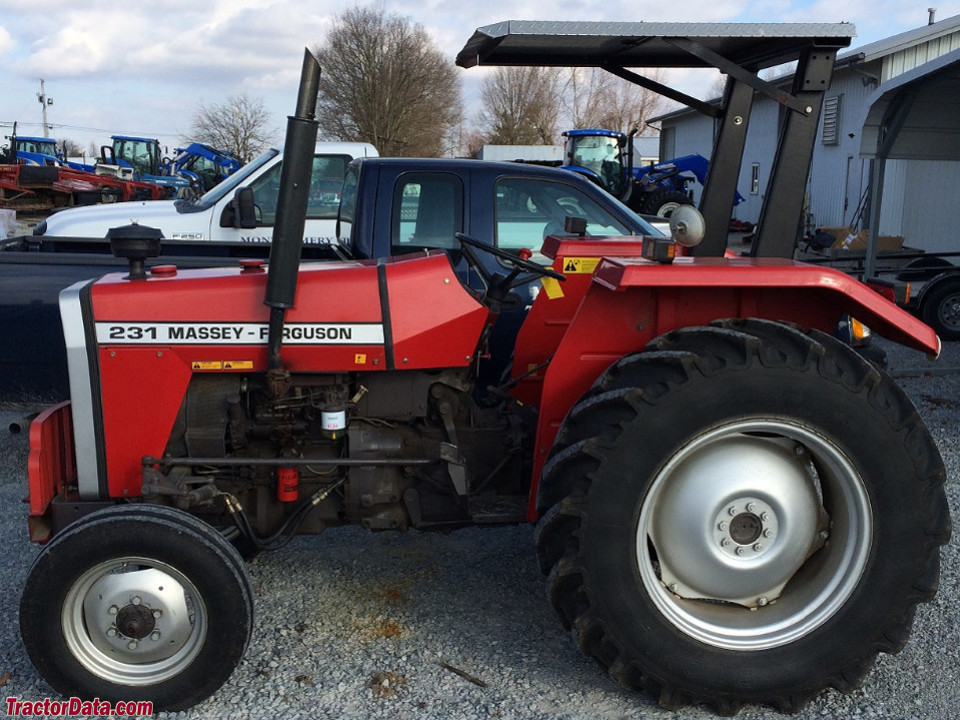

Massey Ferguson 231
Massey Ferguson 231 — 200 One Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1843 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Original price$13,000 (1999)Reference
Two-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Two-post folding ROPS.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Engine28.3 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power28.3 kWReference
Air cleaneroil bathReference
Rated RPM2000Reference
Starter volts12Reference
Coolant capacity10.6 LReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Tractor must be stopped, and clutch used, to shift gears.Reference
PTO & Hydraulics
PTO (claimed)25.4 kWReference
Hydraulic system34.8 LReference
TypeopenReference
Capacity34.8 LReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540Reference
Capacities
Fuel57.9 LReference
Dimensions
Wheelbase193 cmReference
Weight1843 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length325 cmReference
Width193 cmReference
Height (ROPS)222 cmReference
Massey Ferguson 231 attachments
front-end loaderReference
231 Serial Numbers
Location:Right side of instrument panelReference
1989P17001Reference
1990Q01001Reference
1991S01001Reference
1992A01001Reference
1993B01001Reference
1994C01001Reference
1995D01001Reference
1996E01001Reference
1997F01001Reference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
