Tractor · 1975Unverified

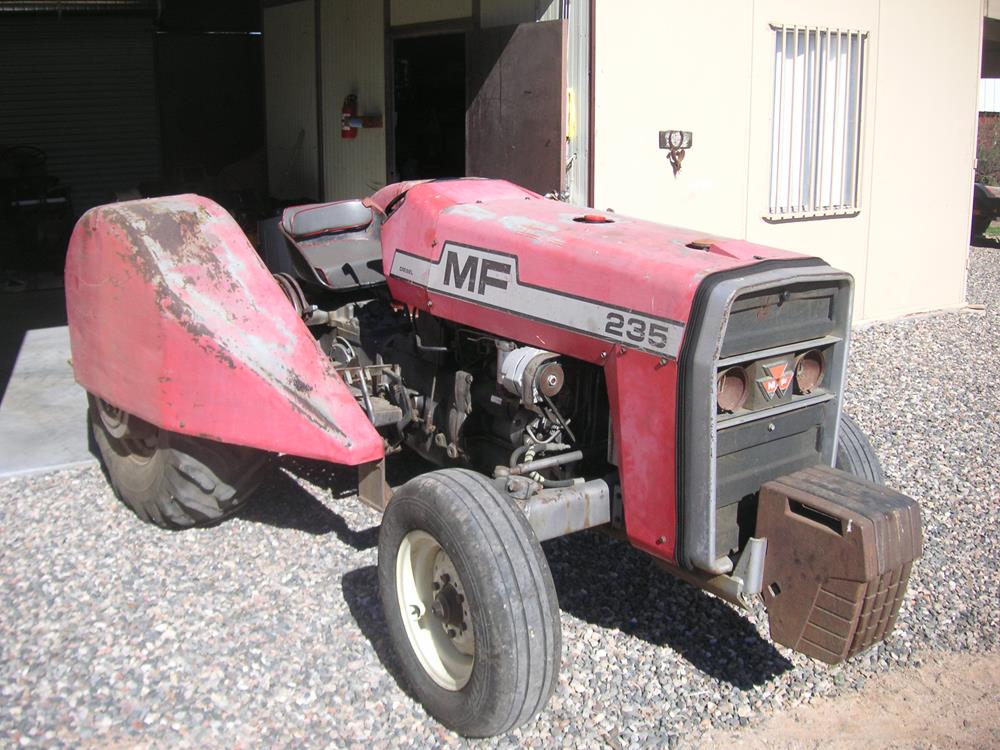

Massey Ferguson 235 Orchard

Name: Massey Ferguson 235 Orchard
Brand: Massey Ferguson

Massey Ferguson 235 Orchard · 42 hp. Reference specifications; pending source verification.

The Massey Ferguson 235 Orchard is a tractor with a rated power of 42 hp, positioning it at the lighter end of its class. Manufactured between 1975 and 1976, this model features a 3-cylinder diesel liquid-cooled engine paired with a hydrostatic transmission. It is suitable for operations covering up to 200 acres. Specifications for this model are provided in both imperial and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

42 hp

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

42 hp

Transmissions

6-speed manual shuttle

Production years

1975-1976

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Differential lockpedal-activatedReference

Steeringhydrostatic powerReference

Differential mechanical disc brakesReference

Open operator station.Reference

Variants

standardrow-cropReference

vineyardnarrow low-profileReference

Engine

Perkins 2.5L 3-cyl dieselReference

Drawbar (claimed)26.1 kWReference

Perkins AD3.152Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke91 x 127 mmReference

Air cleanerdual dry elementReference

Compression16.5:1Reference

Rated RPM2250Reference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity9.9 LReference

Transmission

6-speed manual shuttleReference

8-speedReference

Typemanual shuttleReference

Gears6 forward and reverseReference

Gears8 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)31.3 kWReference

Hydraulic system30.3 LReference

Capacity30.3 LReference

Pressure158.6 barReference

Valves0 to 2Reference

Pump flow37.9 lpmReference

Pump flow17.0 lpmReference

Total flow73.8 lpmReference

Steering flow18.9 lpmReference

Rear TypeIReference

Rear PTOlive (two-stage clutch)Reference

Rear PTOindependent (optional)Reference

Rear PTO Type540Reference

Capacities

Fuel53.0 LReference

Dimensions

Wheelbase195 cmReference

Length293 cmReference

Width196 cmReference

Height (steering wheel)129 cmReference

Front tread140 cmReference

Rear tread147 cmReference

Electrical

Charging systemalternatorReference

Charging amps37Reference

Battery volts12Reference

Speeds

With 18.4-16.1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
