Tractor · 1975Unverified

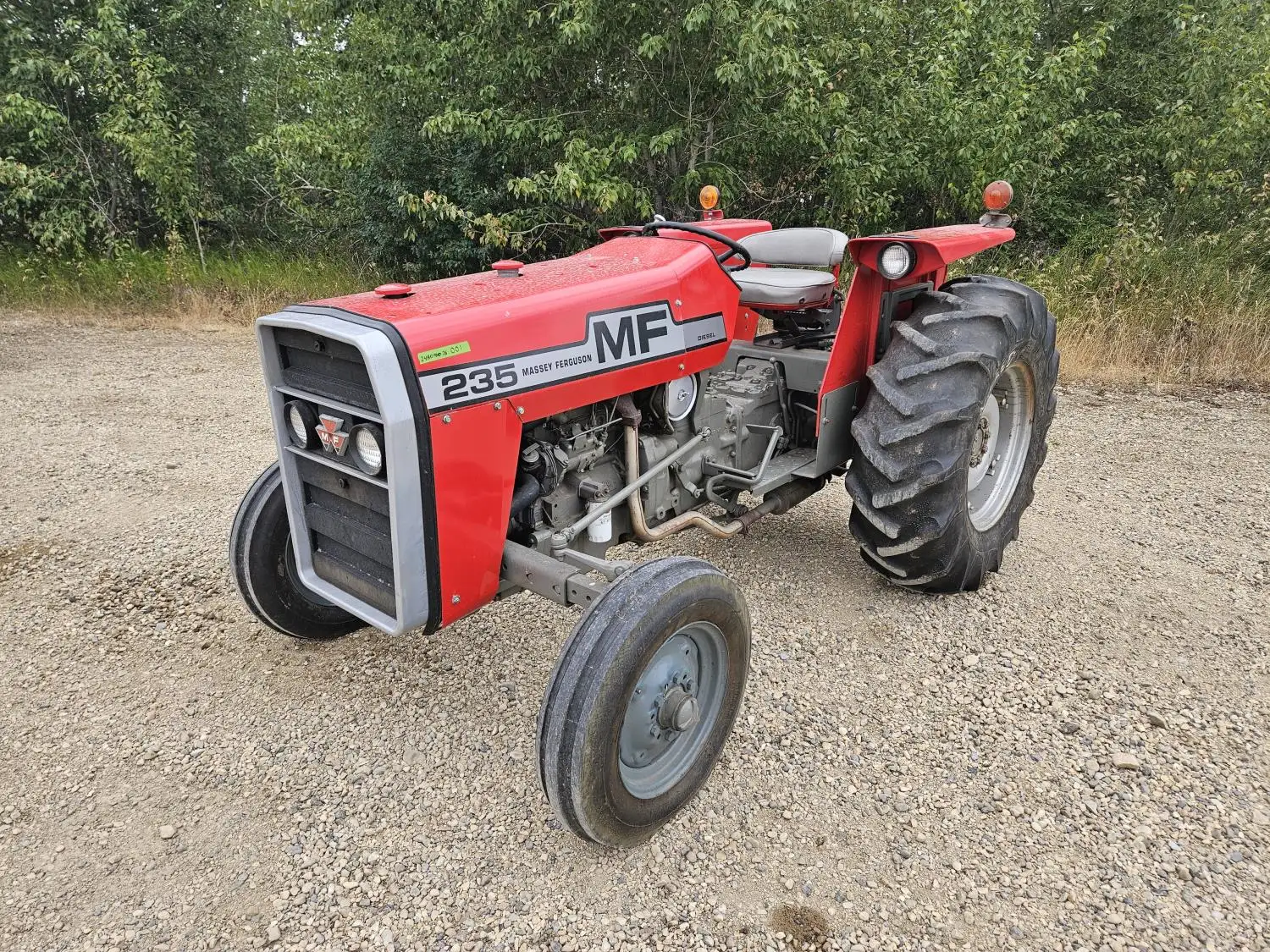

Massey Ferguson 235 Vineyard
Massey Ferguson 235 Vineyard · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Two-wheel driveReference
Differential lockpedal-activatedReference
Steeringpower assistReference
Differential mechanical expanding shoe brakesReference
Open operator station.Reference
Variants
standardrow-cropReference
orchardlow-profileReference
Engine
Perkins 2.5L 3-cyl dieselReference
Drawbar (claimed)26.1 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Air cleanerdual dry elementReference
Compression16.5:1Reference
Rated RPM2250Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity9.9 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Hydraulic system30.3 LReference
Capacity30.3 LReference
Pressure158.6 barReference
Pump flow17.0 lpmReference
Total flow36.0 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear PTOlive (two-stage clutch)Reference
Rear PTOindependent (optional)Reference
Rear PTO Type540Reference
Capacities
Fuel53.0 LReference
Dimensions
Wheelbase189 cmReference
Length288 cmReference
Width133 cmReference
Height (steering wheel)141 cmReference
Front tread111 to 142 cmReference
Rear tread101 to 121 cmReference
Electrical
Charging systemalternatorReference
Charging amps37Reference
Battery volts12Reference
Speeds
With 12.4-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
