Tractor · 1963Unverified

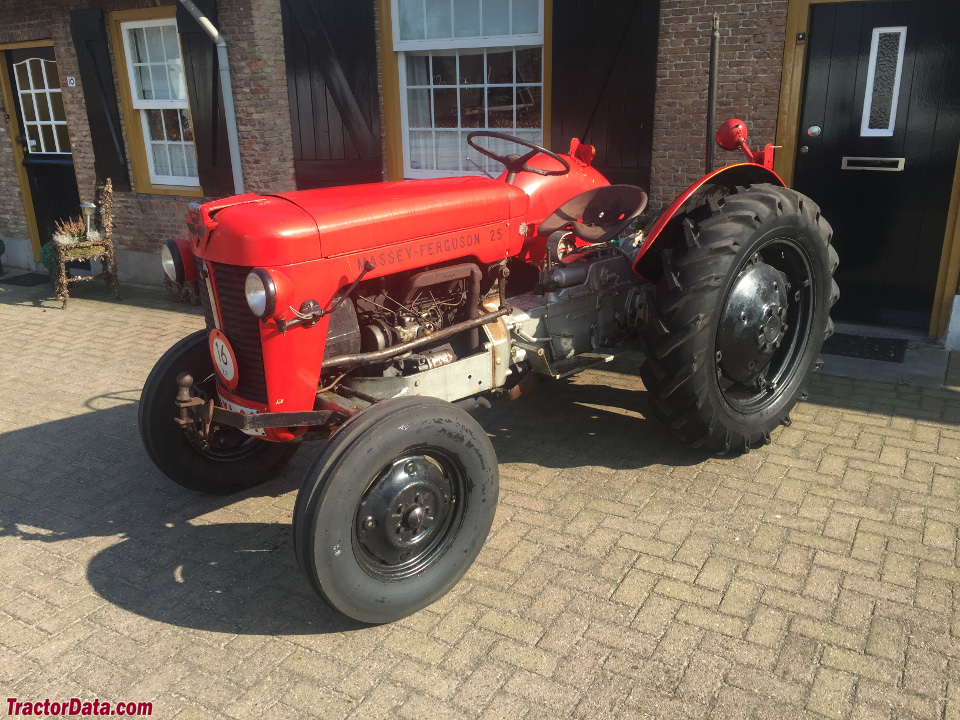

Massey Ferguson 25

Massey Ferguson 25 — Utility tractor · 24 hp. Reference specifications; pending source verification.

The Massey Ferguson 25 is a compact tractor model with a rated output of 24 hp. Produced from 1963 to 1965, it features a 4-cylinder diesel liquid-cooled engine powering two-wheel drive through an 8-speed gearbox. The tractor weighs between 2600 and 3115 pounds, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
24 hp
Max power
15.0 kW
Weight
2600 to 3115 pounds

Catalogue coverage

Variants represented
2
Richest spec table
68 rows
Recorded power
24 hp
Recorded weight
1412 kg
Transmissions
8-speed gear
Production years
1963-1965
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
Original price was $2,545 in 1965Reference
The Massey Ferguson 825 is the designation for the version of the model 25 sold in France.Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference

Engine

Perkins 1.8L 4-cyl dieselReference
Fuel tank45.4 LReference
Engine18.6 kWReference
Plows2Reference
Drawbar (tested)15.0 kWReference
Perkins A4-107Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke79 x 89 mmReference
Power18.6 kWReference
Air cleaneroil bathReference
Compression22.5:1Reference
Rated RPM2000Reference
Torque101.7 NmReference
Torque RPM1200Reference
Starter volts12Reference
Power at rated engine speed18.2 kWReference
Max power15.0 kWReference

Transmission

8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference

PTO & Hydraulics

PTO (claimed)17.9 kWReference
PTO (tested)18.2 kWReference
Typeopen centerReference
Pressure137.9 barReference
Rear TypeIReference
Rear PTOliveReference
Clutch228.6mm dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1890Reference
Power at rated PTO speed17.7 kWReference

Dimensions

Wheelbase182 cmReference
Weight2600 to 3115 poundsReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Height (steering wheel)142 cmReference
Height (hood)127 cmReference
Weight1412 kgReference
Shipping weight1179 kgReference
Clearance (front axle)50 cmReference
Clearance (rear axle)48 cmReference
Front tread121 to 182 cmReference
Rear tread121 to 193 cmReference

25 Serial Numbers

Location:Serial number plate on tractor's dashboard.Reference

Test results

Diesel 8-speed 2WDOctober 11 - 16, 1963Link: Nebraska Tractor Test 854 fileReference
PTO performanceReference
Fuel use6.4 l/hourReference
Fuel use6.1 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Max pull1441 kgReference
Gear 3 used for pull test.Reference

Speeds

With 10x28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
