Tractor · 1983Unverified

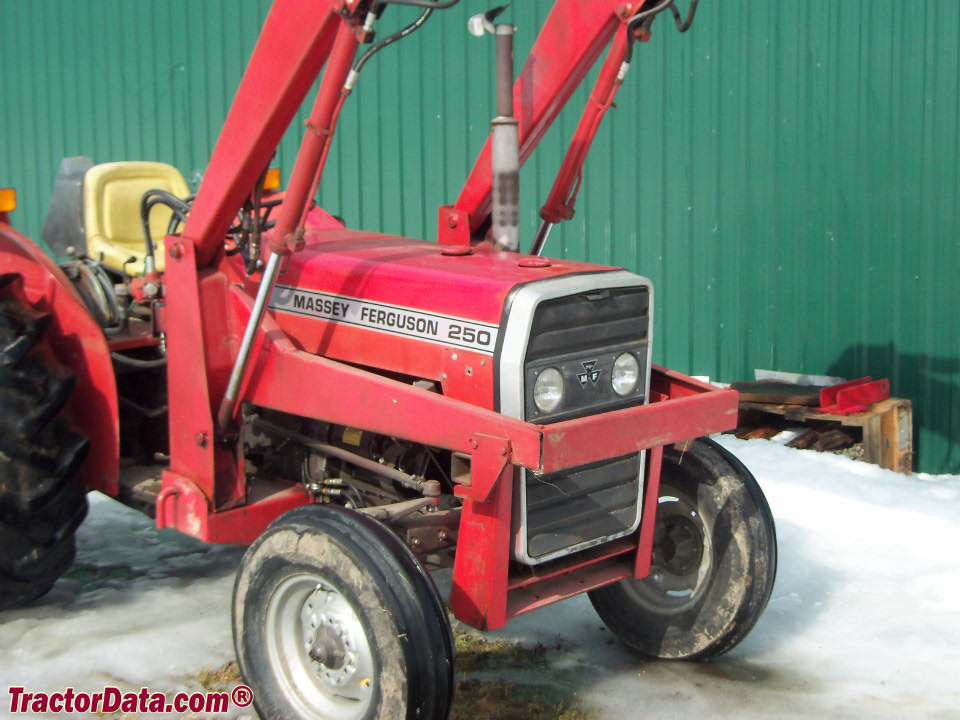

Massey Ferguson 250
Massey Ferguson 250 · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Max power
25.9 kW
Weight
2079 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Built in Coventry, EnglandReference
Original price$15,800 (1986)Reference
Two-wheel driveReference
Steeringpower assistReference
Differential mechanical wet disc brakesReference
ROPS canopy optional.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank48.1 LReference
Drawbar (tested)25.9 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Air cleanerdual dry elementReference
Pre-heatingether (optional)Reference
Pre-heatingblock heater (optional)Reference
Compression18.5:1Reference
Rated RPM2250Reference
Starter volts12Reference
Power at rated engine speed30.5 kWReference
Max power25.9 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)30.5 kWReference
TypeopenReference
Valves1 to 3Reference
Total flow53.0 lpmReference
Rear TypeIReference
Rear PTOliveReference
Rear PTO Type540Reference
Power at rated PTO speed27.5 kWReference
Dimensions
Wheelbase189 cmReference
Weight2079 kgReference
Front tire6.50-16Reference
Rear tire13.6-28Reference
Ag front6.50-16Reference
Ag rear13.6-28Reference
Length336 cmReference
Width187 cmReference
Operating weight2079 kgReference
Ballasted weight2612 kgReference
Front tread132 to 182 cmReference
Rear tread142 to 213 cmReference
250 Serial Numbers
Location:Below instrument consoleReference
1983621838Reference
1984624021Reference
1985627250Reference
1986629926Reference
1987632601Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps32Reference
Battery volts12Reference
Test results
Diesel 8-speed 2WDMay 10 - 29, 1984Link: Nebraska Tractor Test 1520 fileReference
PTO performanceReference
Fuel use10.2 l/hourReference
Fuel use8.7 l/hourReference
Drawbar performanceReference
Gear 1H used for power test.Reference
Max pull1949 kgReference
Gear 2L used for pull test.Reference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
