Tractor · 2001Unverified

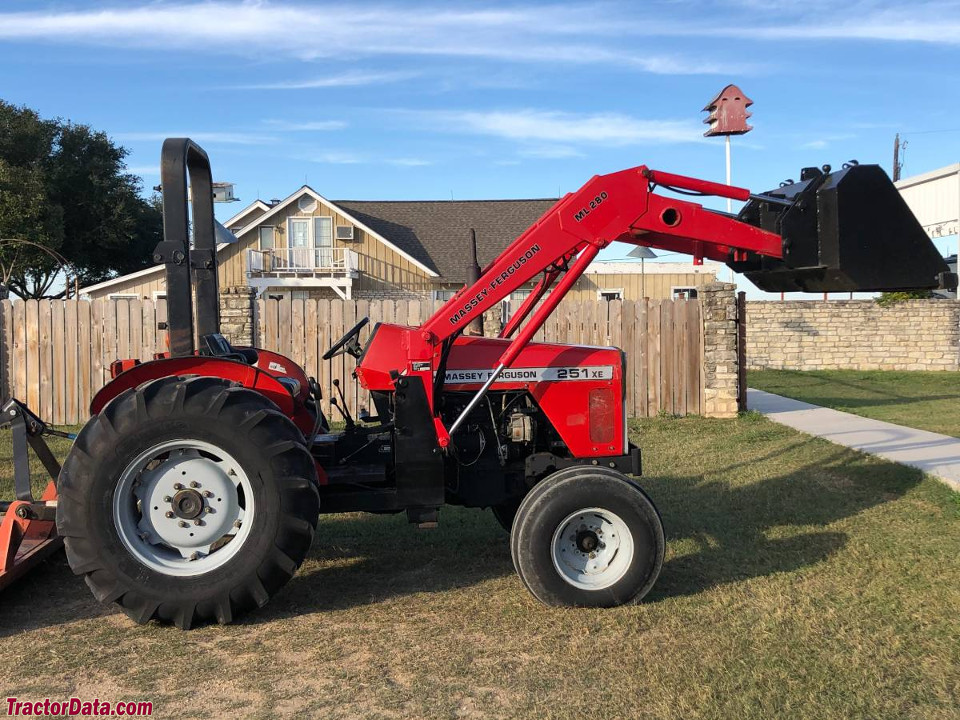

Massey Ferguson 251XE
Massey Ferguson 251XE — Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
4738 to 5238 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Perkins 2.7L 3-cyl dieselReference
Engine35.8 kWReference
Perkins 903.27Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke94 x 127 mmReference
Power35.8 kWReference
Air cleanerdual dryReference
Pre-heatingthermostartReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity9.4 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Hydraulic system42.0 LReference
Typeopen centerReference
Capacity42.0 LReference
Pressure175.1 barReference
Valves2Reference
Pump flow36.0 lpmReference
Rear TypeIReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1099 kgReference
Rear PTOliveReference
Clutchdual-stage dryReference
Rear PTO Type540Reference
Engine RPM540@1908Reference
Capacities
Fuel57.9 LReference
Dimensions
2WD Wheelbase198 cmReference
4WD Wheelbase199 cmReference
Weight4738 to 5238 poundsReference
Front tire6.00x16Reference
Rear tire14.9x24Reference
Ag front6.00x16Reference
Ag rear14.9x24Reference
2WD Length337 cmReference
4WD Length342 cmReference
Width182 cmReference
Height (ROPS)245 cmReference
Height (Folded ROPS)236 cmReference
2WD Shipping weight2149 kgReference
4WD Shipping weight2375 kgReference
Ground clearance26 cmReference
2WD Front tread127 to 183 cmReference
4WD Front tread139 to 147 cmReference
Rear tread144 to 172 cmReference
Massey Ferguson 251XE attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery CCA750Reference
Battery volts12Reference
Attachment overview
Massey-Ferguson 1040 loaderReference
Massey Ferguson 1050 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
