Tractor · 2016Unverified

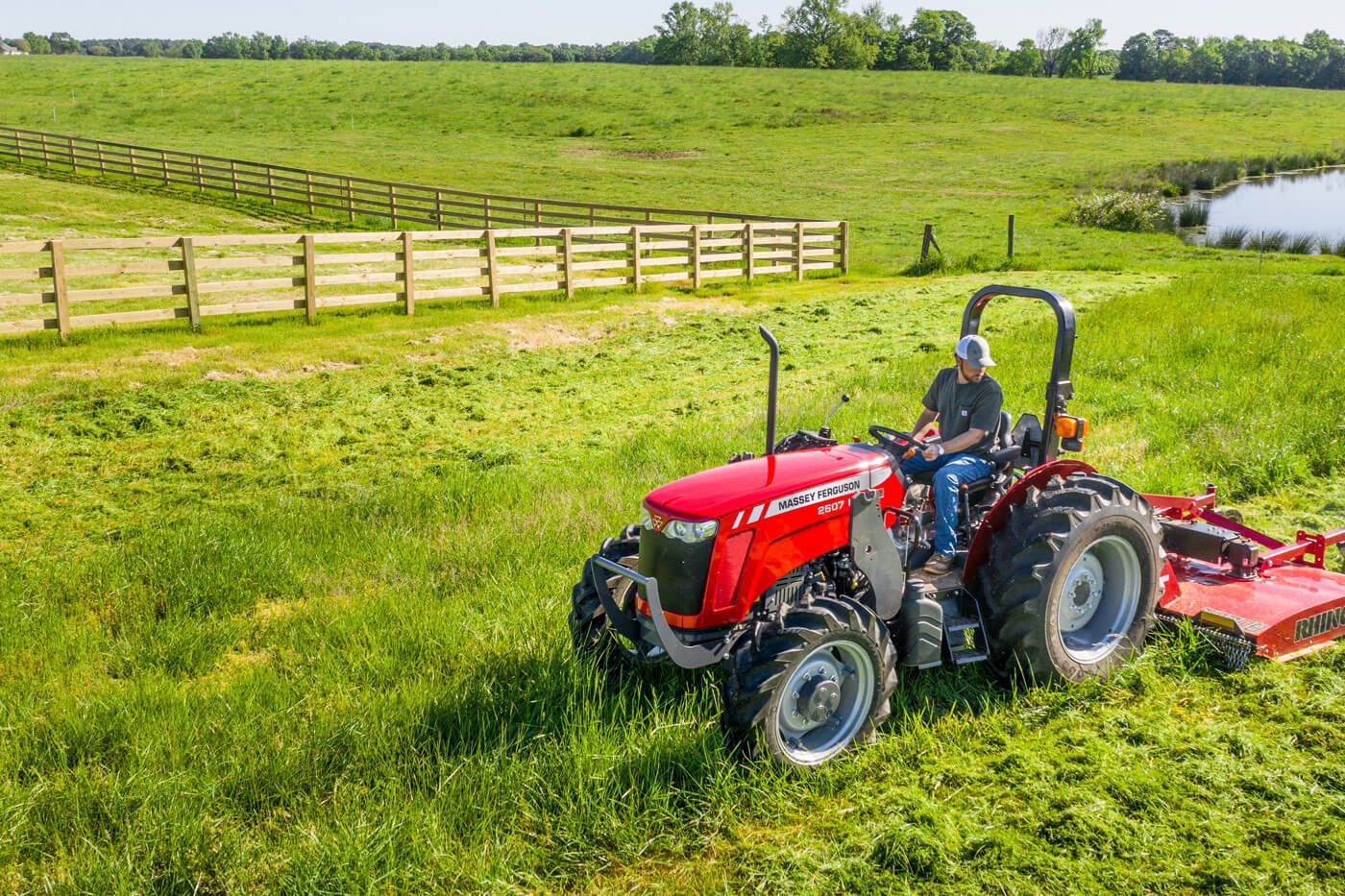

Massey Ferguson 2604H
Massey Ferguson 2604H — Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
4597 to 4927 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Original price was $18,535 in 2017Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Drum brakesReference
Two-post folding ROPS.Reference
Engine
Simpson 2.6L 3-cyl dieselReference
Fuel tank54.9 LReference
Engine (gross)33.6 kWReference
SimpsonReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.6 LReference
Bore/Stroke93 x 127 mmReference
EmissionsTier IVReference
Emission controlexhaust gas recirculation with diesel oxidation catalyst (DOC) (EGR)Reference
Power (gross)33.6 kWReference
Fuel systemelectronic high-pressure common railReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Typeopen centerReference
Valves1Reference
Pump flow40.1 lpmReference
Total flow59.4 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)999 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase204 cmReference
4WD Wheelbase207 cmReference
Weight4597 to 4927 poundsReference
Front tire6x16Reference
2WD Rear tire12.4x28Reference
2WD Standard tires (ag)Front: 6x16. Rear: 12.4x28Reference
4WD Standard tires (ag)Front: 10.5/80-18. Rear: 12.4x28Reference
2WD Optional tires (ag)Front: 7.5x16. Rear: 13.6x28Reference
2WD Length350 cmReference
4WD Length353 cmReference
Width164 cmReference
Height230 cmReference
2WD Weight2085 kgReference
4WD Weight2234 kgReference
Massey Ferguson 2604H attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Massey Ferguson L135E loaderReference
Massey Ferguson 911X loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
