Tractor · 2007Unverified
Massey Ferguson 2605

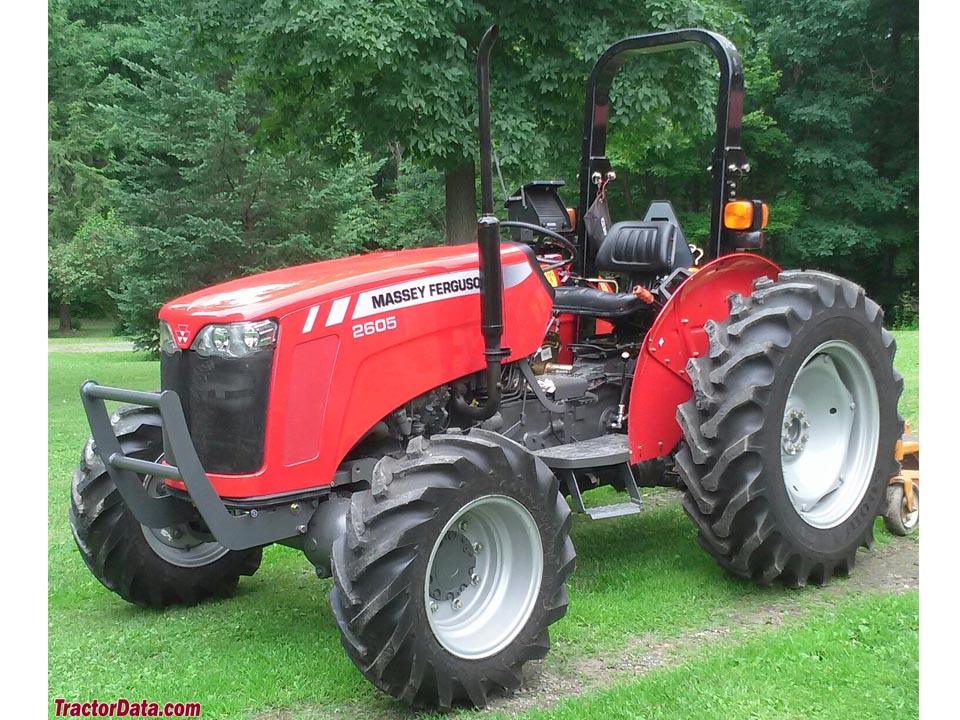

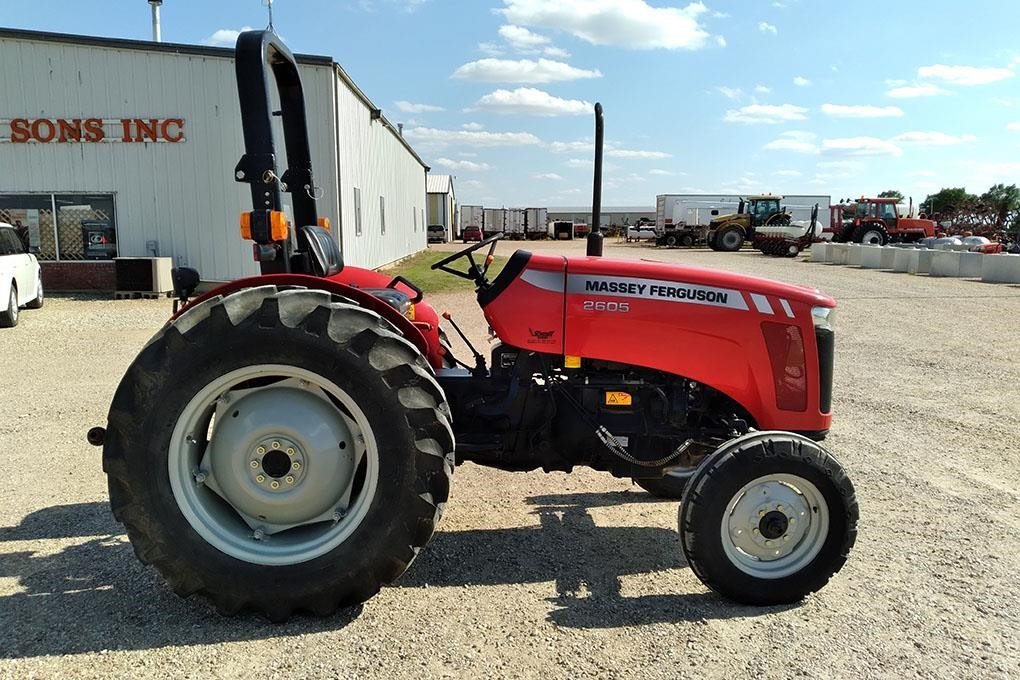

Massey Ferguson 2605 — Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
4080 to 4530 pounds
Hover a source tag to verify
Overview
DistributorMassey Ferguson (a part of AGCO)Reference
ManufacturerTAFEReference
Utility tractorReference
Original price was $13,166 in 2009Reference
Two- or four-wheel driveReference
Final drivesdirect driveReference
Power steeringReference
Mechanical dry drum brakesReference
Open platform with two-post folding ROPS.Reference
Engine
Simpson 2.5L 3-cyl dieselReference
Fuel tank42.0 LReference
Engine (gross)28.3 kWReference
Simpson S325.3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
EmissionsTier IIReference
Power (gross)28.3 kWReference
Fuel systemdirect injectionReference
Pre-heatingthermostartReference
Compression18.5:1Reference
Rated RPM2000Reference
Torque147.8 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
TransmissionCenterShiftReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Four gears, plus reverse, with high and low rangesReference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
PTO (claimed)22.4 kWReference
Typeopen centerReference
Valves0 to 2Reference
Pump flow15.9 lpmReference
Pump flow37.1 lpmReference
Total flow79.1 lpmReference
Steering flow26.1 lpmReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift (at ends)1449 kgReference
Rear Armsextendable lower links optionalReference
Rear PTOliveReference
Rear PTOindependentReference
Clutchdual stage dry (live)Reference
Clutchelectro-hydraulic wet disc (independent)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1790Reference
Dimensions
2WD Wheelbase193 cmReference
4WD Wheelbase195 cmReference
Weight4080 to 4530 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 10.5/80-18. Rear: 13.6-28Reference
Length327 cmReference
Length330 cmReference
Height (ROPS)233 cmReference
2WD Shipping weight1850 kgReference
4WD Shipping weight2054 kgReference
Clearance (drawbar)25 cmReference
Massey Ferguson 2605 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery CCA622Reference
Battery volts12Reference
Attachment overview
Massey Ferguson L200 (2WD) loaderReference
Massey Ferguson L210 (2WD) loaderReference

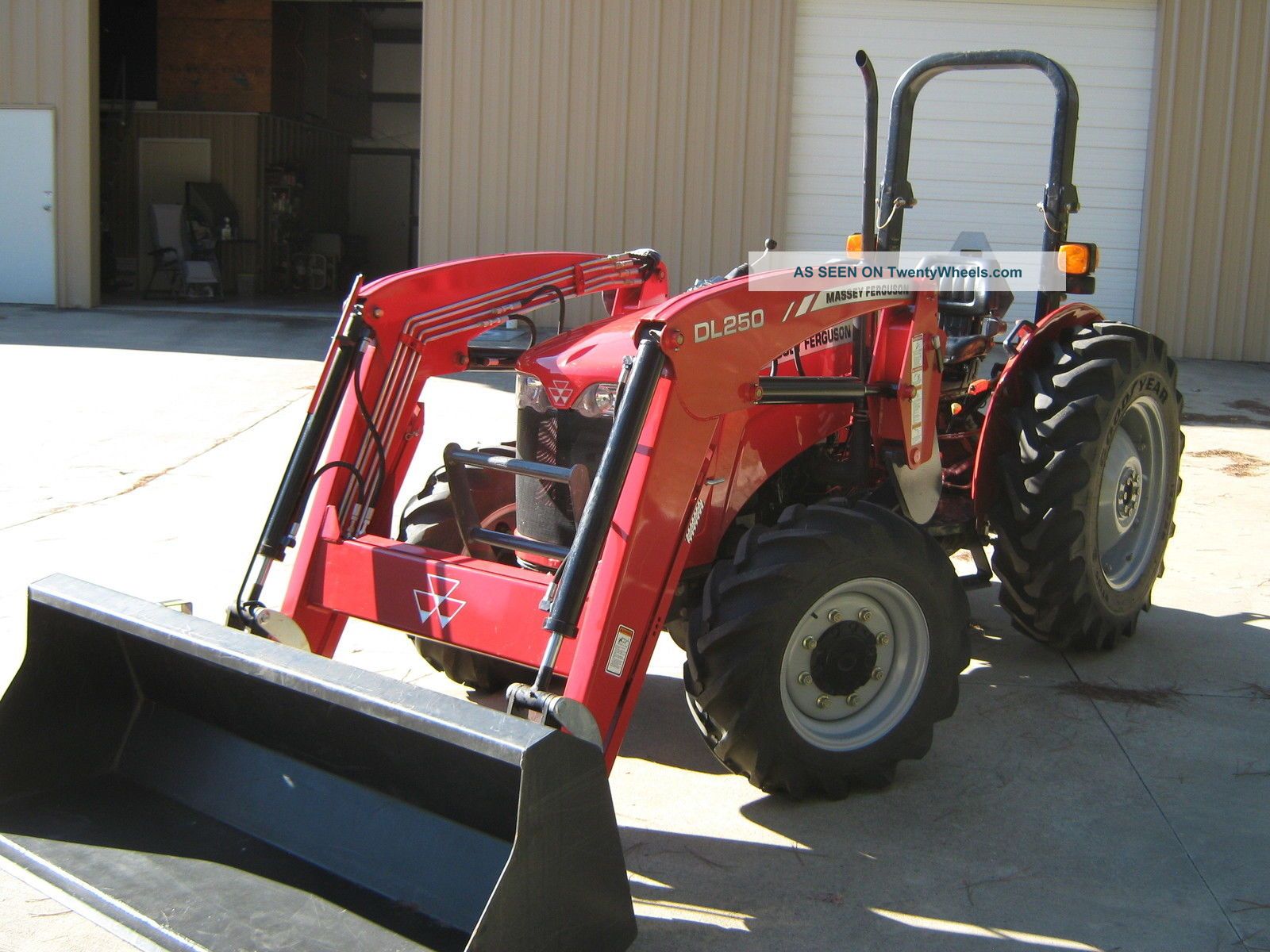

Massey Ferguson DL250 (4WD) loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
